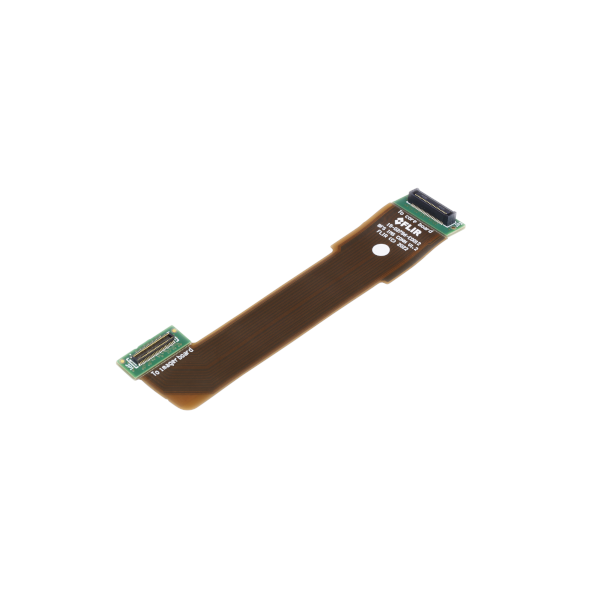

The ACC-01-2406 is an 8 cm flexible printed circuit (FPC) cable designed to increase the distance between the image sensor board and FPGA board, enhancing the modularity of Blackfly S board-level cameras. Engineered for precise, reliable performance, this TF38-compatible cable ensures stable data transmission between critical components. Its compact and flexible design makes it perfect for tight spaces, while maintaining optimal system performance.
Key Specs
- Supported Products
- Connector
- Length
- Compatible with Blackfly S Board-level cameras
- TF38 compatible connector
- 8 cm for optimized flexibility in compact setups
Installation Instructions
The Blackfly S Board-level camera comes with the FPGA board and image sensor board attached.
1. Grasp edges firmly to pull the two boards apart. Avoid twisting or bending.

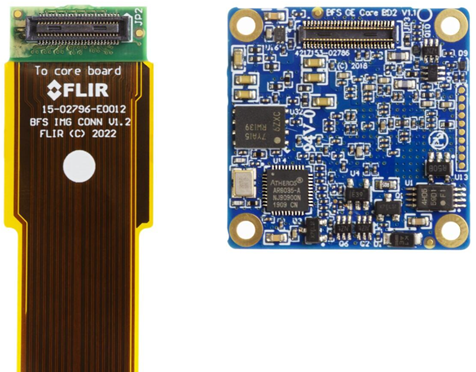

2. Connect the To Core Board end (the straight end) of the cable to the camera FPGA board:

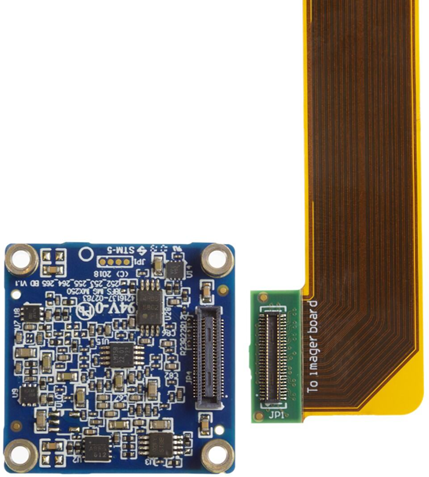

3. Connect the To Imager Board end (the bent end) of the cable to the camera image sensor board:

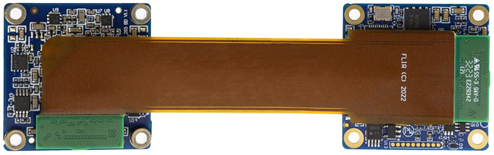

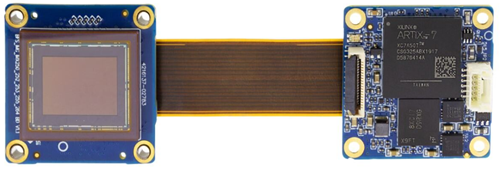

Correct orientation as shown:
Image Sensor Board | FPGA Board |
Specifications
- Connector Type
- TF38 compatible outline
- Operating Temperature
- 0° to 50°C
- Part Number
- ACC-01-2406
Resources & Support
ACC-01-2406 Installation Instructions
