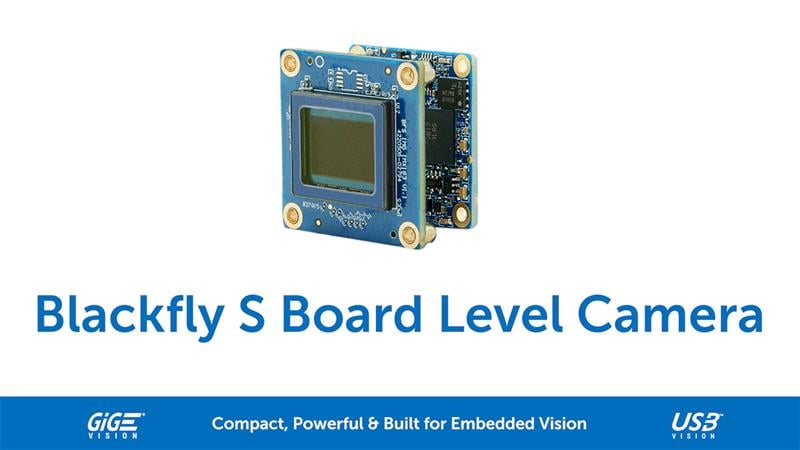

Blackfly S Board Level
The FLIR Blackfly S Board Level variants are high performance, machine vision, area scan cameras designed for embedding into tight spaces. Unlike many board level cameras, it boasts a rich feature set applied to the latest CMOS sensors; the same feature set as the cased version. It is ready for integration with proven compatibility with popular SBCs and SOMs. The Blackfly S board level models enable OEMs to develop smaller, lighter, and lower cost solutions with embedded system connectivity and rich features.
The Blackfly S currently has a lead time of four weeks or less. Get the cameras you need – when you need them.
Designed for Integration in Small Spaces
These models are ideal for mobile, handheld and desktop device integration with their 29 x 29 x 12 mm board level footprint, USB3 or GigE across FPC connection with latching connector, and low profile JST GPIO connector, and no fixed lens mount.
High Performance Imaging
It is rare for board level cameras to integrate the most advanced CMOS sensors and come with a full feature set. The Blackfly S board level variants integrate the latest Pregius global shutter CMOS image sensors for distortion free, high dynamic range image capture. They have the same rich feature set as the cased variants allowing both automatic and precise manual control over image capture and on-camera pre-processing.
Embedded Ecosystem Support
Ideal of embedded systems, the entire Blackfly S camera family provides proven compatibility with popular SBCs and Operating Systems including desktop Windows and Linux on ARM, x64 and x86.
Exposed Sensor: Design & Use Cases
The sensor in these models is open to the camera's electronics, offering greater design flexibility and cost-effectiveness for embedded and compact vision applications. However, these cameras may not be ideal for applications requiring high optical clarity, particularly under magnification or when using collimated light sources.
See Cleaning the imaging surface of your camera for guidance on what to do if dirt or dust particles are introduced to the sensor package window.
Model Finder
Results:
| Product | Interface | MP | FPS | Sensor | Spectrum | Status | Compare | Buy |
|---|---|---|---|---|---|---|---|---|
BFS Board-level GigE: 1.6 MP, ColorBFS-GE-16S2C-BD2 |
1 GigE | 1.6 | 78 | Sony IMX273 | Color | In Production Request Info |
|
|
BFS Board-level GigE: 1.6 MP, MonoBFS-GE-16S2M-BD2 |
1 GigE | 1.6 | 78 | Sony IMX273 | Mono | In Production Request Info |
|
|
BFS Board-level GigE: 5 MP, ColorBFS-GE-50S5C-BD2 |
1 GigE | 5 | 24 | Sony IMX264 | Color | In Production Request Info |
|
|
BFS Board-level GigE: 5 MP, MonoBFS-GE-50S5M-BD2 |
1 GigE | 5 | 24 | Sony IMX264 | Mono | In Production Request Info |
|
|
BFS Board-level GigE: 8.9 MP, ColorBFS-GE-88S6C-BD2 |
1 GigE | 8.9 | 13 | Sony IMX267 | Color | In Production Request Info |
|
|
BFS Board-level GigE: 8.9 MP, MonoBFS-GE-88S6M-BD2 |
1 GigE | 8.9 | 13 | Sony IMX267 | Mono | In Production Request Info |
|
|
BFS Board-level GigE: 12.3 MP, ColorBFS-GE-122S6C-BD2 |
1 GigE | 12.3 | 10 | Sony IMX304 | Color | In Production Request Info |
|
|
BFS Board-level GigE: 12.3 MP, MonoBFS-GE-122S6M-BD2 |
1 GigE | 12.3 | 10 | Sony IMX304 | Mono | In Production Request Info |
|
|
BFS Board-level USB3: 1.6 MP, ColorBFS-U3-16S2C-BD2 |
USB3 | 1.6 | 226 | Sony IMX273 | Color | In Production Request Info |
|
|
BFS Board-level USB3: 1.6 MP, MonoBFS-U3-16S2M-BD2 |
USB3 | 1.6 | 226 | Sony IMX273 | Mono | In Production Request Info |
|
|
BFS Board-level USB3: 2.8 MP, ColorBFS-U3-28S5C-BD2 |
USB3 | 2.8 | 130 | Sony IMX421 | Color | In Production Request Info |
|
|
BFS Board-level USB3: 2.8 MP, MonoBFS-U3-28S5M-BD2 |
USB3 | 2.8 | 130 | Sony IMX421 | Mono | In Production Request Info |
|
|
BFS Board-level USB3: 3.2 MP, ColorBFS-U3-31S4C-BD2 |
USB3 | 3.2 | 55 | Sony IMX265 | Color | In Production Request Info |
|
|
BFS Board-level USB3: 3.2 MP, MonoBFS-U3-31S4M-BD2 |
USB3 | 3.2 | 55 | Sony IMX265 | Mono | In Production Request Info |
|
|
BFS Board-level USB3: 3.2 MP, ColorBFS-U3-32S4C-BD2 |
USB3 | 3.2 | 118 | Sony IMX252 | Color | In Production Request Info |
|
|
BFS Board-level USB3: 3.2 MP, MonoBFS-U3-32S4M-BD2 |
USB3 | 3.2 | 118 | Sony IMX252 | Mono | In Production Request Info |
|
|
BFS Board-level USB3: 5 MP, ColorBFS-U3-50S4C-BD2 |
USB3 | 5.0 | 74 | Sony IMX547 | Color | In Production Request Info |
|
|
BFS Board-level USB3: 5 MP, MonoBFS-U3-50S4M-BD2 |
USB3 | 5.0 | 74 | Sony IMX547 | Mono | In Production Request Info |
|
|
BFS Board-level USB3: 5 MP, ColorBFS-U3-50S5C-BD2 |
USB3 | 5 | 35 | Sony IMX264 | Color | In Production Request Info |
|
|
BFS Board-level USB3: 5 MP, MonoBFS-U3-50S5M-BD2 |
USB3 | 5 | 35 | Sony IMX264 | Mono | In Production Request Info |
|
|
BFS Board-level USB3: 5 MP, ColorBFS-U3-51S5C-BD2 |
USB3 | 5 | 73 | Sony IMX250 | Color | In Production Request Info |
|
|
BFS Board-level USB3: 5 MP, MonoBFS-U3-51S5M-BD2 |
USB3 | 5 | 73 | Sony IMX250 | Mono | In Production Request Info |
|
|
BFS Board-level USB3: 8.9 MP, ColorBFS-U3-88S6C-BD2 |
USB3 | 8.9 | 32 | Sony IMX267 | Color | In Production Request Info |
|
|
BFS Board-level USB3: 8.9 MP, MonoBFS-U3-88S6M-BD2 |
USB3 | 8.9 | 32 | Sony IMX267 | Mono | In Production Request Info |
|
|
BFS Board-level USB3: 12.3 MP, ColorBFS-U3-122S6C-BD2 |
USB3 | 12.3 | 23 | Sony IMX304 | Color | In Production Request Info |
|
|
BFS Board-level USB3: 12.3 MP, MonoBFS-U3-122S6M-BD2 |
USB3 | 12.3 | 23 | Sony IMX304 | Mono | In Production Request Info |
|
|
BFS Board-level USB3: 20 MP, ColorBFS-U3-200S6C-BD2 |
USB3 | 20 | 17 | Sony IMX183 | Color | In Production Request Info |
|
|
BFS Board-level USB3: 20 MP, MonoBFS-U3-200S6M-BD2 |
USB3 | 20 | 17 | Sony IMX183 | Mono | In Production Request Info |
|
