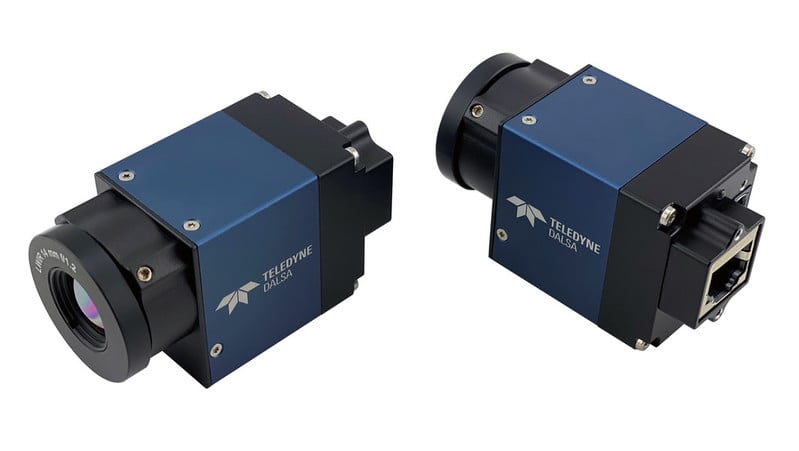

Calibir GX Overview
Thresholding with LUT
Calibir GX and its control software allow you to set your own LUTs (look up tables); with this control, you can mark certain temperatures with color while leaving the rest monochrome.
Frame Averaging for Extra Precision
Calibir GX supports a smart frame averaging feature that can be tuned to minimize read noise according to your tolerance to movement, allowing any detection system to reach extremely low NETD values.
Superior Dynamic Range
With a temperature range over 1500°C with consistent NETD <0.05°C, enabled by our advanced 21-bit ADC, Calibir GX offers unprecedented radiometric detail. For much smaller temperature ranges (e.g. 25°C to 45°C), Calibir GX can output an 8 bit (sub)range of values for convenient integration that still has 21-bit precision and accuracy.
Export Control
The Calibir GX cameras are currently classified as a "Dual Use" item under Group 1 (1-6.A.3.b.4.b) of the Canada Export Control List and Category 6 (6.A.3.b.4.b) under the Wassennaar Arrangement on Export Control for Conventional Arms and Dual-Use Goods and Technologies. As such, the Camera is subject to export control – export authorization is required to export the Camera from Canada, whether on a permanent or temporary basis.
Specifications
Highlighted
- Resolution
- 640(H) × 480 (V)
- Camera Type
- Area scan
- Sensor Type
- Microbolometer
- Pixel Size
- 17 µm
- Spectrum
- LWIR
Compliance & Certifications
- Compliance
- ROHS, WEEE, REACH … compliant
NDAA §899 compliance
- Shock
- 1,200 g @ 0.4 msec
Connections & Communications
- Control Channels
- GigE, SPI (LVDS or CSI outputs)
- Video Channels
- GigE or CSI-2
Features
- Alarms
- 1 per Temp. Zone Software message and/or electrical output
- Pseudo-Color
- Built-in or User supplied
Imaging & Optical
- Contrast Enhancement
- ROI Based Adaptive Contrast Enhancement Engine
- NETD
- ≤50 mK; F/1.0, at 30 fps
- Non-Uniformity Correction (NUC)
- Factory calibrated and with the used of internal shutter (FFC)
- Overlay
- Text (stats/frame count), Temp. scale, bounding box or cross-hair
- Pixel Format
- Mono: 8 or 16-bit/pixel
Color: YUV
- Pixel Pitch
- 17 µm
- Sensor Technology
- Uncooled VOx Microbolometer
- Spectral Range
- 8000 -12000 nm
Imaging & Optical
- Thermal Sensitivty
- <50mK
Performance
- Dynamic Range
- > 1000°C (simultaneously with the NETD above)
- Internal Mechanical Shutter Activation Time
- User configurable
- Max Frame Rate Standard
- 30 Hz
- Radiometric Accuracy
- +/- 5°C, 10°C to 90°C
- Scene Temperature Range
- >1000C
- Temperature Accuracy
- Non-radiometric
Physical
- Dimensions (incl mounting bracket)
- 29 mm x 36 mm x 59 mm
- Dimensions WxHxL
- 29 mm x 36 mm x 59 mm
- GPIO
- 1 in, 1 out;
- Humidity
- 5% to 95%, non condensing
- Input_Output
- GigE Vision, CSI-2
- Mass
- 67 g (without lens)
- Operating Humidity (Range)
- Maximum 80% non-condensing
- Operating Temp (Range)
- -35°C to 60°C
- Power Connection
- Via Samtec 10-pin connector (or optionally using PoE)
- Power Consumption
- 1.6 W
- Power Dissipation
- 1.6 W
- Storage Humidity (Range)
- maximum 80% non-condensing
Sensor Information
- Storage Temp (Range)
- -40°C to +80°C
- Weight
- 66.7 g (without lens)
