Key Specs
- Frame Rate
- Configuration
- Sensor
- 49

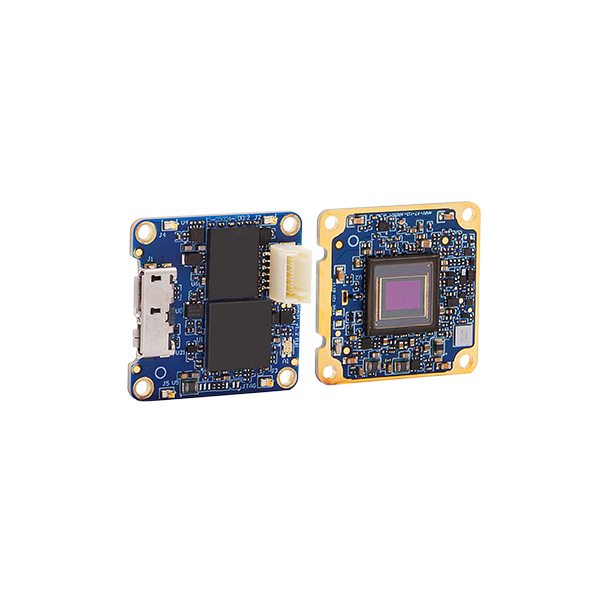

- Board-level, Side Connector
- onsemi AR0521
Flexible Camera Configurations
Board-level to fully enclosed models with lightweight aluminum case. Side/back USB3 connector orientations, with locking mechanism.
Compact and Lightweight
Compact, lightweight design for handheld or embedded devices. Class B EMC safety compliant for cased models.
Reliable Image Delivery
Onboard image buffering ensures that every captured image frame is reliably transferred to the host CPU
Specifications
Highlighted
- Part Number
- DR-U3-50Y2M-B3
- Resolution
- 2592 x 1944
- Megapixels
- 5.0
- Max Frame Rate Standard
- 49
- Sensor Model
- onsemi AR0521
- Pixel Size
- 2.2
- Sensor Type
- CMOS
- Sensor Format
- 1/2.5"
- Shutter type
- Rolling shutter
- Spectrum
- Mono
- Lens Mount
- Sold Separately
- Data Interface
- USB 3.1 Micro-B, side connector
Features
- Acquisition Modes
- Continuous / Single Frame / Multi Frame
- Exposure Control
- Hardware trigger, programmable via camera API, automatic
- Exposure Range
- 9 µs to 0.5 seconds
- Flash Memory
- 6 MB
- Gain Control
- Manual, automatic (AGC)
- Image Buffer
- 96 MB
- Image Processing
- Gamma, lookup table
- Partial Image Modes
- Pixel binning, ROI
- User Sets
- 1
- White Balance
- Manual, automatic (AWB)
Performance
- Absolute Sensitivity Threshold (y)
- 4.5
- Dynamic Range dB
- 69
- Gain Range
- 0 dB to 27 dB
- QE (Mono)
- 81 @525 nm
- Saturation Capacity (e-)
- 10080
- Temporal Dark Noise (Read Noise)
- 3.04
Physical
- Auxiliary Output
- 4.3 V to 5.25 V, up to 200 mA maximum
- Connector
- USB3 Micro-B (side) |JST BM06B-NSHSS-TBT
- Digitization Bit Depth (ADC)
- 10-bit, 12-bit
- Dimensions [W x H x L]
- 27 mm x 27 mm x 9.46 mm
- Mass
- 5 g
- Non-Isolated I/O Ports
- 4 bi-directional
- Operating Humidity
- 20 to 95% (no condensation)
- Operating Temperature
- 0° to 50°C (ambient)
- Power Consumption [Maximum]
- 2.4 W
- Power Requirements
- 5 V via USB3 interface
- Serial Port
- 1 over non-isolated I/O
- Storage Humidity
- 20 to 95% (no condensation)
- Storage Temperature
- -30° to 60°C
Recommended System Configuration
- Port
- USB3 Port
- Required Accessories
- Lens, Cable, Host Adapter (USB 3.1 Gen 1), Custom Heatsink
Compliance & Certifications
- Compliance
- CE, FCC, RoHS, REACH. The ECCN for this product is: EAR099.
- Machine Vision Standard
- USB3 Vision v1.0
- Warranty
- 3 years
