High Speed GigE Vision cameras with Wide temperature range

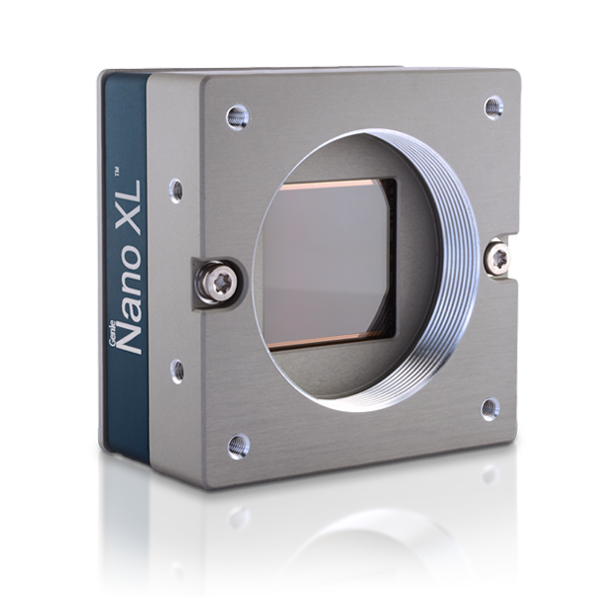

Genie Nano GigE

Introducing Genie Nano, a CMOS GigE camera that redefines low cost performance. Genie Nano starts with industry leading CMOS sensors and adds proprietary camera technology for breakthrough speed, a robust build quality for wide operating temperature, a three-year warranty and an unmatched feature set — all at an incredible price.





Smaller, faster, stronger, cheaper.
Better in every way that matters.

Introducing Genie Nano, a CMOS GigE camera that redefines low cost performance. Genie Nano starts with industry leading CMOS sensors and adds proprietary camera technology for breakthrough speed, a robust build quality for wide operating temperature, a three-year warranty and an unmatched feature set—all at an incredible price.

Genie Nano offers models for mono, color, and NIR response. Available lens mounts include C, CS, and F-mount.





Latest generation CMOS technology.

Genie Nano is designed to use a range of leading CMOS image sensors, including models from Sony's Pregius and ON Semiconductor's Python lines. With resolutions from VGA to 25 megapixels, the Nano delivers high speed, low noise, and global shutters.

Learn more >



Break through the GigE limit.

Teledyne DALSA's proprietary TurboDrive™ technology allows Genie Nano to deliver its full image quality at faster frame rates—often 150% or higher—with no changes to your GigE network. Get the fastest gigabit ethernet camera on the market.



GigE Vision

52 FPS
Standard Frame Rate


GigE Vision + TurboDrive

84 FPS
With TurboDrive Enabled

Learn more about TurboDrive




Family Specifications

Camera Type Area Scan
Sensor Technology CMOS
Supported Interfaces GigE Vision
Spectrum Capability Visible (400-700 nm),
Near Infrared (700-1000 nm)
Features TurboDrive, T2IR
Options C-mount available as CS-mount
Opto-isolated 2 input / 2 output available as 1 input / 3 output
Color models available with IR cut-off filter @650 nm
All models available with RS-232 serial port


Model Finder

Megapixels

Show All

Horizontal Resolution

Show All

Frame Rate

Show All

Pixel Size (μm)

Show All

Spectrum

Show All

Sensor

Show All

Results:

Reset Filters
Showing 54 results
Product MP FPS Pixel Size (μm) Interface Spectrum Price Compare Options
G3-GM11-M1240
G3-GM11-M1240
1 GigE Discontinued Genie Nano GigE
Genie Nano C1240 Color
G3-GC11-C1240
1.3 92 4.8 1 GigE Color Discontinued Request Info Genie Nano GigE
Genie Nano C1280 Color
G3-GC10-C1280
1.3 92 4.8 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C1450 Color
G3-GC10-C1450
1.5 76 3.45 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C1610 Color
G3-GC11-C1610
1.7 63 9 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C1630 Color
G3-GC11-C1630
2 57 4.5 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C1920 Color
G3-GC11-C1920
2.3 38.8 5.86 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C1930 Color
G3-GC10-C1930
2.5 48 4.8 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C1940 Color
G3-GC10-C1940
2.3 53 5.86 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C1950 Color
G3-GC10-C1950
2.3 51 3.45 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C2020 Color
G3-GC11-C2020
3.1 38 3.45 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C2050 Color
G3-GC10-C2050
3.1 37.8 3.45 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C2420 Color
G3-GC11-C2420
5 23.8 3.45 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C2450 Color
G3-GC10-C2450
5 23.8 3.45 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C2590 Color
G3-GC10-C2590
5.3 22.7 4.8 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C4020 Color
G3-GC11-C4020
12.3 9.7 3.45 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C4030 Color
G3-GC11-C4030
8.9 13.4 3.45 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C4040 Color
G3-GC10-C4040
12.3 9.7 3.45 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C4060 Color
G3-GC10-C4060
8.9 13.4 3.45 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C4900 Color
G3-GC10-C4900
18 6.6 1.25 1 GigE Color Discontinued Request Info Genie Nano GigE
Genie Nano C640 Color
G3-GC10-C0640
0.3 350 4.8 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C700 Color
G3-GC10-C0700
0.3 308 6.9 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano C810 Color
G3-GC11-C0810
0.5 160 9 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano M1280 Mono
G3-GM10-M1280
1.3 92 4.8 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M1280-NIR
G3-GM12-M1280
1.3 92 4.8 1 GigE Mono, NIR In Production Request Info Genie Nano GigE
Genie Nano M1450 Mono
G3-GM10-M1450
1.5 76 3.45 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M1610 Mono
G3-GM11-M1610
1.7 63 9 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M1630 Mono
G3-GM11-M1630
2 57 4.5 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M1920 Mono
G3-GM11-M1920
2.3 38.8 5.86 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M1930 Mono
G3-GM10-M1930
2.5 48 4.8 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M1930-NIR
G3-GM12-M1930
2.5 48 4.8 1 GigE Mono, NIR In Production Request Info Genie Nano GigE
Genie Nano M1940 Mono
G3-GM10-M1940
2.3 51 5.86 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M1950 Mono
G3-GM10-M1950
2.3 51 3.45 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M2020 Mono
G3-GM11-M2020
3.1 38 3.45 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M2050 Mono
G3-GM10-M2050
3.1 37.8 3.45 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M2420 Mono
G3-GM11-M2420
5 23.8 3.45 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M2450 Mono
G3-GM10-M2450
5 22 3.45 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M2450 Polarized
G3-GM14-M2450
5 22 3.45 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M2590 Mono
G3-GM10-M2590
5.3 22.7 4.8 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M2590-NIR
G3-GM12-M2590
5.3 22.7 4.8 1 GigE Mono, NIR In Production Request Info Genie Nano GigE
Genie Nano M4020 Mono
G3-GM11-M4020
12.3 9.7 3.45 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M4030 Mono
G3-GM11-M4030
8.9 13.4 3.45 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M4040 Mono
G3-GM10-M4040
12.3 9.7 3.45 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M4046 Mono
G3-GM10-M4060
8.9 13.4 3.45 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M640 Mono
G3-GM10-M0640
0.3 350 4.8 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M640-NIR
G3-GM12-M0640
0.3 350 4.8 1 GigE Mono, NIR In Production Request Info Genie Nano GigE
Genie Nano M700 Mono
G3-GM10-M0700
0.3 308 6.9 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano M810 Mono
G3-GM11-M0810
0.5 160 9 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano XL C4090 Color
G3-GC30-C4095
16.7 7.1 4.5 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano XL C5100 Color
G3-GC30-C5105
16.7 4.6 4.5 1 GigE Color In Production Request Info Genie Nano GigE
Genie Nano XL M4090 Mono
G3-GM30-M4095
16.7 7.1 4.5 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano XL M4090-NIR
G3-GM32-M4095
16.7 7.1 4.5 1 GigE Mono, NIR In Production Request Info Genie Nano GigE
Genie Nano XL M5100 Mono
G3-GM30-M5105
26.2 4.6 4.5 1 GigE Mono In Production Request Info Genie Nano GigE
Genie Nano XL M5100-NIR
G3-GM32-M5105
26.2 4.6 4.5 1 GigE Mono, NIR In Production Request Info Genie Nano GigE

Media gallery

Genie Nano 1 GigE
Genie Nano 1 GigE

Resources & Support

Application Overview

Battery Inspection

Read the Story

Technology Primer

CCD vs CMOS

Read the Story

Technology Primer

Global Shutter Imaging

Read the Story

Warranty & RMA

Teledyne DALSA Warranty Information

Read the Story

Below are assets shared by all models of this product family.

For model-specific assets, select an option in the Model Finder above.

You must be logged in to download software or firmware. Please sign in or create an account here.

Action Command Demo for GigE Vision Devices

Software Download

Last Updated: May 17, 2021

Version: 1.0

Download

Cognex Adapter for Teledyne DALSA Frame Grabbers & GigE Vision Cameras

Driver

Last Updated: March 03, 2020

Version: 1.20

Download

Below are assets shared by all models of this product family.

For model-specific assets, select an option in the Model Finder above.

App Note G3-AN0010 - Run Length Encoding Algorithms for Genie Nano GigE

Application Note

Download

G3-AN0001 - Installing Custom Optical Filters into Genie Nano

Application Note

Download

G3-AN0004 - Genie Nano: Comparing TurboDrive v2.0 with TurboDrive v1.0 algorithm

Application Note

Download

G3-AN0008 - Genie Nano - How to Multicast with Sapera LT

Application Note

Download

Genie Nano 1GigE Declaration of Conformity

Certification

Download

Genie Nano Family Datasheet

Datasheet

Download

Genie Nano Material Composition Product Declaration

Certification

Download

Genie Nano User Manual

User Manual

Download

ISR and Defense Mission Components Brochure

Brochure

Download

Machine Vision Brochure

Brochure

Download
