Compact CameraLink Cameras

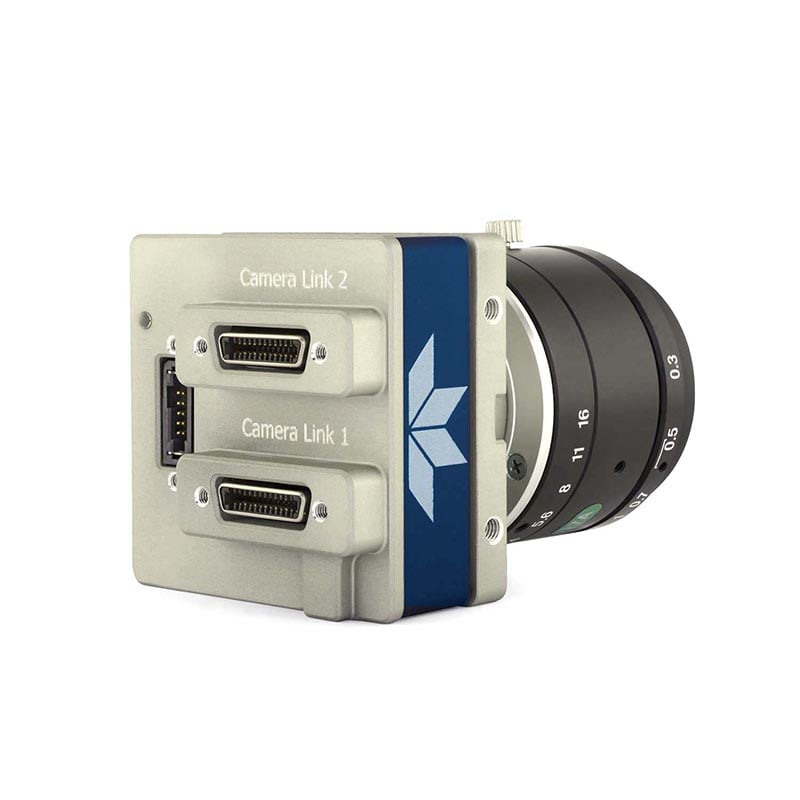

Genie Nano-CL

Instead of choosing between performance, feature set, reliability, and cost, Teledyne’s Genie Nano-CL cameras offer a series CMOS area scan cameras with all of that in mind. Built for industrial applications, the Genie Nano-CL is designed for long-term performance.



Smaller, faster, stronger, cheaper.
Better in every way that matters.

Introducing Genie Nano, a CMOS area scan camera that redefines low cost performance. Genie Nano starts with industry leading CMOS sensors and adds proprietary camera technology for breakthrough speed, a robust build quality for wide operating temperature, and an unmatched feature set--all at an incredible price.





Latest generation CMOS technology.

Genie Nano is designed to use a range of leading CMOS image sensors, including models from Sony's Pregius and ON Semiconductor's Python lines. With resolutions from VGA to 25 megapixels, the Nano delivers high speed, low noise, and global shutters.

Learn more >






Exploit more speed with your existing infrastructure

With the latest high performance CMOS image sensors, Genie Nano CL lets you take advantage of higher frame rates, higher resolution, and higher performance without having to change the rest of your existing Camera Link system infrastructure. You can keep your existing frame grabbers, cables, and application code, leveraging your existing investment to new levels of performance.



Family Specifications

Camera Type Area Scan
Sensor Technology CMOS
Supported Interfaces Camera Link
Spectrum Capability Visible (400-700 nm), Near Infrared (700-1000 nm)
Features TurboDrive, T2IR, Power over Camera Link (PoCL)


Model Finder

Megapixels

Show All

Horizontal Resolution

Show All

Frame Rate

Show All

Spectrum

Show All

Sensor

Show All

Results:

Reset Filters
Showing 16 results
Product MP FPS Pixel Size (μm) Interface Spectrum Price Compare Options
Genie Nano-CL C2420
G3-CC31-C2420
5 35 3.45 Camera Link Color In Production Request Info Genie Nano-CL
Genie Nano-CL C2450
G3-CC30-C2450
5 141 3.45 Camera Link Color In Production Request Info Genie Nano-CL
Genie Nano-CL C4020
G3-CC31-C4020
12.3 20 3.45 Camera Link Color Discontinued Request Info Genie Nano-CL
Genie Nano-CL C4040
G3-CC30-C4040
12.3 64 3.45 Camera Link Color In Production Request Info Genie Nano-CL
Genie Nano-CL C4060
G3-CC30-C4060
8.9 88 3.45 Camera Link Color In Production Request Info Genie Nano-CL
Genie Nano-CL C4090
G3-CC10-C4095
16.7 45 4.5 Camera Link Color In Production Request Info Genie Nano-CL
Genie Nano-CL C5100
G3-CC10-C5105
26.1 32 4.5 Camera Link Color In Production Request Info Genie Nano-CL
Genie Nano-CL M2420
G3-CM31-M2420
5 35 3.45 Camera Link Mono In Production Request Info Genie Nano-CL
Genie Nano-CL M2450
G3-CM30-M2450
5 141 3.45 Camera Link Mono In Production Request Info Genie Nano-CL
Genie Nano-CL M4020
G3-CM31-M4020
12.3 20 3.45 Camera Link Mono In Production Request Info Genie Nano-CL
Genie Nano-CL M4040
G3-CM30-M4040
12.3 64 3.45 Camera Link Mono In Production Request Info Genie Nano-CL
Genie Nano-CL M4060
G3-CM30-M4060
8.9 88 3.45 Camera Link Mono In Production Request Info Genie Nano-CL
Genie Nano-CL M4090
G3-CM10-M4095
16.7 45 4.5 Camera Link Mono In Production Request Info Genie Nano-CL
Genie Nano-CL M4090-NIR
G3-CM12-M4095
16.7 45 4.5 Camera Link Mono, NIR In Production Request Info Genie Nano-CL
Genie Nano-CL M5100
G3-CM10-M5105
26.1 32 4.5 Camera Link Mono In Production Request Info Genie Nano-CL
Genie Nano-CL M5100-NIR
G3-CM12-M5105
26.1 32 4.5 Camera Link Mono, NIR In Production Request Info Genie Nano-CL

Media gallery

Resources & Support

Application Overview

Battery Inspection

Read the Story

Technology Primer

CCD vs CMOS

Read the Story

Warranty & RMA

Teledyne DALSA Warranty Information

Read the Story

Below are assets shared by all models of this product family.

For model-specific assets, select an option in the Model Finder above.

You must be logged in to download software or firmware. Please sign in or create an account here.

Gen CP Camera SDK (Sapera SDK for Gen CP compliant Camera Link cameras only) for Win 10/11

Software Download

Last Updated: December 19, 2022

Version: 8.71

Download

Genie Nano-CL Firmware

Firmware Download

Last Updated: April 01, 2019

Version: 1.01

Download

Below are assets shared by all models of this product family.

For model-specific assets, select an option in the Model Finder above.

Machine Vision Brochure

Brochure

Download

Advanced Image Capture Acquisition and Processing Machine Vision Brochure

Brochure

Download

App Note G3-AN0010 - Run Length Encoding Algorithms for Genie Nano GigE

Application Note

Download

G3-AN0004 - Genie Nano: Comparing TurboDrive v2.0 with TurboDrive v1.0 algorithm

Application Note

Download

Genie Nano CameraLink Datasheet

Datasheet

Download

Genie Nano CL Onsemi Declaration of Conformity

Certification

Download

Genie Nano CL Series User Manual

User Manual

Download

Genie Nano Family Datasheet

Datasheet

Download

Genie Nano Material Composition Product Declaration

Certification

Download

ISR and Defense Mission Components Brochure

Brochure

Download
