GPIO Cable with 8-pin Hirose HR25 Circular Connector
General Specifications
Number of pins | 8 |
---|---|
Connector Type | Hirose HR25 Circular Connector |
Length | 1 meter or 4.5 meters |
Cable Diameter | 5.2 mm |
L = 1 meter or 4.5 meters

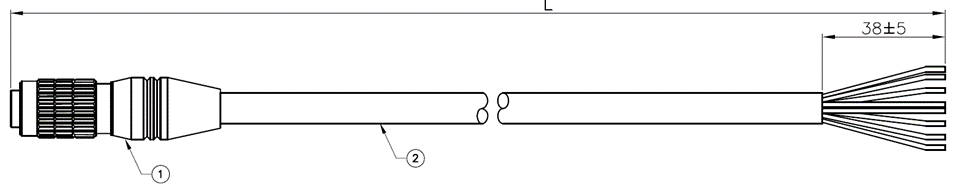

1 = Hirose 8 pin circular connector solder type
2 = UL20276 24AWG*8C+FAB 16*5/0.10 OD: 5.2 mm PVC Jacket, black

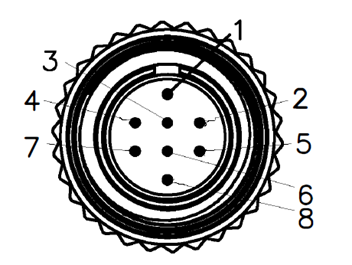

Pin | Color | Flea3 / Grasshopper3 |
1 | Black | Opto-isolated Input |
2 | White | Opto-isolated Output |
3 | Red | Input / Output / Serial Transmit (TX) |
4 | Green | Input / Output / Serial Receive (RX) |
5 | Brown | Camera Power Ground |
6 | Blue | Opto-isolated Ground |
7 | Orange | Camera Power Input |
8 | Yellow | Camera Power Output |
