INFINITY Series Overview
The INFINITY microscope camera body provides a heat-dissipating design that reduces noise without the need for costly fans or cooling systems, and INFINITY microscope cameras are compatible with most c-mount microscopes.
PRODUCT FEATURES
Ultra High Resolution
The ultra high-resolution INFINITY8-20C camera, with a large Field of View, is optimized for fast sample focusing to capture every detail even with low magnification. With no need for pixel shifting or added mechanical movement, the INFINITY8-20C captures images that can be printed at poster sizes. This makes it an ideal choice for biological and material industrial samples.
The INFINITY8-20C brings a 5472 x 3648 resolution to any c-mount microscope. This large one-inch sensor provides great sensitivity even in challenging light environments. Instead of worrying about pixel shifting or using other mechanical movements to image specific details, the INFINITY8-20C captures 20-megapixel images with a single click.

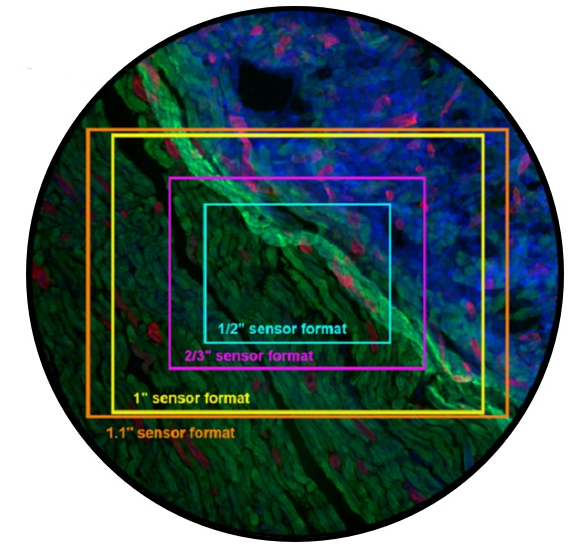

Large Field of View
With the high resolution of the INFINITY8-20C, capture images with a large field of view (FoV). This allows for a single image to capture more of a sample without needing to take multiple images. A 1X coupler also helps to reduce the costs of your overall set up. See image for details.
Accurate Color Reproduction
The INFINITY8-20C is designed with Sony’s advanced CMOS sensor technology. Coupled with Teledyne Lumenera’s extensive expertise working with applications requiring critical color reproduction and consistency, the colors in your sample will appear true to life and with a high level of contrast.
1X C-Mount Coupler
INFINITY8-20 Color Camera Reponsivity
Applications
• Brightfield
• DNA Analysis
• Live Cell Imaging
• Whole Slide Imaging
• Near-Infrared DIC
• Histology, Pathology and Cytology
• Calcium/Ion Imaging
• Forensic Analysis
• Semiconductor Inspection
• Metallurgical Microscopy
• Gel Documentation
PRODUCT HIGHLIGHTS
- Color sensor with 1” optical format
- 20 megapixel microscope camera with fast frame rates of 19.6 fps
- Full resolution 5472 x 3648
- USB 3 plug and play interface
- Compact form factor
- Support for locking industrial micro USB on the back for power and control
- INFINITY ANALYZE microscopy software included with purchase. No annual license fees.
- Software support for Windows and Mac, along with third-party plugins for Image-Pro® by Media Cybernetics and MicroManager
- Selectable 8 or 12-bit pixel data
40X Magnification with INFINITY8 Series Camera
Install and be Ready to Image in Minutes with the Easy-to-Use INFINITY ANALYZE 7 Application
Enjoy hassle-free use with no software license or update fees for as long as you own the camera, and reduce training time with easy-to-follow online video tutorials for Windows or MacOS. And, INFINITY ANALYZE 7 provides a consistent interface, functionality, and workflow for both Windows and Mac users.
ORDERING OPTIONS
- INFINITY8-20C — 20 MP digital camera
- 3-meter USB 3 Micro-B to Type-A cable Included
- La4000PAFL — GPIO cable with leads
- 5YR Protection Plan 2 — 5-Year Extended Warranty with Advanced Replacement
- Recommended coupler: 1x
INFINITY 5-Year Protection Plan
The INFINITY 5-Year Protection Plan is our commitment to providing complete peace of mind with an advanced hardware replacement assurance and a 5-year extended warranty for INFINITY microscopy cameras.
Specifications
Highlighted
- Resolution
- 5472 x 3648
- Megapixels
- 19.9
- Max Frame Rate Standard
- 19
- Sensor Model
- Sony IMX183
- Pixel Size
- 2.4
- Sensor Type
- CMOS
- Sensor Format
- 1"
- Spectrum
- Color
- Lens Mount
- C-mount
- Data Interface
- USB 3.0 (5.0 Gbps)
Features
- Acquisition Modes
- Single Capture, Fluorescence Mode, Timelapse, Video
- Exposure Control
- Manual and automatic control
- Gain Control
- Manual and automatic control
- Image Buffer
- 128 MB
- Partial Image Modes
- ROI
- White Balance
- Manual and automatic control
Performance
- C-Mount Coupler Magnification
- 1.0x C-mount coupler
- Dynamic Range
- 73
- Dynamic Range dB
- 73
- Full Well Capacity (Qsat)
- 14,600 e-
- QE (Mono)
- 74%
- QE Green
- 0.74
- Saturation Capacity (e-)
- 14600
- Temporal Dark Noise (Read Noise)
- 3.25
Physical
- Connector
- USB3 Micro-B (Horizontal locking) | JST HSHR-09V-S
- Digitization Bit Depth (ADC)
- 8-bit, 12-bit
- Dimensions [W x H x L]
- 41.5 mm x 45 mm x 45 mm
- Field of View
- -
- Mass
- 108 g
- Operating Humidity
- 5 to 95%, non-condensing
- Operating Temperature
- 0 to 50 °C
- Power Consumption [Maximum]
- 2.3 W to 3.6 W
- Power Requirements
- Power over USB or 5 to 25 V via GPIO connector
- Sensor Shutter Type
- Rolling
Recommended System Configuration
- Accessories (Included)
- 3 m USB 3.0 cable, INFINITY ANALYZE license
- Port
- USB 3.0
Compliance & Certifications
- Compliance
- CE, FCC, RoHS, WEEE. The ECCN for this product is: EAR099.
- Warranty
- 3 years
