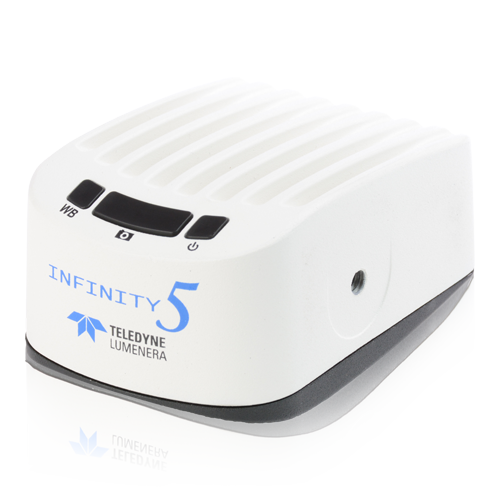

INFINITY5-5M

Model: INFINITY5-5M
product image

Key Specs

Live Viewing
Intuitive Interface
Software
Use an HDMI monitor or connect directly to a PC
On-camera buttons for power, white balance and image capture
Included license for INFINITY ANALYZE
In Production

INFINITY Series Overview

Whether you are shopping for the best price-to-performance microscopy camera to include with your new microscope setup, or you are looking to retrofit and older microscope to make it useful again, there is just the right INFINITY microscopy camera to meet your needs. Using the latest in advanced sensor technology, INFINITY monochrome microscopy cameras address the needs of fluorescence imaging and produce multi-layer florescence in a single vivid color. While the color models produce multi-color images, both can be used in education and lab settings.

The INFINITY microscope camera body provides a heat-dissipating design that reduces noise without the need for costly fans or cooling systems, and INFINITY microscope cameras are compatible with most c-mount microscopes.


Product Features

All-In-One HDMI and Research Grade Microscopy Camera
With its remarkable ability to reproduce exactly what is seen in the eyepiece, combined with its ability to be used without a computer, the INFINITY5 series cameras are an excellent fit for any application where fluorescence or darkfield is critical and there is the need for shared learning. Teaching, tumor board review, inspection, the HDMI interface provides users with the option to run the camera without connection to a computer.

High Quality
Teledyne Lumenera's INFINITY5-5 is a high quality 5-megapixel microscopy camera providing fast frame rates at high resolution. The INFINITY5-5 is based on the Sony® Pregius™ global shutter CMOS sensor that rivals sCMOS technology. With fast focusing at high frame rates of up to 75 frames per second, the INFINITY5-5 performs in a wide range of applications.

Simultaneous Live Viewing on Computer and HDMI Monitor
Operate the camera by directly connecting to an HDMI monitor, or connect the camera to a PC or Mac via USB 3 for image preview and capture. Use the soft-touch response buttons to control the camera with or without connection to a computer.

Guaranteed Quality
Teledyne Lumenera provides a full 3-year year warranty on all microscopy cameras.










Penicillium Mold 10x, Fluorescence




INFINITY5-5 Monochrome Camera

Applications

• Low Light Fluorescence
• Immunofluorescence
• Darkfield, DIC/Phase techniques
• DNA Analysis
• Live Cell Imaging
• Whole Slide Imaging
• Near-Infrared DIC
• Histology, Pathology and Cytology
• Calcium/Ion Imaging
• Forensic Analysis
• Semiconductor Inspection
• Metallurgical Microscopy
• Gel Documentation



PRODUCT HIGHLIGHTS

  • Sony Pregius global shutter sensor technology
  • Monochrome IMX250 Global Shutter CMOS sensor
  • Resolution of 2464 x 2056 using 3.45 x 3.45μm pixels
  • Fast frame rates at ~75 fps at full resolution in 8-bit
  • Dual output to USB 3 and HDMI compatible monitor
  • Intuitive on-camera buttons for power, white balance, and image capture
  • Selectable 8 or 12-bit pixel data
  • High-speed USB 3.1 Gen 1 interface for fastest image delivery
  • USB 2.0 supported.
  • Software compatible with Windows 10, Windows 8.1, Windows 7, MAC OS X 10.13, 32 and 64-bit operating systems
  • Support for third-party capture and analysis applications: Image-Pro by Media Cybernetics, and Micro-Manager




Penicillium Mold Vector Merge, Fluorescence



ORDERING OPTIONS

  • INFINITY5-5M —5.1 MP CMOS Mono USB 3.1 Gen 1 Camera
  • La050315 — Transformer, 5VDC, 15W, 3A, International
  • La2030HD — 3m HDMI Cable - Included
  • La2000PAFL — GPIO cable with leads
  • 5YR Protection Plan 2 — 5-Year Extended Warranty with Advanced Replacement
  • Recommended coupler: 0.63x - 0.7x


Install and be Ready to Image in Minutes with the Easy-to-Use INFINITY ANALYZE 7 Application

Enjoy hassle-free use with no software license or update fees for as long as you own the camera, and reduce training time with easy-to-follow online video tutorials for Windows or MacOS. And, INFINITY ANALYZE 7 provides a consistent interface, functionality, and workflow for both Windows and Mac users.

Download INFINITY ANALYZE 7.






INFINITY 5-Year Protection Plan

The INFINITY 5-Year Protection Plan is our commitment to providing complete peace of mind with an advanced hardware replacement assurance and a 5-year extended warranty for INFINITY microscopy cameras.



Specifications

Highlighted

Resolution
2464 x 2056
Megapixels
5
Max Frame Rate Standard
75
Sensor Model
Sony IMX250
Pixel Size
3.45
Sensor Type
CMOS
Sensor Format
2/3"
Sensor Diagonal
11.1 mm
Spectrum
Mono
Lens Mount
C-mount
Data Interface
USB 3.0 (5.0 Gbps)

Features

Acquisition Modes
Single Capture, Fluorescence Mode, Timelapse, Video
Exposure Control
Manual and automatic control
Gain Control
Manual and automatic control
Partial Image Modes
2 x 2 binning mode
White Balance
Manual and automatic control

Performance

Absolute Sensitivity Threshold (y)
4.9 DN/(nJ/cm²)
C-Mount Coupler Magnification
0.63x - 0.7x C-mount coupler
Dynamic Range
72
Dynamic Range dB
72
Full Well Capacity (Qsat)
10,500 e-

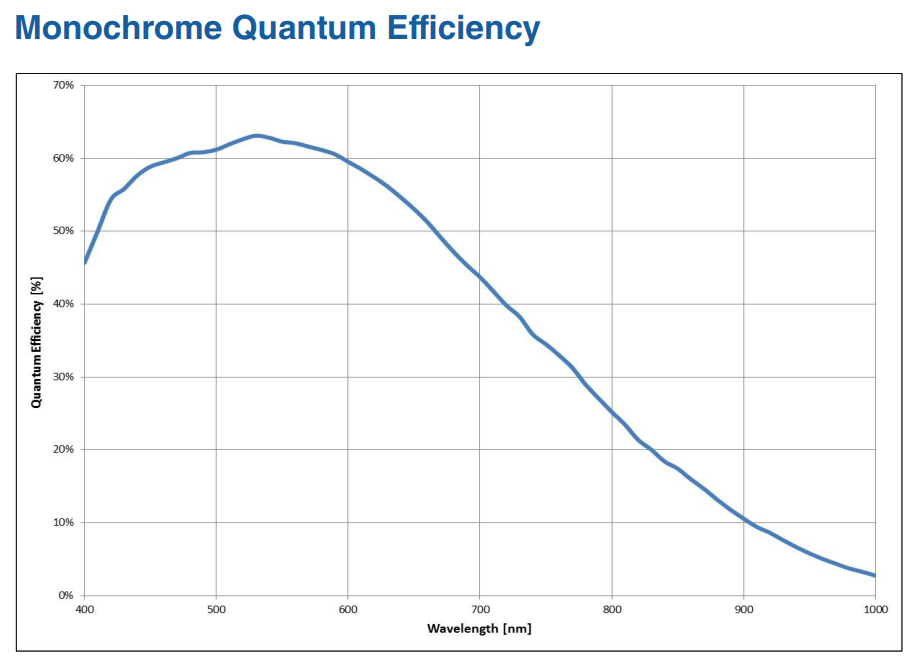

QE (Mono)
63%
Saturation Capacity (e-)
10500
Temporal Dark Noise (Read Noise)
2.3

Physical

Connector
Hirose MXR-8R-8SA
Digitization Bit Depth (ADC)
8-bit, 12-bit
Dimensions [W x H x L]
97.8 mm x 69.8 mm x 50.8 mm
Field of View
-
Mass
330 g
Operating Humidity
5 to 95%, non-condensing
Operating Temperature
0 to 50 °C
Power Consumption [Maximum]
4 W
Power Requirements
External 5 V DC, 1.2 A
Sensor Shutter Type
Global

Recommended System Configuration

Accessories (Included)
3 m USB 3.0 cable, 5V DC, 15W, 3A power supply, INFINITY ANALYZE license
Port
USB 3.0, HDMI

Compliance & Certifications

Compliance
CE, FCC, RoHS, WEEE. The ECCN for this product is: EAR099.
Warranty
3 years
