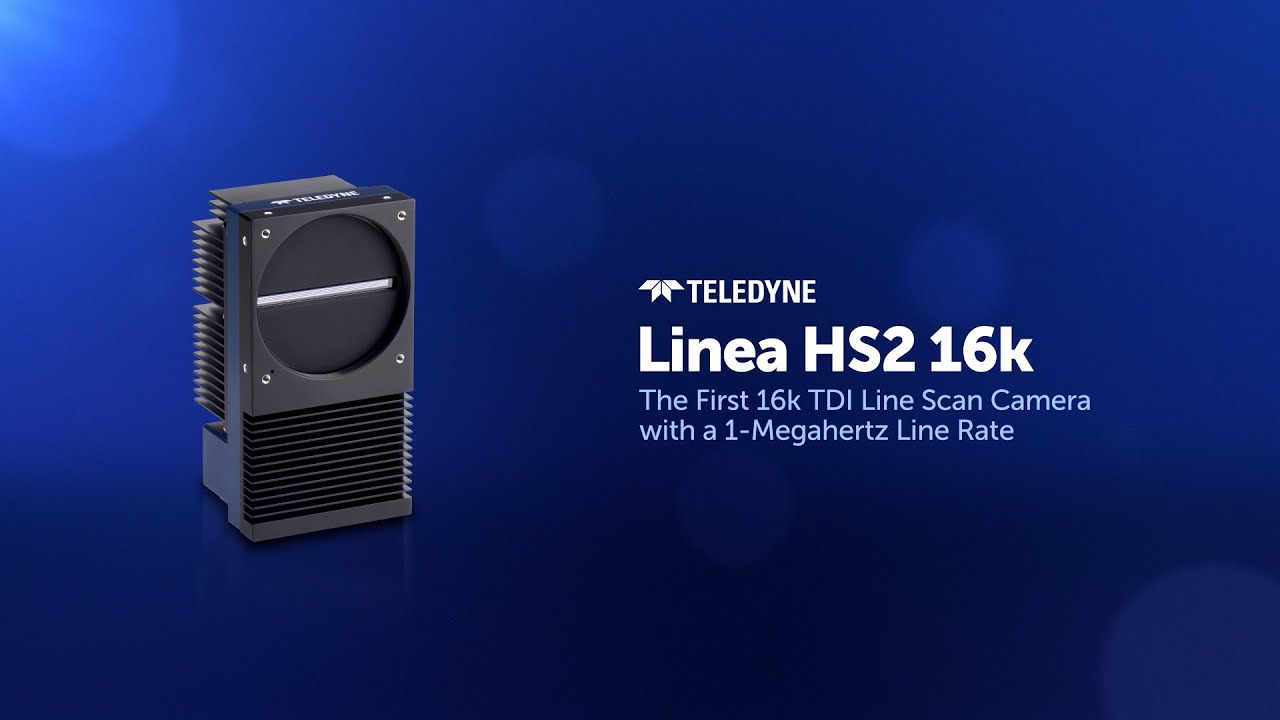

Linea HS2 16k 1MHz BSI

Model: H2-HM-16K100H-00-B
product image

Drawing on Teledyne’s four decades of industry leading expertise, the all new Linea™ HS2 camera series represents a significant breakthrough in next generation TDI technology. Designed for ultra-high-speed imaging in light starved conditions, it delivers exceptional image quality with 16k/5 µm resolution and boasts an industry leading maximum line rate of 1 Megahertz, or 16 Gigapixels per second data throughput.

In Production

Introducing The Future of Line Scan Imaging

The industry’s First 16K 1MHz TDI Camera: Teledyne DALSA’s new Linea HS2 camera represents another breakthrough in next generation TDI technology. Designed for ultra high speed imaging in light starved condition, this camera offers superior image quality with 16k resolution at a max line rate 1MHz. It has dual CLHS data interface that achieves 16GB/s data throughput with field-proven reliability in high-speed data transmission.


Seamless Upgrade, Packed with Powerful Features

Linea HS2 offers an easy upgrade from Teledyne’s existing Linea HS line scan cameras, featuring the same pixel size, optics, cables, and mounting hardware, but with a 2.5 time increase in speed, while maintaining reasonable power consumption. The cameras also deliver the highest performance available, with unique features that significantly improve detectability for many demanding applications.







Backside Illumination for Ultra-High-Speed Imaging

Linea HS2 features a highly sensitive Backside Illuminated (BSI) multi-array charge-domain TDI CMOS sensor with 16k/5 µm resolution and optimized Quantum Efficiency, meeting the rigorous demands of current and future machine vision applications. The multi-array TDI sensor architecture allows the camera to be configured for superior image quality with maximized line rate, dynamic range, or full well, according to specific application requirements. On-chip binning also enables higher web speeds to boost system throughput. The camera is equipped with dual Camera Link HS CX4 connectors to Active Optical Cables providing complete EMI immunity.





Complete Imaging Solution

For a complete solution, the Linea HS2 camera works with Teledyne’s Xtium2 CLHS series of high-performance frame grabbers, utilizing next generation CLHS technology. The Xtium2 CLHS PX8 is built on reliable, field-proven high-speed data transmission technology, delivering data at 16 Gigapixels per second over dual CLHS CX4 connectors to active optical cables. Its data forwarding capability supports parallel data processing in up to 12 PCs and together with Linea HS2, allows for cable lengths over 100 meters with complete EMI immunity.




Typical Applications

The Linea HS2 enables high speed and high sensitivity imaging in light starved conditions, making it particularly idea for:

  • Semiconductor wafer inspection
  • High density packaging inspection
  • Flat panel display inspection
  • Gene sequencing
  • Digital pathology

If you need maximum throughput in the toughest conditions, you need Linea HS2.




Family Highlights

Camera Type TDI Line Scan
Sensor Technology CMOS
Supported Interfaces Camera Link HS
Spectrum Capability Ultraviolet (350-400 nm), Visible (400-700 nm), Near Infrared (700-1000 nm)


Specifications

Highlighted

Part Number
H2-HM-16K100H-00-B
Resolution
16384 x 288 (3 TDI arrays 128 + 128 + 32)
Max Line Rate
1000 kHz
Pixel Size
5
Sensor Type
CMOS
Shutter type
N/A
Spectrum
Mono
Lens Mount
M90 x 1 mm
Synchronization
Image sync: Free-running, external trigger, CLHS trigger
Data Interface
Camera Link HS
Protection
IP30

Features

Acquisition Modes
Continuous
Exposure Control
Hardware trigger, programmable via camera API
Flash Memory
Cameras
Gain Control
Manual

Performance

Dynamic Range dB
65
Gain Range
1x to 10x
Peak Wavelength
620 nm
Responsivity
700+700+175 (DN8/nJ/cm2)

Physical

Connector
CX4 or Hirose 12-pin circular (male)
Digitization Bit Depth (ADC)
8-bit, 10-bit
Dimensions [W x H x L]
97 mm x 180 mm x 76.9 mm
Mass
1.48 kg
Operating Temperature
0°C to 50°C (measured at the front face of the camera)
Power Consumption [Maximum]
56 W
Power Requirements
24 V via GPIO connector
Storage Humidity
15 to 85% (no condensation)
Storage Temperature
-20°C to 80°C

Recommended System Configuration

Port
CLHS 7 Data Lanes (10.3 Gbps/lane)

Compliance & Certifications

Compliance
CE, FCC, KCC, RoHS.
Machine Vision Standard
CameraLink HS v1.0
Warranty
3 years
