MicroCalibir Overview

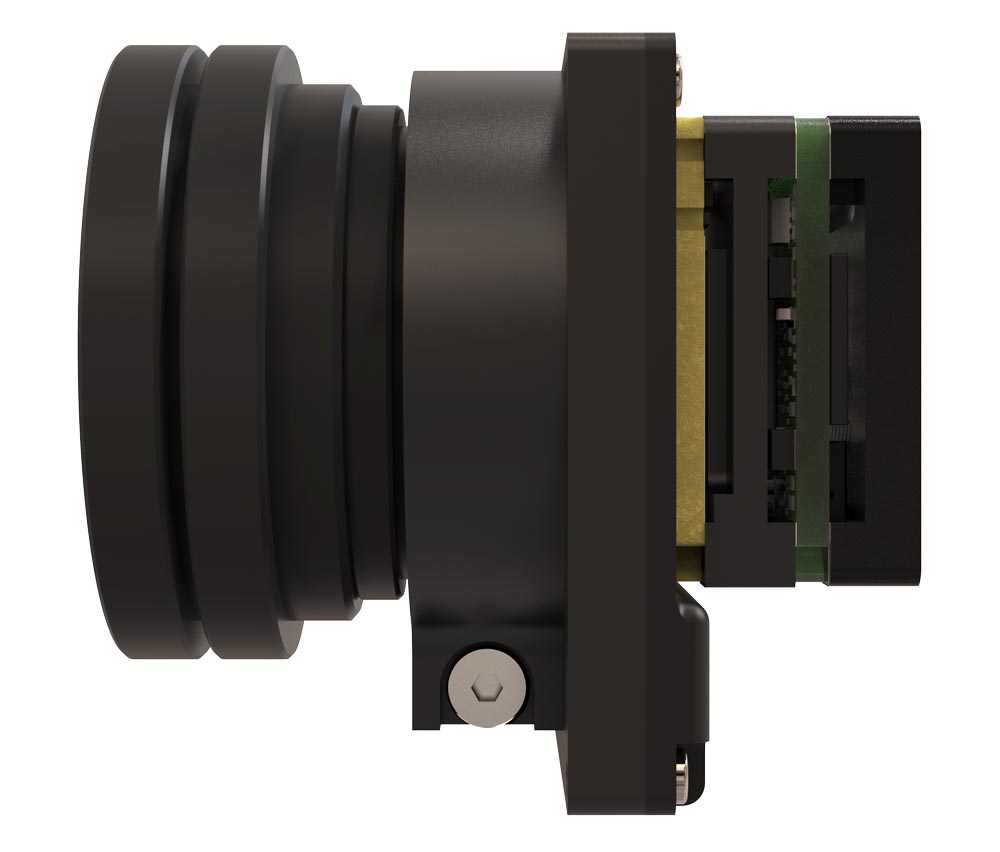

The latest advances in the integration of our in-house 12 µm microbolometer pixel technology with a deep-ADC ROIC circuit have resulted in the development of the small and lightweight MicroCalibir™. This compact, low-power uncooled thermal camera platform features the smallest VGA IR core module on the market making it ideal for OEM drones, handhelds, helmet-mounted and vehicular integration products.
Export Control
The MicroCalibir cameras are currently classified as a "Dual Use" item under Group 1 (1-6.A.3.b.4.b) of the Canada Export Control List and Category 6 (6.A.3.b.4.b) under the Wassennaar Arrangement on Export Control for Conventional Arms and Dual-Use Goods and Technologies. As such, the Camera is subject to export control – export authorization is required to export the Camera from Canada, whether on a permanent or temporary basis.
Specifications
Highlighted
- Resolution
- 320 (H) × 240 (V)
- Camera Type
- Area scan
- Sensor Type
- Microbolometer
- Pixel Size
- 12 µm
- Field of View
- 12 to 44° HFOV
- Spectrum
- LWIR
Compliance & Certifications
- Compliance
- ROHS, WEEE, REACH … compliant
NDAA §899 compliance
- Shock
- 1,200 g @ 0.4 msec
Connections & Communications
- Control Channels
- UART or USB
- Video Channels
- USB-2 or CSI-2
Features
- Alarms
- 1 per Temp. Zone Software message and/or electrical output
- Pseudo-Color
- Built-in or User supplied
Imaging & Optical
- Contrast Enhancement
- ROI Based Adaptive Contrast Enhancement Engine
- Focal Length
- 5 to 18 mm
- NETD
- ≤50 mK; F/1.0, at 30 fps
- Non-Uniformity Correction (NUC)
- Factory calibrated and with the used of internal shutter (FFC)
- Overlay
- Text (stats/frame count), Temp. scale, bounding box or cross-hair
- Pixel Format
- Mono: 8 or 16-bit/pixel
Color: YUV
- Pixel Pitch
- 12 µm
- Sensor Technology
- Uncooled VOx Microbolometer
- Spectral Range
- 8000 -12000 nm
Imaging & Optical
- Thermal Sensitivty
- <45 mK
Performance
- Dynamic Range
- > 1000°C (simultaneously with the NETD above)
- Internal Mechanical Shutter Activation Time
- User configurable
- Max Frame Rate Standard
- 60Hz / 30Hz (can be adjusted to lower frame rate)
- Radiometric Accuracy
- Coming soon
- Scene Temperature Range
- >1000C
- Temperature Accuracy
- Coming soon
Physical
- Dimensions (incl mounting bracket)
- 33.5 x 29 x 23 mm with shutter and lens mount
- Dimensions WxHxL
- 21 x 21 x 12.9 mm (H x V x D) core only
- GPIO
- 1 in, 1 out;
- Humidity
- 5% to 95%, non condensing
- Input_Output
- USB2.0, CSI-2
- Mass
- < 20 g without lens but with lens interface mount
- Operating Humidity (Range)
- Maximum 80% non-condensing
- Operating Temp (Range)
- -40°C to 80°C
- Power Connection
- USB or via I/O connector
- Power Consumption
- < 0.9 W
- Power Dissipation
- < 0.9 W
- Storage Humidity (Range)
- maximum 80% non-condensing
Sensor Information
- Storage Temp (Range)
- - 46°C to 85°C
- Weight
- < 20 g without lens but with lens interface mount
