X-ray Imaging in the Least Accessible Spaces
Remote RadEye HR

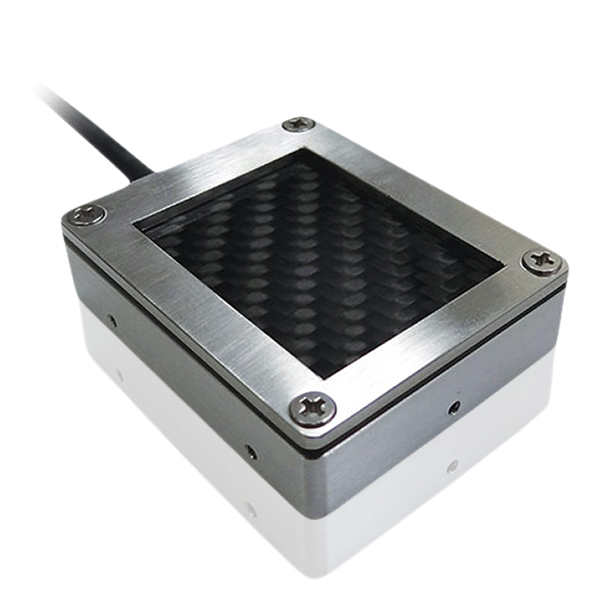

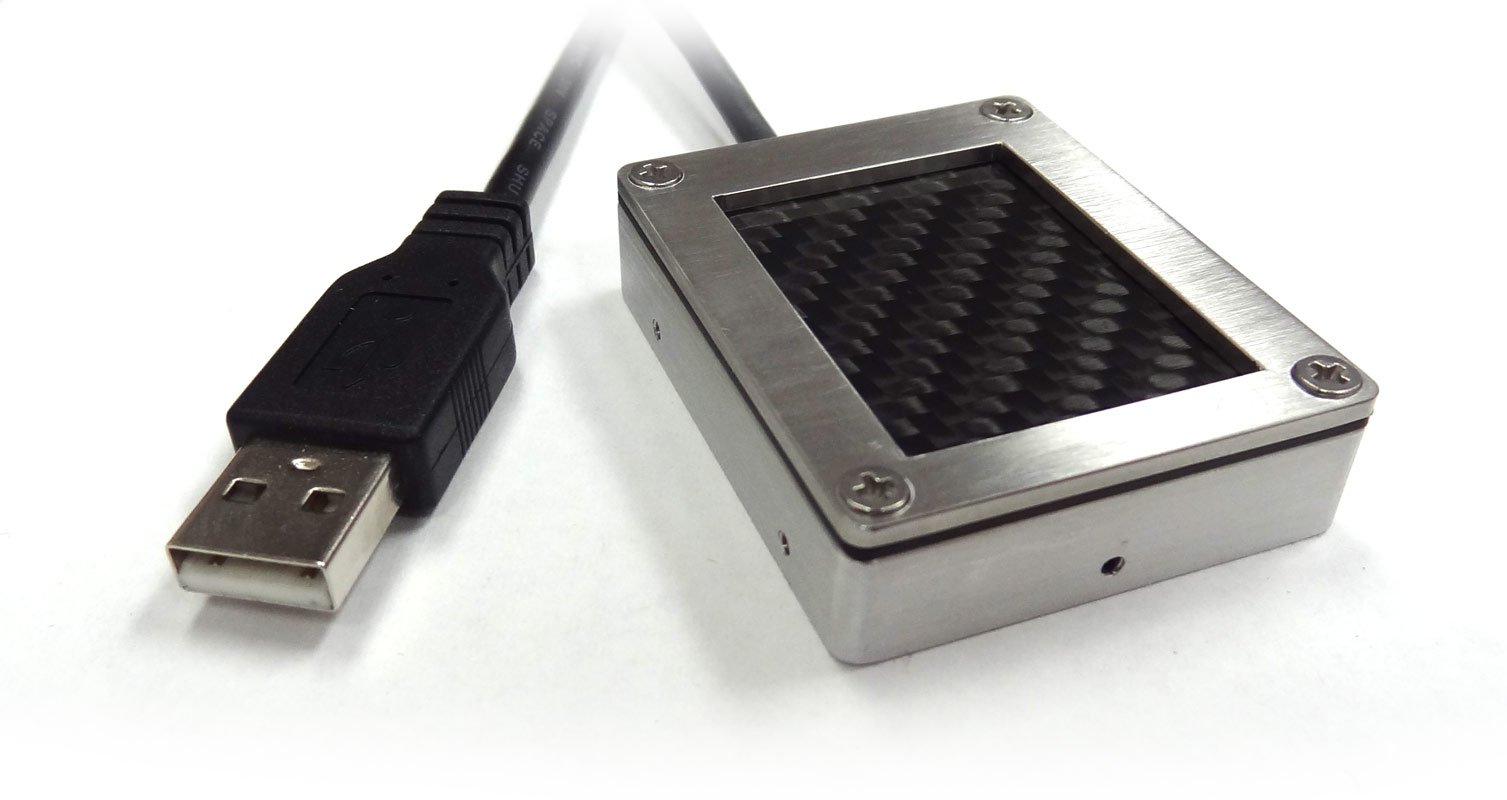

The Remote RadEye HR sensor module sits at the end of a detachable cable that can reach into tiny corners. The detector connects to a PC via USB cable.
The detector is compatible with our ShadoCam image acquisition software, and is available with programming examples and SDKs for custom application software development.

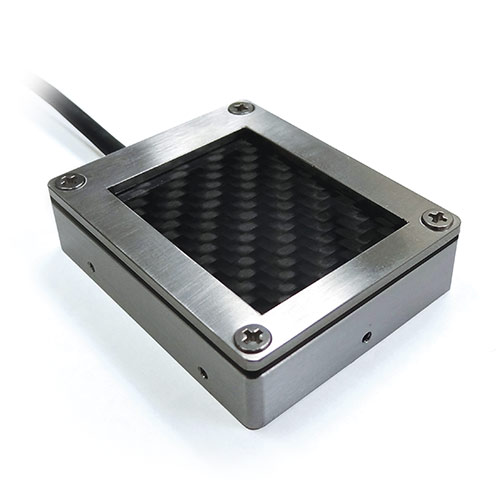

Photodiode Detection
A Gd2O2S scintillator screen, placed in direct contact with the photodiode array, converts incident x-ray photons to light, which in turn is detected by the photodiodes. A model featuring a Beryllium entrance window can be used in low-energy applications down to ~5keV.
Damage Protection
Each detector features a rugged aluminum enclosure with a stainless steel cover and a carbon-fiber or Beryllium window that shields the sensor against ambient light and protects the sensitive electronics from accidental damage.
Specifications
Highlighted
- Resolution
- 1650 x 1246
- Camera Interface
- USB 2.0
- Pixel Size
- 0 µm
Detector
- Active Area
- 33 x 24 mm
- Frame Rate
- Standard: 0.75 fps
