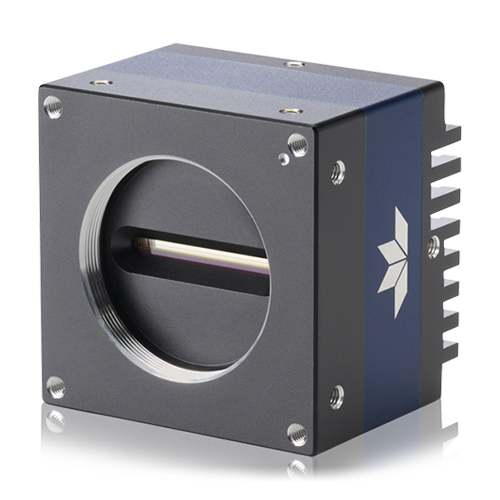

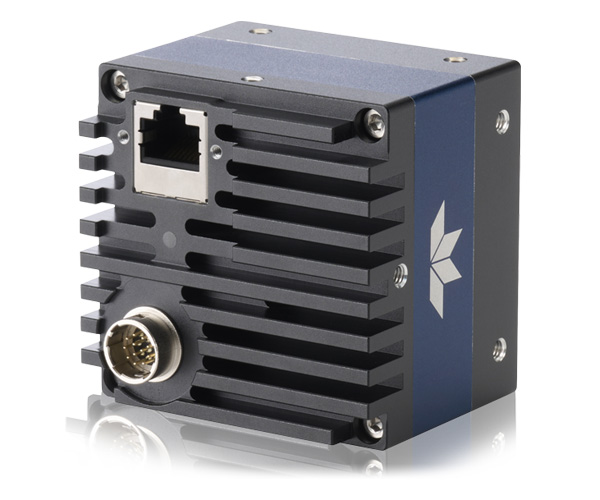

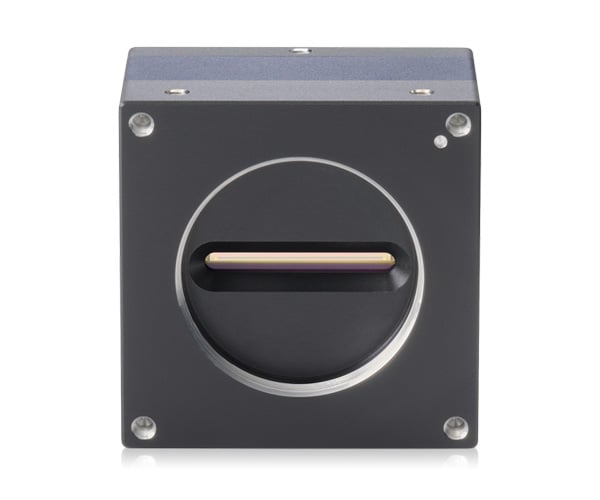

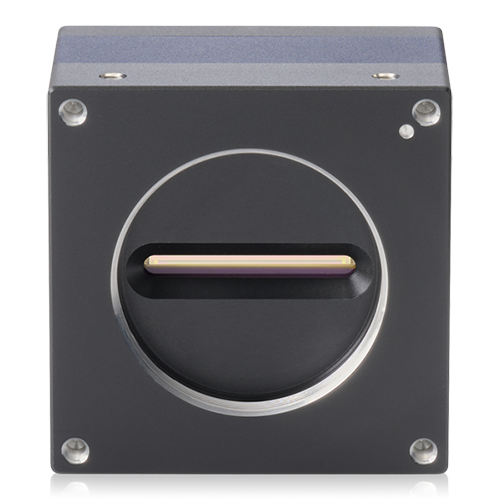

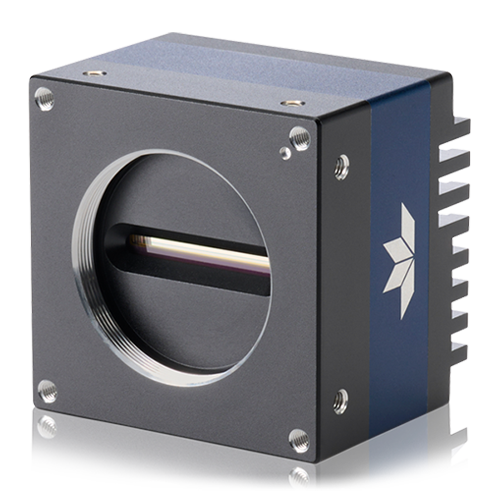

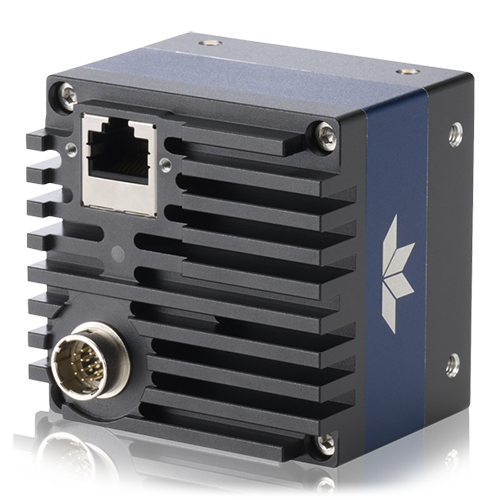

Tetra
The Tetra line scan camera family uses Teledyne’s latest CMOS line scan sensor technology to deliver superior image quality, high dynamic range, and low power consumption, ideal for many cost sensitive applications.
Cost-Effective Performance
The Tetra camera family offers a high performance-to-cost ratio through its 2.5 GigE Vision interface, which provides 2.5x bandwidth of GigE in data transmission over long cable lengths. Available in 2k, 4k, and 8k resolutions, the camera comes in both monochrome or color versions, with power consumption of under 6 watts. Monochrome models deliver excellent image quality with options for single line monochrome or dual line HDR mode, while the color models provide true trilinear red, green and blue colors without any data interpolation.
Includes Essential Line Scan Features
Tetra includes essential line scan features such as multiple regions of interest, programmable coefficient sets, and power over internet. Its 2.5 GigE Vision interface makes it ideal for applications such as electronics inspection, optical sorting, printed materials inspection, packaging inspection, web inspection and general machine vision.
Model Finder
| Product | Resolution | Spectrum | Interface | Pixel Size (μm) | Max Line Rate | Status | Compare |
|---|---|---|---|---|---|---|---|
Tetra 2k ColorTL-GC-02K05T-00 |
2048 x 3 | Color | 2.5 GigE | 14 | 50 kHz x 3 | Preproduction Request Info |
|
Tetra 2k MonoTL-GM-02K15B-00 |
2048 x 2 | Mono | 2.5 GigE | 14 | 150 kHz | Preproduction Request Info |
|
Tetra 4k ColorTL-GC-04K02T-00 |
4096 x 3 | Color | 2.5 GigE | 7 | 25 kHz x 3 | Preproduction Request Info |
|
Tetra 4k MonoTL-GM-04K07B-00 |
4096 x 2 | Mono | 2.5 GigE | 7 | 75 kHz | Preproduction Request Info |
|
Tetra 8k MonoTL-GM-08K07S-00 |
8192 x 1 | Mono | 2.5 GigE | 3.5 | 75 kHz | Preproduction Request Info |
|
Resources & Support
Below are assets shared by all models of this product family.
For model-specific assets, select an option in the Model Finder above.
Tetra 2.5 GigE Color Datasheet
Tetra 2.5 GigE Mono Datasheet
