Topaz5D Overview

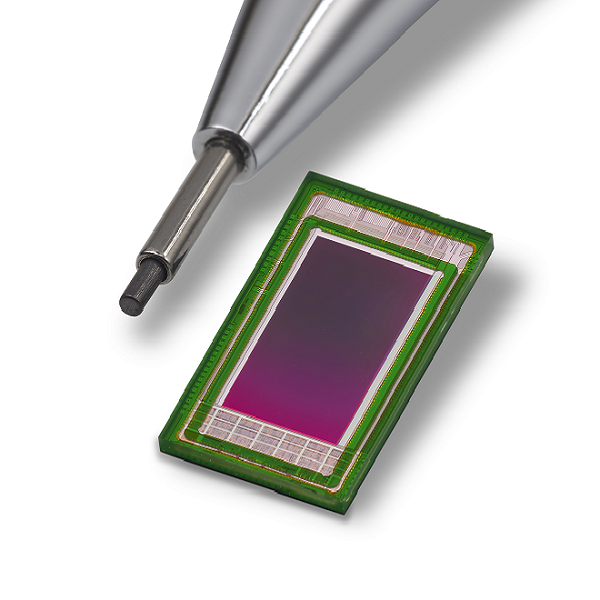

Topaz5D™ is a unique combination of 1,920 x 1,080 resolution, low noise global shutter, 2D and 3D image sensor, designed with Teledyne e2v’s proprietary CMOS technology and specific 3D post-processing optical layers. This delivers uncompromised 2D and 3D data in parallel on a single sensor.
Specifications
- Technology
- 2D, 3D Vision
- Resolution
- 2M
- Resolution - Horizontal Pixels
- 1920
- Resolution - Vertical Pixels
- 1080
- Optical Format
- 1/3.2"
- Lens Mount Compatible
- M12
- Shutter type
- Global
- Interface
- MIPI CSI-2
- Maximum Package Size - Horizontal
- 7.65
- Maximum Package Size - Vertical
- 4.45
- Pixel Size - Horizontal
- 2.5
- Pixel Size - Vertical
- 2.5
- Chroma (Standard)
- Mono
- Spectrum
- Visible
- Frame/Line Rate
- 65 fps
- NIR Enhanced
- No
- Image Sensor CRA
- 14
- Sensor Family
- Topaz5D
