Cost-Effective CMOS

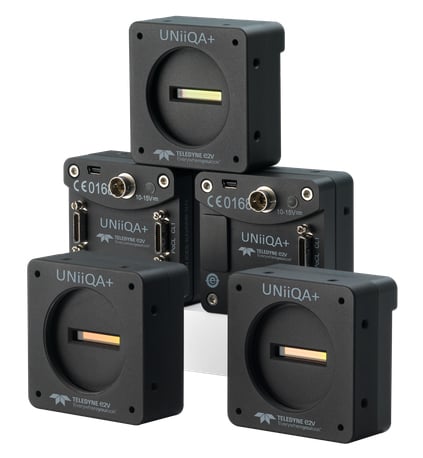

UNiiQA+ (Legacy)

The UNiiQA+ series of line scan cameras have been optimised for low-cost inspection equipment. The cameras are available in monochrome and Bayer color, with resolutions of 2k, 4k and 16k, and a CameraLink or GigE Vision over NBASE-T (5 Gb/s) interface. The 5µm pixel pitch sensor design enables the UNiiQA+ to stand out as a compact line scan camera and it is C-mount compatible at any resolution up to 4k pixels.

Watch Video


Unleash the potential of your inspection system

The Teledyne e2v UNiiQA+ series offers a range of line scan cameras that have been optimised for low-cost inspection equipment. The cameras are available in monochrome and Bayer colour, with resolutions of 2k, 4k and 16k, and a CameraLink or GigE Vision over NBASE-T (5 Gb/s) interface.

The 5µm pixel pitch sensor design enables the UNiiQA+ to stand out as the most compact line scan camera on the market today and it is C-mount compatible at any resolution up to 4k pixels.





Typical Applications

  • Roughness and scratch detection in surface inspection (glass, paper, metal, textile)
  • Presence control in pharmaceutical inspection
  • Damage detection in rail inspection applications
  • Character recognition in document scanning, parcel and postal sorting


Family Specifications

Camera Type Line Scan
Sensor Technology CMOS
Supported Interfaces GigE Vision, Camera Link, NBASE-T Ethernet
Spectrum Capability Visible (400-700 nm)


Model Finder

Resolution

Show All

Spectrum

Show All

Data Interface

Show All

Max Line Rate

Show All

Results:

Reset Filters
Showing 17 results
Product Resolution Spectrum Interface Pixel Size (μm) Max Line Rate Price Compare Options
UNiiQA+ Color 2k 100KHZ, dual line
EV71YC1CNT2010-BA0
2048 x 1 Color NBASE-T Ethernet 5 100 kHz UNiiQA+ (Legacy)
UNiiQA+ Color 2K 40KHz
EV71YC1CCL2010-BA0
2048 x 1 Color Camera Link 5 40 kHz UNiiQA+ (Legacy)
UNiiQA+ Color 2K 80KHz
EV71YC1CCL2010-BA1
2048 x 1 Color Camera Link 5 80 kHz UNiiQA+ (Legacy)
UNiiQA+ Color 4K 20KHz
EV71YC1CCL4005-BA0
4096 x 1 Color Camera Link 5 20 kHz UNiiQA+ (Legacy)
UNiiQA+ Color 4K 40KHz
EV71YC1CCL4005-BA1
4096 x 1 Color Camera Link 5 100 kHz UNiiQA+ (Legacy)
UNiiQA+ Color 4K/2K 50khz
EV71YC1CNT4005-BA0
4096 x 1 Color Camera Link 5 50 kHz UNiiQA+ (Legacy)
UNiiQA+ Color Multiresolution 40KHz
EV71YC1CCL4005-BA2
4096 x 1 Color Camera Link 5 40 kHz UNiiQA+ (Legacy)
UNiiQA+ Color Multiresolution 80KHz
EV71YC1CCL4005-BA3
4096 x 1 Color Camera Link 5 80 kHz UNiiQA+ (Legacy)
UNiiQA+ Mono 16K 50KHz
EV71YC1MCL1605-BA2
16384 x 1 Mono Camera Link 5 50 kHz UNiiQA+ (Legacy)
UNiiQA+ Mono 2K 100KHz
EV71YC1MCL2010-BA1
2048 x 1 Mono Camera Link 5 100 kHz UNiiQA+ (Legacy)
UNiiQA+ Mono 2k 140KHz
EV71YC1MNT2010-BA0
4096 x 1 Mono Camera Link 5 140 kHz UNiiQA+ (Legacy)
UNiiQA+ Mono 2K 40KHz
EV71YC1MCL2010-BA0
2048 x 1 Mono Camera Link 5 40 kHz UNiiQA+ (Legacy)
UNiiQA+ Mono 4K 100KHz
EV71YC1MCL4005-BA1
4096 x 1 Mono Camera Link 5 100 kHz UNiiQA+ (Legacy)
UNiiQA+ Mono 4K 20KHz
EV71YC1MCL4005-BA0
4096 x 1 Mono Camera Link 5 20 kHz UNiiQA+ (Legacy)
UNiiQA+ Mono 4K/2K 140KHz
EV71YC1MNT4005-BA0
4096 x 1 Mono Camera Link 5 140 kHz UNiiQA+ (Legacy)
UNiiQA+ Mono Multiresolution 100KHz
EV71YC1MCL4005-BA3
4096 x 1 Mono Camera Link 5 100 kHz UNiiQA+ (Legacy)
UNiiQA+ Mono Multiresolution 40KHz
EV71YC1MCL4005-BA2
4096 x 1 Mono Camera Link 5 40 kHz UNiiQA+ (Legacy)
