Xtium Overview
Feature-Rich CLHS, CL, and CXP Acquisition and Processing
The Xtium series offers high performance frame grabbers for CameraLink, CameraLink HS and CoaXPress interface standards. The Xtium Series takes full advantage of PCIe Gen 2.0 platform to deliver bandwidth up to 3.4 GB/s using PCIe x8 slots.
Great Features to Make Your Job Easier
The Xtium Family features high-performance on-board, Data Transfer Engine (DTE) to deliver maximum bandwidth without the need for specialized motherboards or chipsets. By enabling maximum sustained throughput and ready-to-use image data, the Xtium Family minimizes CPU usage and improves processing times for host applications.
Free Acquisition and Control Software Libraries
The Xtium and Xtium2 series of frame grabbers are fully supported by Sapera LT SDK. Sapera LT SDK is an image acquisition and control software development toolkit (SDK) for Teledyne’s cameras and frame grabbers. Hardware independent by nature, Sapera LT offers a rich development ecosystem for machine vision OEMs and system integrators.
Proven Capability. High Speeds.

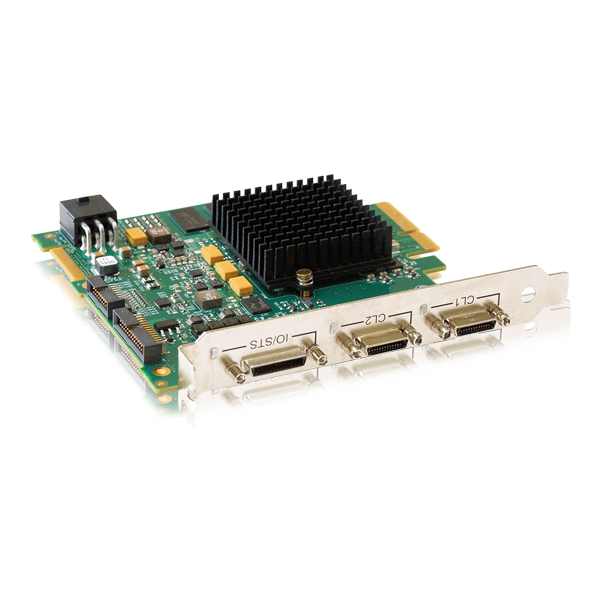

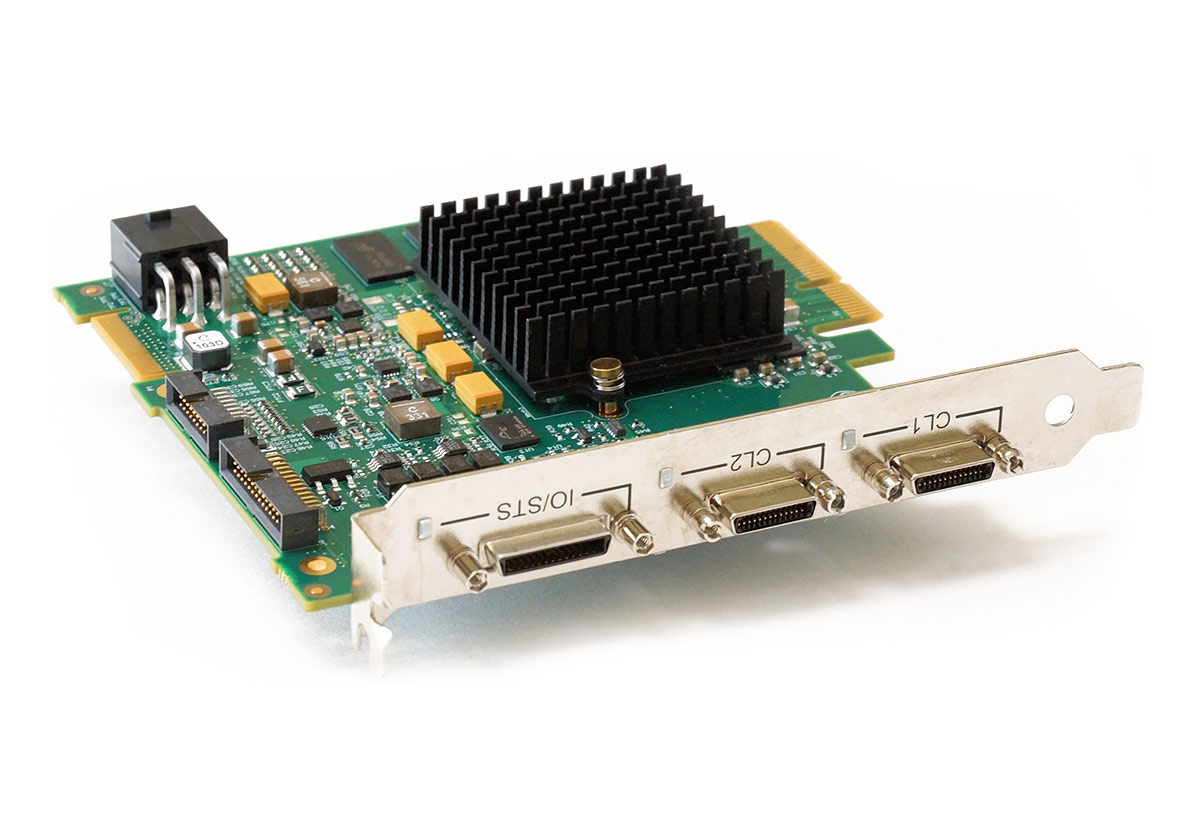

Building on the field proven capability of Teledyne DALSA’s Xcelera frame grabber series, the Xtium™-CL MX4 is based on industry standard PCI Express™ Gen 2.0 expansion bus to deliver high speed access to host memory. The new Xtium series offers higher bandwidth to sustain Camera Link® 80-Bit modes over longer cable distances and supports a wide variety of area and line scan color/monochrome cameras, all in a compact, half-length, single slot solution.
With great bandwidth comes great responsbility
The Xtium-CL MX4 takes full advantage of PCIe Gen 2.0 x4 platform to deliver a bandwidth in excess of 1.7GB/s, while at the same time supporting PCIe Gen 1.0 slot to deliver 850MB/s. The newly engineered, on-board, Data Transfer Engine (DTE) produces maximum bandwidth without the need for specialized motherboards or chipsets. By enabling maximum sustained throughput and ready-to-use image data, the Xtium-CL MX4 minimizes CPU usage and improves processing times for the host applications. In addition, the Xtium series has been engineered with enhanced memory architecture allowing it to handle different sensor tap topologies while sustaining color decoding at the maximum frame/line rate.
Great features to make your job easier

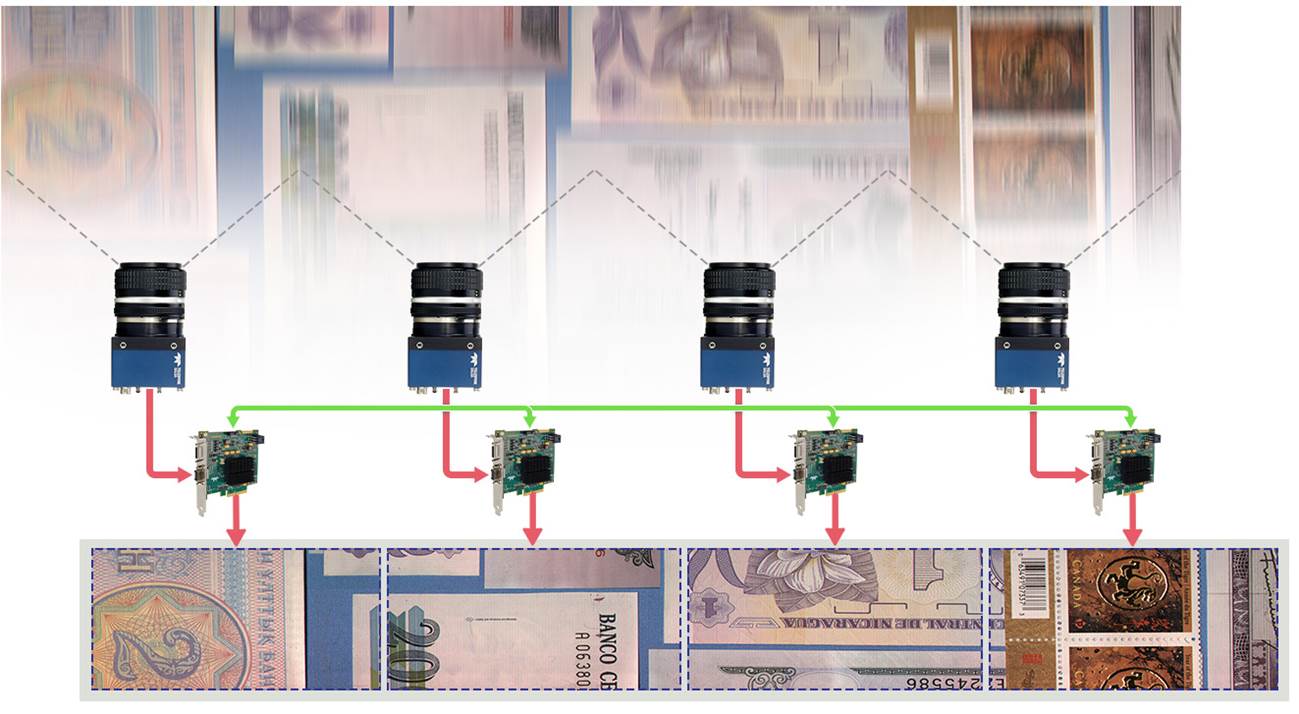

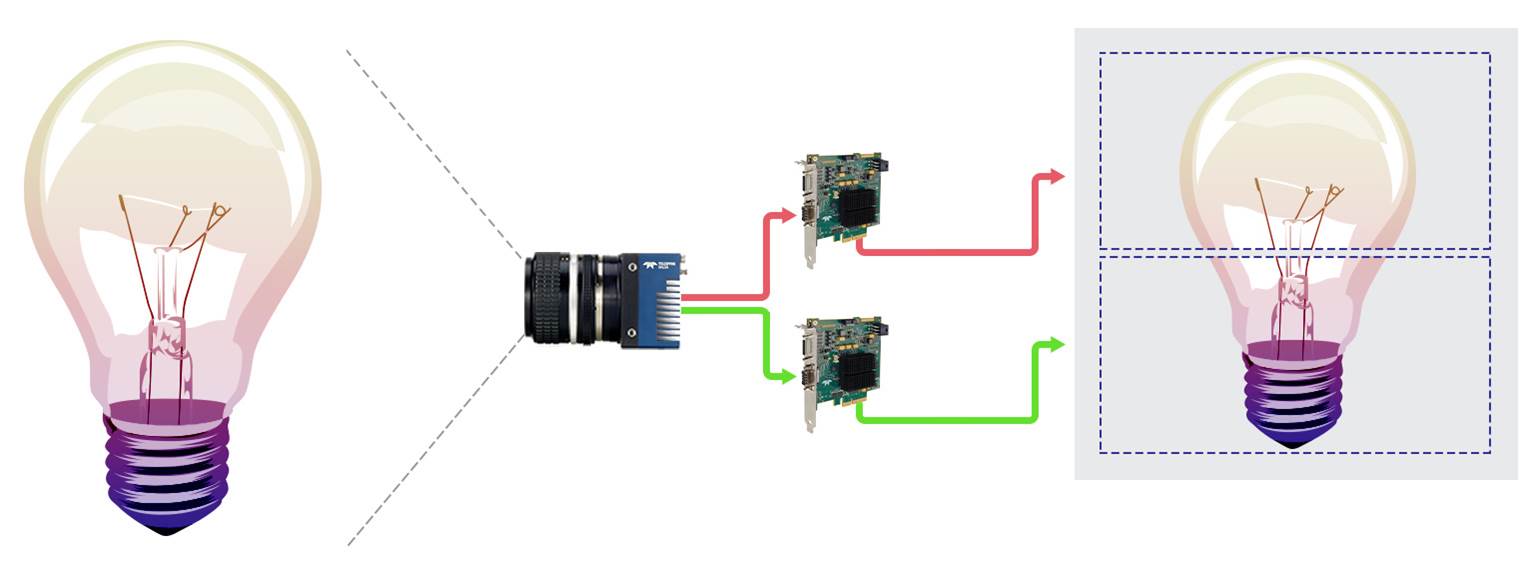

The Xtium-CL MX4 offers built-in, robust electrical signals for external event synchronization, and status notification LEDs. One or more boards can be synchronized to acquire images from multiple area or line scan cameras simultaneously. The Xtium-CL MX4 supports Base, Medium, Full or 80-Bit mode Camera Link area and line scan, color and monochrome cameras with PoCL capabilities. And all Xtium-CL frame grabbers are built with Teledyne DALSA's Trigger to Image Reliability framework, which controls and monitors the entire process from trigger through image capture and transfer to host memory and helps protect you from data loss.
The Xtium series is engineered to meet the ever-increasing image resolution and faster frame rates of today’s camera technology. So in addition to PCIe Gen 2.0 x4 and Camera Link, upcoming models will support Camera Link HS as well as other emerging interface standards on a PCIe Gen 2.0 x8 platform.
Specifications
- Part Number
- OR-Y4C0-XMX00
- Board Type
- PCIe
- Host Bus
- PCI Express Gen3 x8
- Board Interface
- Camera Link
- Connectors
- Data: 2 x SDR (mini Camera Link) Camera Contro & GPIOs: 1 x DH60-27pin on main bracket 1 x 26-pin for internal connections Multi-board sync: 1 x 16 shrouded connector
- Camera Format
- 2x CameraLink Base or 1x CameraLink Medium, Full or 80-bit (Deca)
- Pixel Clock
- 20 to 85 MHz
- Transmission Rate
- 85 MHz
- Bits Per Pixel
- 8, 10, 12, 14 and 16-bit/pixel
- Number of Camera Taps
- 1 Tap – 8/10/12/14/16-bit mono/bayer; 8/10/12-bit RGB
2 Taps – 8/10/12-bit mono/bayer; 8-bit RGB
3 Taps – 8/10/12-bit mono/bayer
4 Taps – 8/10/12-bit mono/bayer64-bits:
8 Taps – 8-bit mono/bayer
Full packed 8-bit RGB/BGR/RGBY
80-bit:
8-Taps – 10-bit/pixel mono/bayer
10 Taps – 8-bit/pixel mono/bayer
Packed 8/12-bit RGB/BGR or
Packed 8-bit Bi-Color
- Camera Control
- External Trigger input, Strobe output, Quadrature Encoder Input
- GPIO
- 4 Opto-coupled inputs, usable as trigger inputs 8 LvTTL outputs, usable as strobe outputs
- Frame Buffer
- 512 MB
- Features
- Power Over Camera Link (PoCL), Input Lookup Tables, Flat-field/Flat-line Correction, Bayer decoding, Bi-color conversion Dead Pixel (3 x 2) replacement, User programmable 3 x 3 convolution filter, Metadata, Strobe cycling/line-by-line
- Software
- Sapera LT SDK, Sapera Vision Software
- OS Support
- Windows 7 (32-bit)*, Windows 7 (64-bit)*, Windows 8 (32-bit), Windows 8 (64-bit), Windows 10 (32-bit), Windows 10 (64-bit), Linux (64-bit), WoW64
* Contact DALSA sales for more details
- Input Camera Port
- Up to 10-taps
