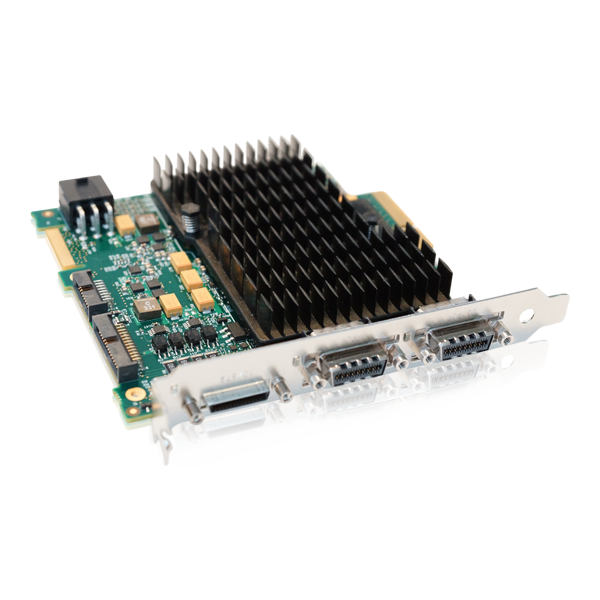

Xtium-CLHS PX4 for Camera Link HS 1 thru 4-lane operations and features Data forwarding capabilities for distributed image processing
Key Specs
- Board Type
- Camera Support
- Bandwidth
- Half-length PCI Express Gen2 x 4 board
- Camera Link HS (CX4/AOC)
- Input: 2 GB/s; Output: 1.5 GB/s sustained
Xtium Overview
Feature-Rich CLHS, CL, and CXP Acquisition and Processing
The Xtium series offers high performance frame grabbers for CameraLink, CameraLink HS and CoaXPress interface standards. The Xtium Series takes full advantage of PCIe Gen 2.0 platform to deliver bandwidth up to 3.4 GB/s using PCIe x8 slots.
Great Features to Make Your Job Easier
The Xtium Family features high-performance on-board, Data Transfer Engine (DTE) to deliver maximum bandwidth without the need for specialized motherboards or chipsets. By enabling maximum sustained throughput and ready-to-use image data, the Xtium Family minimizes CPU usage and improves processing times for host applications.
Free Acquisition and Control Software Libraries
The Xtium and Xtium2 series of frame grabbers are fully supported by Sapera LT SDK. Sapera LT SDK is an image acquisition and control software development toolkit (SDK) for Teledyne’s cameras and frame grabbers. Hardware independent by nature, Sapera LT offers a rich development ecosystem for machine vision OEMs and system integrators.
Advanced CLHS Acquisition and Processing
Building on the field proven capability of Teledyne DALSA’s Xcelera frame grabber series, the Xtium™-CLHS PX4 is based on AIA’s CameraLink HS standard and uses PCI Express™ Gen 2.0 expansion bus to deliver high speed image acquisition and image transfer to the host memory. Xtium-CLHS uses industry standard CX4 cable to delivery up to 2.1 GB/s of image acquisition over a single cable to go beyond 15m and host transfer speeds of up to 1.7GB/sec - all in a compact, half-length, single slot solution.
