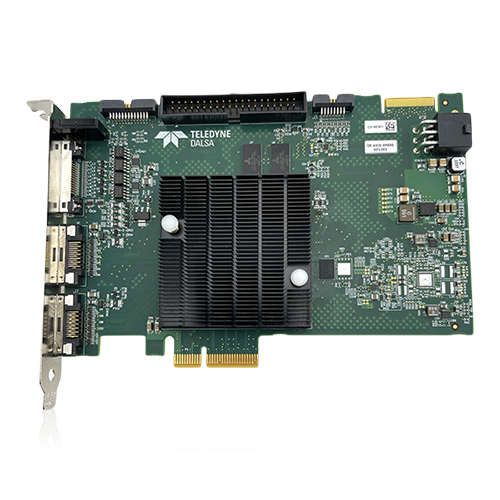

Building on the field-proven capability of Teledyne DALSA’s Xtium frame grabber series, the Xtium2™-CL MX4 is based on industry standard PCI Express™ (PCIe) Gen 3.0 expansion bus and is fully compatible with PCIe 2.x to deliver high-speed access to host memory. Compliant with the AIA’s CameraLink® (CL) standard, the Xtium2-CL MX4 supports area/line-scan color/monochrome cameras. Its flexible front-end supports either two CL Base cameras or one CL Medium, Full, or 80-bit camera.
Key Specs
- Board Type
- Camera Support
- Bandwidth
- Half-length PCI Express Gen 3.0 x 4 board
- Camera Link (2xSDR)
- Input: 850 MB/s; Output: 1.5 GB/s sustained

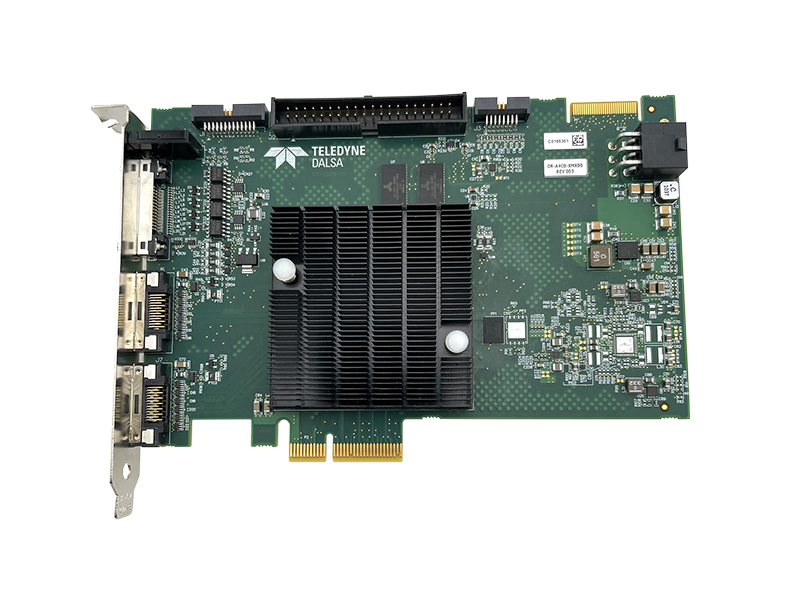

Xtium2 Overview
Proven Capability. High Speeds. Full Compatibility.
Building on the field proven capability of Teledyne DALSA’s Xtium™-CL MX4, the Xtium2™-CL MX4 supports Camera Link® standard and a wide variety of area and line scan color/monochrome camera configurations.
With Great Bandwidth Comes Great Responsibility
The Xtium2-CL MX4 delivers sustained bandwidth more than 1.7GB/s, while supporting PCIe Gen 3, 2 and 1 slots. Specifically designed to ease the supply chain constraints, the Xtium2-CL MX4 feature identical feature set as Xtium-CL MX4. Customers can use either board interchangeably with a little to no change to their applications, ensuring a consistent and improved supply.
The proven on-board Data Transfer Engine (DTE) delivers maximum bandwidth with no specialized motherboards or chipsets. By enabling maximum sustained throughput and ready-to-use image data, the Xtium2-CL MX4 minimizes CPU usage and improves processing times for the host applications.
Outstanding Features to Make Your Job Easier

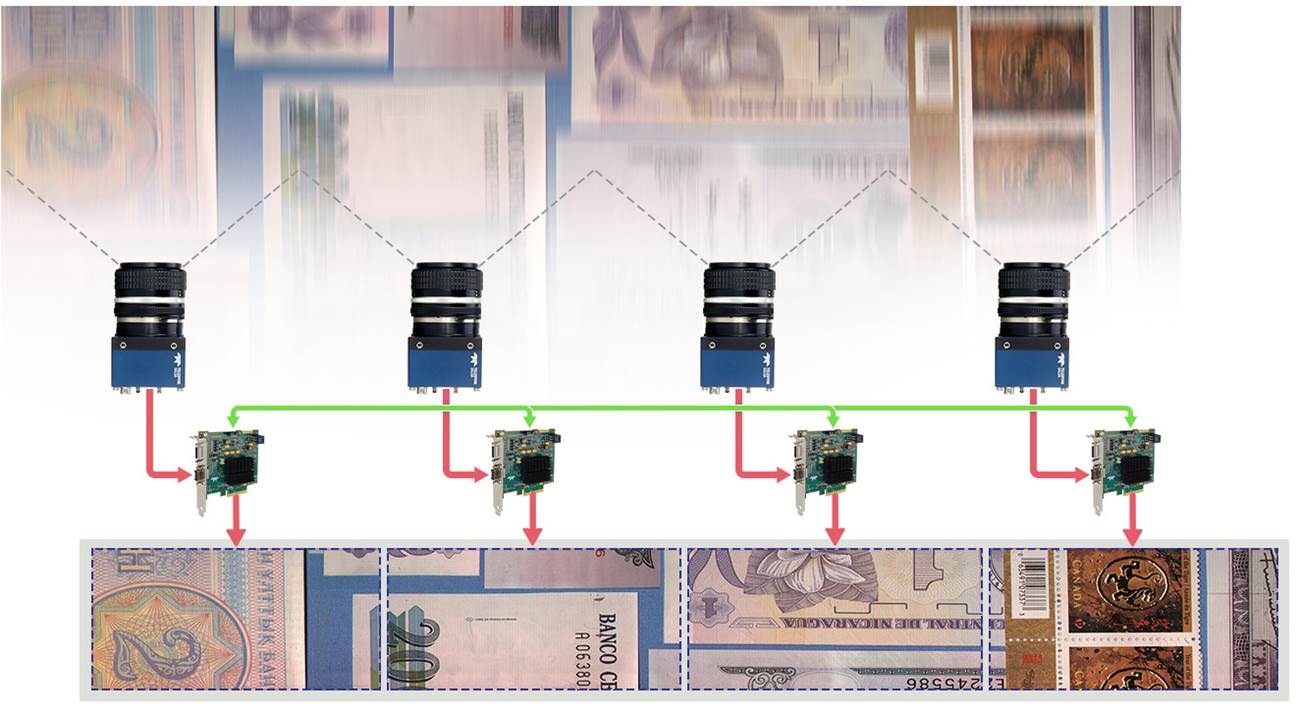

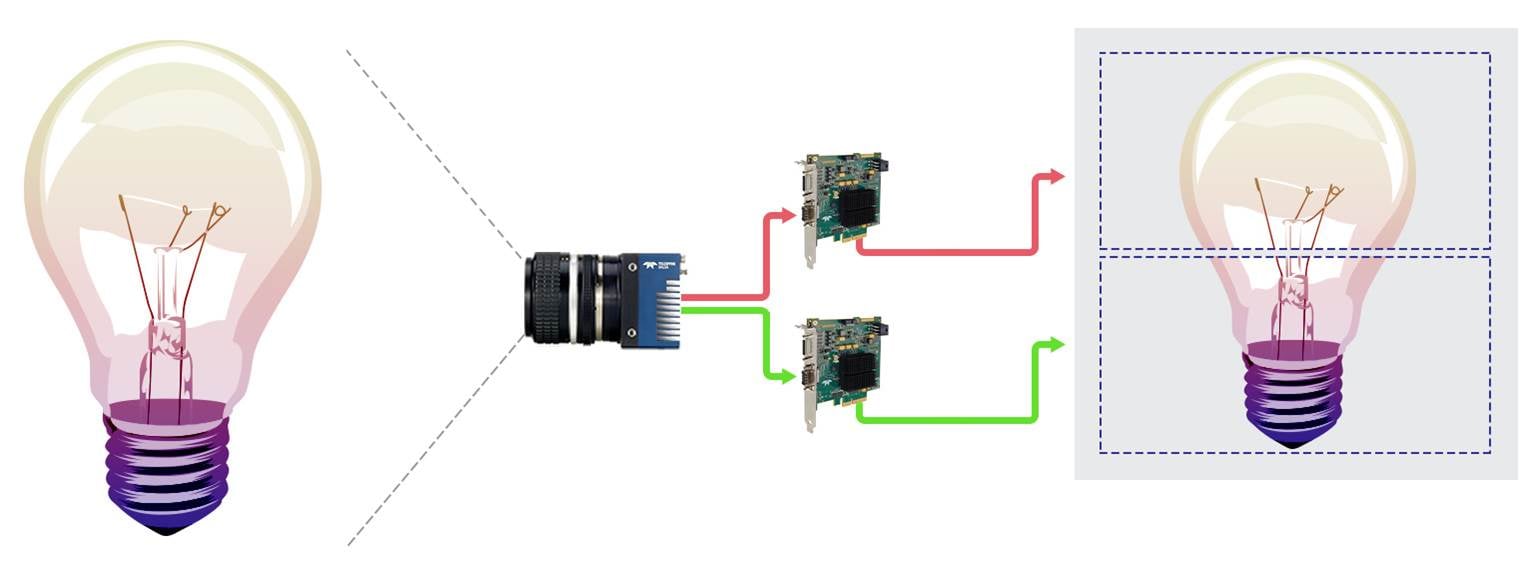

The Xtium2-CL MX4 offers built-in, robust electrical signals for external event synchronization, and status notification LEDs. It can synchronize one or more boards to capture images from multiple area or line scan cameras simultaneously. The Xtium2-CL MX4 supports Base, Medium, Full or 80-Bit mode Camera Link area and line scan, color and monochrome cameras with PoCL capabilities.
Teledyne DALSA’s frame grabbers employ Trigger to Image Reliability framework to control and monitor the entire image capture process from a trigger through capture and transfer images to host memory and notify if any event and/or data loss occurs. As a leading supplier of machine vision components, Teledyne DALSA offers frame grabbers that comply with leading machine vision camera interface standards and supports its own and 3rd party cameras.
Free Acquisition and Control Software Libraries
The Xtium and Xtium2 series of frame grabbers are fully supported by Sapera LT SDK. Sapera LT SDK is an image acquisition and control software development toolkit (SDK) for Teledyne DALSA'S cameras and frame grabbers. Hardware independent by nature, Sapera LT offers a rich development ecosystem for machine vision OEMs and system integrators. Sapera LT SDK supports image acquisition from cameras and frame grabbers based on standards including GigE Vision™, Camera Link®, CoaXPress®, and Camera Link HS™.
Specifications
- Part Number
- OR-A4C0-XMX00
- Board Type
- PCIe
- Host Bus
- PCI Express Gen3 x8
- Board Interface
- Camera Link
- Connectors
- Data: 2 x SDR (mini Camera Link) Camera Control and GPIOs: 1 x DH60-27pin on main bracket 1 x 26-pin for internal connections Multi-board sync: 1 x 16 shrouded connector
- Camera Format
- 2 x Camera Link Base or 1 x Camera Link Medium, Full or 80-bit (Deca)
- Pixel Clock
- 20 - 85 MHz
- Transmission Rate
- 85 MHz
- Bits Per Pixel
- Mono: 8, 10, or 12-bit/pixel; RGB: 8, 10 or 12-bit/pixel/color; Bayer: 8, 10 and 12-bit/pixel; Bicolor(RG,BG): 8-bit/color (line scan)
- Number of Camera Taps
- 1 Tap - 8/10/12/14/16-bit mono/bayer; 8/10/12-bit RGB
2 Taps - 8/10/12-bit mono/bayer; 8-bit RGB
3 Taps - 8/10/12-bit mono/bayer
4 Taps - 8/10/12-bit mono/bayer64-bits:
8 Taps - 8-bit mono/bayer
Full packed 8-bit RGB/BGR/RGBY
80-bit:
8 Taps - 10-bit/pixel mono/bayer
10 Taps - 8-bit/pixel mono/bayer
Packed 8/12-bit RGB/BGR or
Packed 8-bit Bi-Color
- Camera Control
- External Trigger input, Strobe output, Quadrature Encoder Input
- GPIO
- 4 Opto-coupled inputs, usable as trigger inputs 9 LvTTL outputs, usable as strobe outputs
- Frame Buffer
- Flat-field/Flat-line Correction
- Features
- Power Over Camera Link(PoCL), Input Lookup Tables, Flat-field/Flat-line Correction, Bayer decoding, Bi-color conversion Dead Pixel (3 x 2) replacement, User programmable 3 x 3 convolution filter, Metadata, Strobe cycling/ine-by-line
- Software
- Sapera LT SDK, Sapera Vision Software
- OS Support
- Windows 7 (32-bit)*, Windows 7 (64-bit)*, Windows 8 (32-bit), Windows 8 (64-bit), Windows 10 (32-bit), Windows 10 (64-bit), Linux (64-bit), WoW64
* Contact DALSA sales for more details
