Xtium2-CLHS PX8

Model: Xtium2-CLHS-PX8

Xtium-CLHS PX8 for CameraLink HS 1 thru 7-lanes operations using CX4 connector. The CX4 connector supports Active Optica cable (AOC) for greater flexibility and extended cables lenghts. A dedicated CX4 connector enables distributed image processing at the maximum input bandwidth.

Key Specs

Board Type
Camera Interface
Bandwidth: Half-length PCI Express Gen 3 x 8 board; Camera Link HS (CX4/AOC); Input: 8.4 GB/s; Output: 6.8 GB/s sustained

In Production

Xtium2 Overview

By enabling maximum sustained throughput and ready-to-use image data, the Xtium2 series minimizes CPU usage and improves processing times for the host applications. In addition, the Xtium2 series offers enhanced memory architecture to handle area and line scan, monochrome and color cameras. The Xtium2 series offers high performance frame grabbers for CameraLink, CameraLink HS and CoaXPress interface standards.

The Next Generation of Frame Grabbers

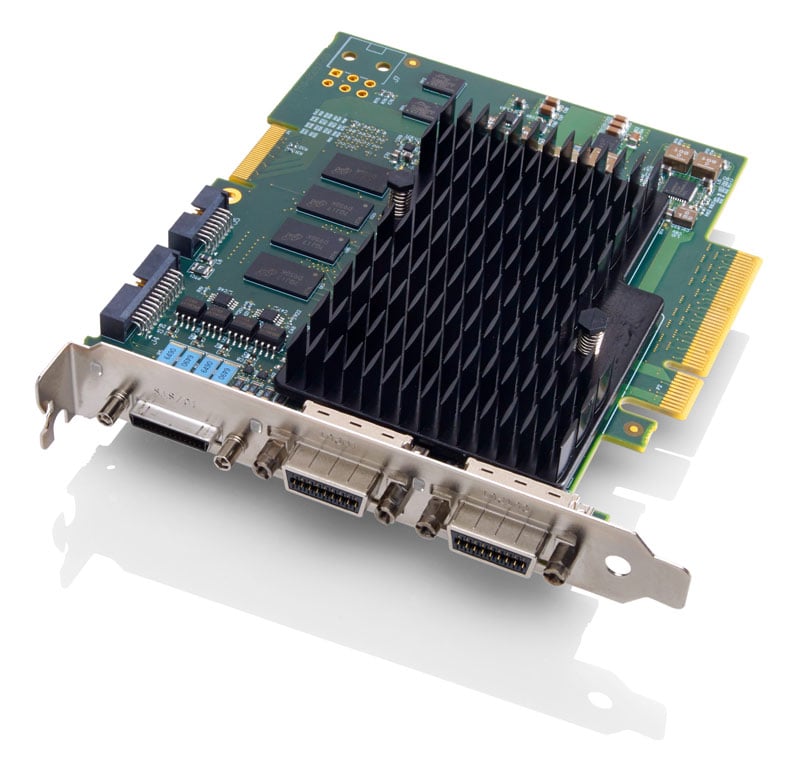

Building on the field proven Teledyne DALSA’s Xtium family of frame grabbers, the Xtium™ 2 CLHS PX8 features CameraLink HS standard on the PCI Express™ Gen 3.0 platform. The Xtium2-CLHS supports Active Optical Cable (AOC) and industry standard CX4 cables. This single cable, single slot solution supports up to 7-CLHS lanes, each operating at 10.3 Gbits/s, to acquire images at up to 8.4 GBytes/s and transfer them using PCIe x8 slots to the host memory.

Built to Support the Next Generation of Machine Vision Cameras

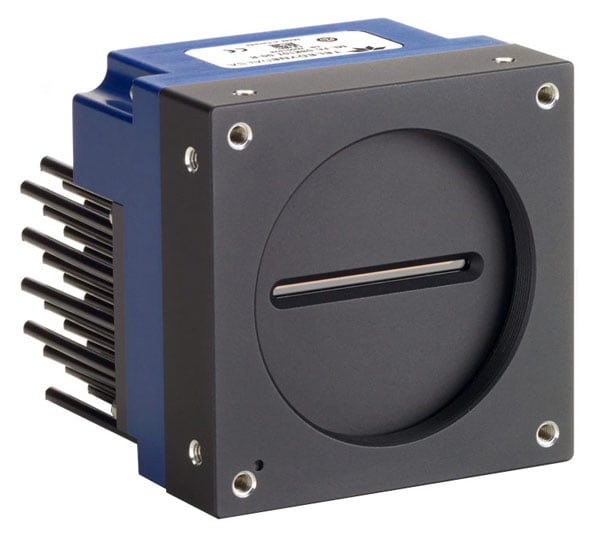

The Linea ML brings leading edge CMOS technology that is faster than ever, with affordable multiline architecture that enables the newest, most powerful inspection techniques including HDR, color and multispectral analysis, and multi-field imaging (single-pass bright/darkfield). With a native fiber optic interface for easy, low-cost long distance cabling, Linea ML opens new horizons in inspection.

Together, Xtium2 and Linea ML enable the newest and most demanding vision applications.

Free Acquisition and Control Software Libraries

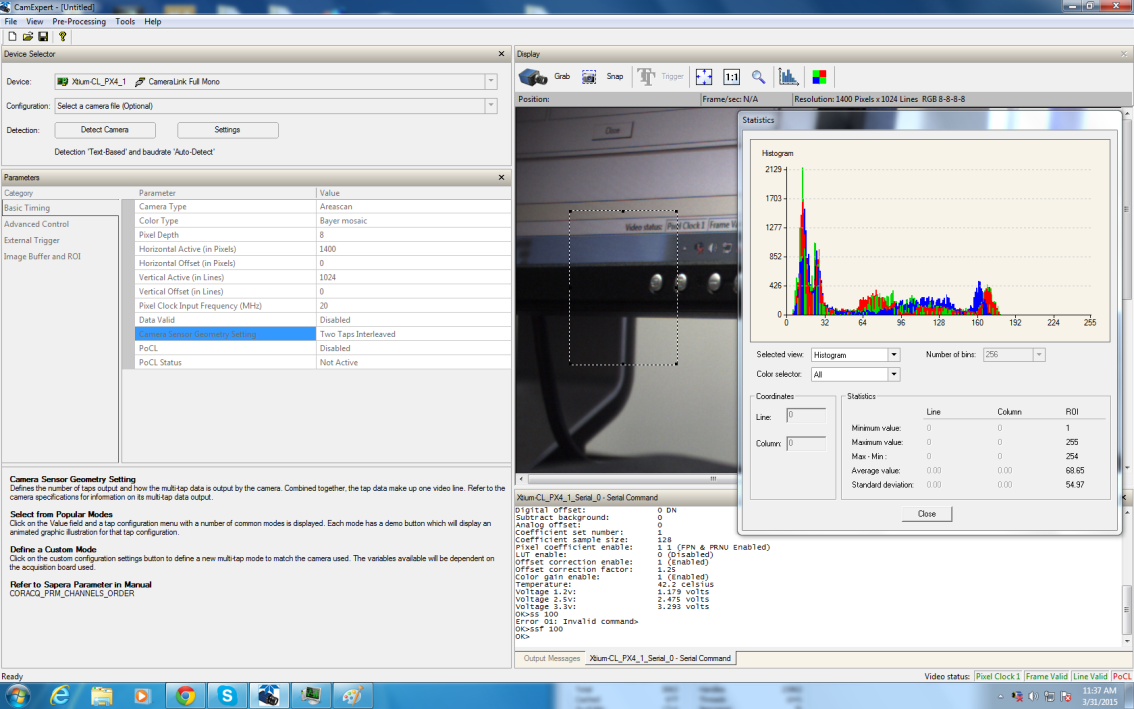

The Xtium and Xtium2 series of frame grabbers are fully supported by Sapera LT SDK. Sapera LT SDK is an image acquisition and control software development toolkit (SDK) for Teledyne DALSA'S cameras and frame grabbers. Hardware independent by nature, Sapera LT offers a rich development ecosystem for machine vision OEMs and system integrators. Sapera LT SDK supports image acquisition from cameras and frame grabbers based on standards including GigE Vision™, Camera Link®, CoaXPress®, and Camera Link HS™.

Fully supported by Sapera™ Vision SDK

When combined with a compatible Teledyne DALSA frame grabber, standard Sapera Processing run-time licenses are offered at no additional charge. Sapera Processing is at the heart of Sapera Vision Software, delivering a suite of image processing and analysis functions. These functions include over 400 image processing primitives, barcode tools, pattern matching tools (both area-based and edge-based), OCR, color and blob analysis, measurement, and calibration tools for perspective and lens correction. The standard tools run-time license includes access to image processing functions, area based (normalized correlation based) template matching tools, blob analysis, and lens correction tools.

Specifications

Part Number: OR-A8S0-PX870

Board Type: PCIe

Host Bus: PCI Express Gen3 x8

Board Interface: Camera Link HS

Connectors: Data Input: 1 x CX4 thumbscrew, AOC ready Data Forward: 1 x CX4 thumbscrew, AOC ready Camera Control I/O: 1 x DH60-27P (main bracket) 1 x 26-pin shrouded header Multi-board sync: 1 x 16-pin shrouded connector

Camera Format: CLHS X-protocol (64 b/66 b): up to 7-lanes @ 10.3125 Gb/s

Transmission Rate: 7 x 10.3125 Gbs

Bits Per Pixel: Mono: 8, 10, 12-bit/pixel; RGB: 8 or 12-bit/pixel/color (no alignment)

Camera Control: External Trigger input, Strobe out, Quadrature Encoder, Mulit-board Sync., Camera control through GenCP/SFNC, Bit-Error detection and correction

GPIO: 4x opto-couple(2 shared with External Trig); 8 LVTTL Outputs (1 shared with Strobe)

Frame Buffer: 512 MB

Features: Data-Forwarding for distributed image processing, Multi-Board Synchronization: grab images from multiple independent cameras in one image buffer, Long cable lengths (AOC), Real-time, user selectable image processing, Supports T2IR (Trigger2Image Reliability) framework

Software: Sapera LT SDK, Sapera Vision Software, NB: Contact Teledyne DALSA sales for Linux availability

OS Support: Windows 7 (32-bit)*, Windows 7 (64-bit)*, Windows 8 (32-bit), Windows 8 (64-bit), Windows 10 (32-bit), Windows 10 (64-bit), Linux (64-bit), WoW64

* Contact DALSA sales for more details
