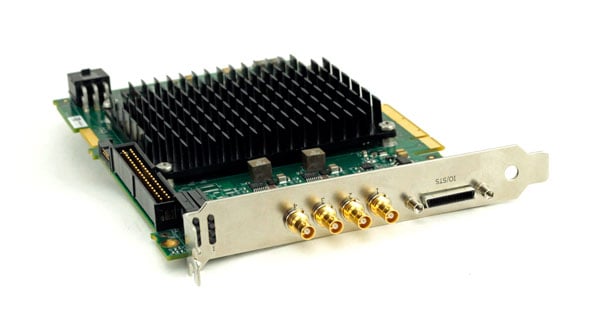

Xtium2-CXP PX8 Single/Dual/Quad

The Next Generation of CXP12 Frame Grabbers

The Xtium2™-CXP PX8 series is based on the industry standard PCI Express™ Gen 3.0 and CoaXPress ver 2.0 to transfers image data to the host memory at maximum acquisition rates. The Xtium2-CXP series takes full advantage of PCIe Gen 3.0 platform using PCIe x8 slots to deliver bandwidth up to 6.4GB/sec into the host memory while supporting image acquisition from up to 4 CXP12 input channels (12.5Gbps per channel). The Xtium2 CXP series is available in three configurations:

• Single port
• Dual port

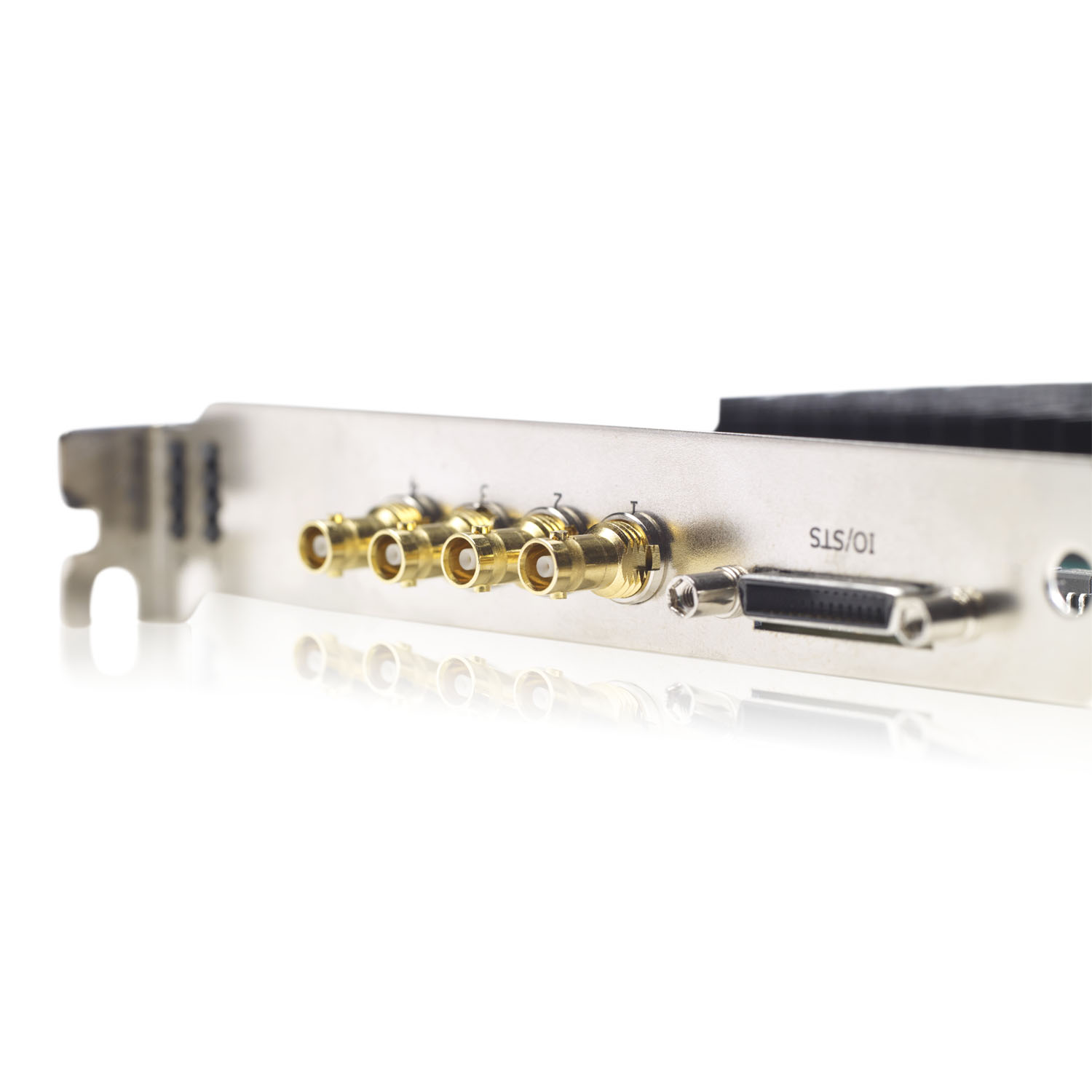

• Quad port (up to 4 x 12.5 Gbs inputs)

By enabling maximum sustained throughput and ready-to-use image data, the Xtium2 series minimizes CPU usage and improves processing times for the host applications. In addition, the Xtium2 series offers enhanced memory architecture to handle area and line scan, monochrome and color cameras. The Xtium2 series offers high performance frame grabbers for CameraLink, CameraLink HS and CoaXPress interface standards.

Free Acquisition and Control Software Libraries

The Xtium and Xtium2 series of frame grabbers are fully supported by Sapera LT SDK. Sapera LT SDK is an image acquisition and control software development toolkit (SDK) for Teledyne DALSA'S cameras and frame grabbers. Hardware independent by nature, Sapera LT offers a rich development ecosystem for machine vision OEMs and system integrators. Sapera LT SDK supports image acquisition from cameras and frame grabbers based on standards including GigE Vision™, Camera Link®, CoaXPress®, and Camera Link HS™.

Fully supported by Sapera™ Vision SDK

When combined with a compatible Teledyne DALSA frame grabber, standard Sapera Processing run-time licenses are offered at no additional charge. Sapera Processing is at the heart of Sapera Vision Software, delivering a suite of image processing and analysis functions. These functions include over 400 image processing primitives, barcode tools, pattern matching tools (both area-based and edge-based), OCR, color and blob analysis, measurement, and calibration tools for perspective and lens correction. The standard tools run-time license includes access to image processing functions, area based (normalized correlation based) template matching tools, blob analysis, and lens correction tools.
