Topaz5D
Topaz5D™ is a 1,920 × 1,080 resolution image sensor featuring low noise, global shutter technology, and dual 2D/3D imaging capabilities. Designed with Teledyne e2v’s proprietary CMOS technology and with specialized 3D post-processing optical layers, it simultaneously delivers uncompromised 2D and 3D data on a single sensor.

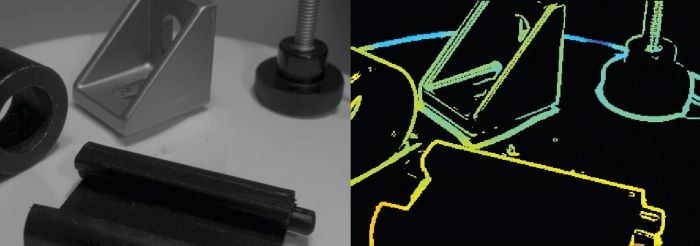

Innovative Sensor Technology
Topaz5D has 2.5 μm pixels and is housed in a tiny Chip Scale Packaging (CSP) which makes it ideal for space limited mobile applications. This sensor includes a truly innovative ‘angular sensitive pixel’ technology, so it can generate RAW 3D data, for real-time software processing of 3D depth maps.

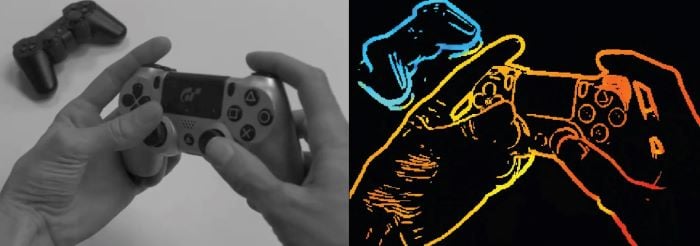

No Illumination Required
Indoor or outdoor and whatever the colors involved, all contrast differences and object edges are delineated with clarity in 3D vision. 2D images and 3D depth maps are delivered at very fast video frame rates with low power consumption and no additional specific lighting is required, keeping systems costs to a minimum.

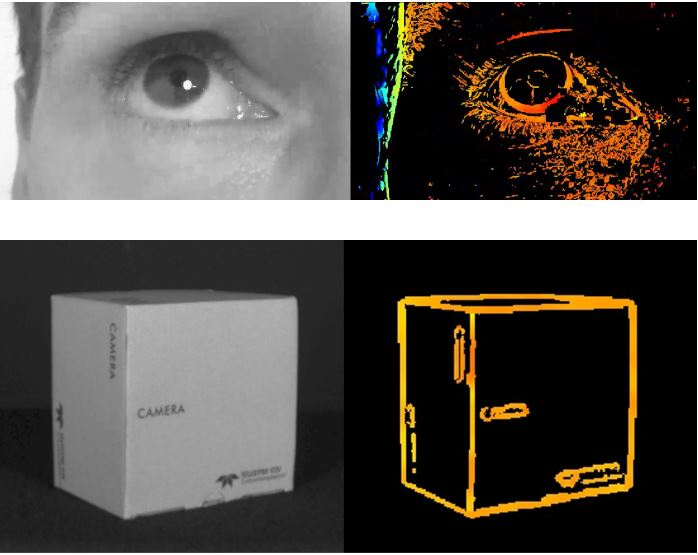

Applications
- Consumer household cleaning robots
- Autonomous Mobile Robot (AMR)
- AR/VR headsets for hand/eye tracking
- 3D assisted access control and anti-spoofing
- Logistics; box dimensioning (fixed or handheld), label placement, tote filling and pallet inspection, pick & place stations, etc.
Model Finder
| Product | Resolution | Pixel Pitch (µm) | Shutter Type | Frame/Line Rate | Status | Compare |
|---|---|---|---|---|---|---|
Topaz5D Mono (with foil)EV2S02MB-PM26201-T |
2M | 2.5 | Global | 65 fps | In Production Request Info |
|
Topaz5D Color (with foil)EV2S02MC-PM26101-T |
2M | 2.5 | Global | 65 fps | In Production Request Info |
|
Media gallery
Resources & Support
Below are assets shared by all models of this product family.
For model-specific assets, select an option in the Model Finder above.
Standard CMOS Image Sensor Guide
Topaz5D Flyer
