CoaXpress® Cameras

Teledyne’s CoaXPress® (CXP) cameras offer high bandwidth potential in imaging applications. With CoaXPress, cameras can use traditional coax cables that span longer distances than many other types of cameras. Using Teledyne’s latest frame grabber technology, vision systems can take advantage of even higher frame rates with higher-resolution sensors. Whatever the application, CoaxPress cameras will be able to transfer large amounts of image data without losing any clarity.

CoaXpress® Cameras

Advantages

Enable High-Speed High-Resolution Cameras

Frame grabber technology from Teledyne is capable of depacketizing the image data at industry leading speeds that would otherwise leave a PC crippled from the constant 24 / 7 use expected from industrial applications such as machine vision. Having this dedicated piece of hardware to processes data allows the vision system to reduce strain on the host PC and improve reliable performance.

All-in-one Cable Solutions

With 6.25 Gbps possible over a single cable and up to 25 Gbps using 4 cables, CoaXPress cameras can reach incredible speeds over longer distances. With higher end coax cables, CoaxPress can send power and data all through a single cable.

Synchronized Workflow

Multiple cameras can be connected over a frame grabber for synchronized use. Reliable hardware synchronization has become standard for CoaXPress Cameras with trigger latencies of 3.4 microseconds or with speeds potentially as fast as 150 nanoseconds with a high-speed uplink.

COSMOS

COSMOS

Large Format, Low-Noise Astronomy Cameras

Large 81 x 81 mm sensor size
Up to 20 fps full frame
Deeply cooled, low noise sensor

Diamond Display

Diamond Display

Mura and De-Mura Optimized Metrology Cameras

Ultrahigh‑resolution global shutter sensors
Optimized for Mura and De‑Mura display inspection
CoaXPress interface and resolutions up to 152 Mp

Diamond SWIR

Diamond SWIR

Metrology Cameras Optimized for Inline Inspection

High sensitivity across 400–1700 nm
Superior image quality via efficient cooling and optional TEC
CoaXPress interface for high‑speed SWIR imaging

Diamond UV

Diamond UV

Inline Inspection Optimized Metrology Cameras

High sensitivity below 400 nm
Superior image quality through efficient cooling
CoaxPress interface for fast UV imaging (up to 190 fps)

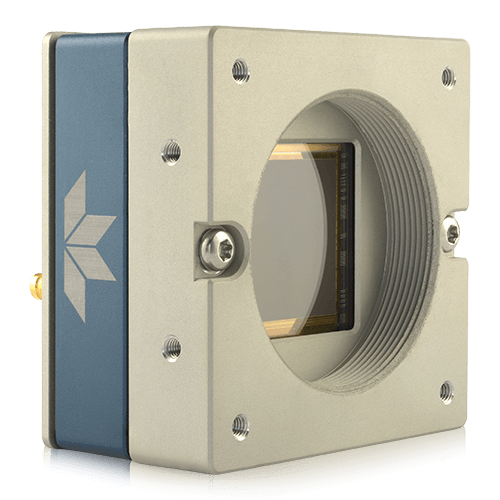

Genie Nano-CXP

Genie Nano-CXP

Compact CoaXPress Cameras

Resolutions from 16 to 67 MP
Advanced sequencer mode & Metadata
Up to 4-lanes CoaXPress 6 Gbps interface

Norite

Norite

Global Shutter CMOS, 5 Megapixel CoaXPress Camera

High‑speed platform for side‑view 3D metrology
High‑speed 5 Mp imaging up to 105 fps over a single coax cable
Optimized for unified multi‑camera operation

Quartz

Quartz

High-Speed CMOS Cameras

High‑speed, high‑resolution global‑shutter imaging
Resolutions from 5–24 Mp and up to 255 fps (820 fps with binning)
Compact, power‑efficient CoaXPress designs.

Sapphire

Sapphire

High-Resolution CMOS Global Shutter Cameras

Very high‑resolution CMOS global‑shutter imaging (25–105 Mp)
High image quality at medium frame rates for semiconductor applications
System‑friendly design with optimal thermal management

TMX CMOS

TMX CMOS

Rugged Full HD Extended Day™ Cameras

Full HD with high performance in low light
Excellent color and contrast from low‑ to high‑light scenes
Rugged, compact, low-weight design with low power consumption

TMX SWIR

TMX SWIR

Rugged HD CoaxPress SWIR Camera

Rugged HD SWIR imaging designed for long‑range observation
High‑performance InGaAs global‑shutter sensor in a sealed package
CoaXPress video output for reliable high‑bandwidth imaging
