GigE Cameras
Advantages
Ease of Use and Multi-Camera Topology
Teledyne GigE cameras have bandwidths ranging from 1Gbps to 10Gbps. Using a standard interface such as Ethernet allows GigE cameras to seamlessly integrate these transfer speeds into many systems. Additionally, cameras connected over a network have the benefit of remote access. Even without being on site, a GigE camera is always close by. This allows for multiple cameras to be connected over a network that can support synchronization over a Precision Time Protocol (PTP).
Long Range Applications

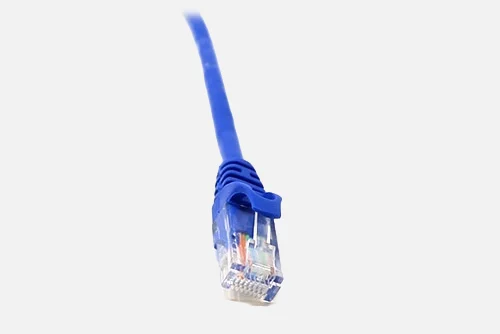

Capable of interfacing with systems over long distances with cable lengths up to 100 meters using CAT-5e or CAT-6. This is ideal for applications such as Intelligent Traffic Systems (ITS), surveillance, and sports casting.
Affordability
With a direct connect interface like GigE, simple integration can help save on costs. By not relying on extra hardware like a frame grabber, a GigE vision system is able to run directly off a host computer. Click here to learn more
Our GigE Cameras
Filters:
Linea Lite
Compact, Cost-Effective
- Up to 4K resolution
- TurboDrive™ enables full image quality at line rates up to 50 kHz sustained
- Bilinear color maximizes color fidelity
Linea
High Performance Mono GigE
- High performance at a great price point
- 2k - 16K, mono and color options
- Multiple interface options
Genie Nano 10GigE
Compact Industrial 10-Gigabit Ethernet Cameras
- Resolutions from 37.7 MP to 67 MP
- Industry’s smallest 67 MP 10GigE Vision camera
- Supports speeds of 1, 2.5, 5, & 10-Gbps GigE Vision Interface, with PoE
Linea SWIR
InGaAs GigE
- Available as 1k with 12.5 µm pixels, or 512 resolution with 25 µm pixels
- Short-Wave Infrared (950-1700 nm)
- 40 kHz line rate, GigE

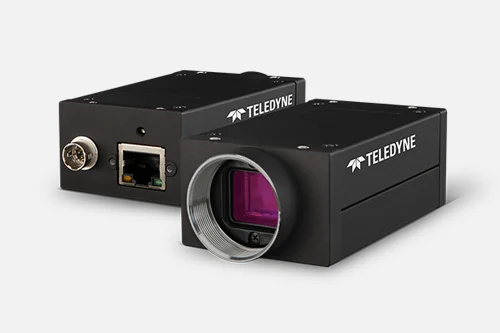

Forge 5GigE
Beyond 5GigE Performance
- Resolutions from 5 MP to 24 MP
- Up to 10GigE Burst Mode Performance with Sony Pregius S sensors
- Supports speeds of 1, 2.5, 5-Gbps GigE Vision Interface, with PoE

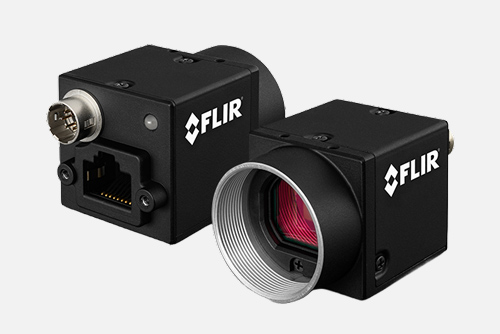

Blackfly S GigE
Light and Compact GigE camera
- Resolutions from VGA to 24 MP, visible and Polarized
- Advanced Features & Lossless Image Compression (LLC)
- Rich ISP features: Gamma, Sharpness, CCM, Sharpness, AGC with ROI
Blackfly S Board Level
Designed for Embedded Vision Systems with Complete Accessories
- Resolutions from 1.6 MP to 20 MP
- Compact and light: 29 x 29 x 12 mm / 10 g, Compatible with popular SBCs and 3rd party software
- 1-Gbps GigE Vision Interface with PoE, and USB3 Vision
Oryx 10GigE
High bandwidth image transfer
- Resolutions from 3.2 MP to 31 MP
- Rich ISP features: Gamma, Sharpness, CCM, Sharpness, AGC with ROI
- Supports speeds of 1 and 10-Gbps GigE Vision Interface, with PoE
Pylon IR
Low-Noise, Deep Cooled, InGaAs Spectroscopy Camera
- Cryogenically cooled InGaAs detector with fast spectral rate and lowest system read noise
- Integrated cold sheet reducing ambient noise
- Up to 6600 spectra/s
Evolve
High Sensitivity EMCCD
- Highly sensitive EMCCD for science
- 13 or 16 µm pixel size options
- High-speed readout
Forge 1GigE IP67
Compact IP67 solution with complete ecosystem
- Resolutions from 1.2 MP to 12 MP
- Advanced Features & Lossless Image Compression (LLC)
- 1-Gbps GigE Vision Interface, with PoE
Forge 1GigE SWIR
High-Performance, Compact, and Reliable
- Resolution up to 1.3 MP
- Very compact SWIR form factor, supports wavelengths from 400 nm to 1.7 um
- 1-Gbps GigE Vision Interface, with PoE
Genie Nano 5GigE
Beyond 5GigE Performance
- Resolutions from 3.2 MP to 45 MP
- Up to 10GigE Burst Mode Performance & Lossless Image Compression (TurboDrive)
- Supports speeds of 1, 2.5, 5-Gbps GigE Vision Interface, with PoE

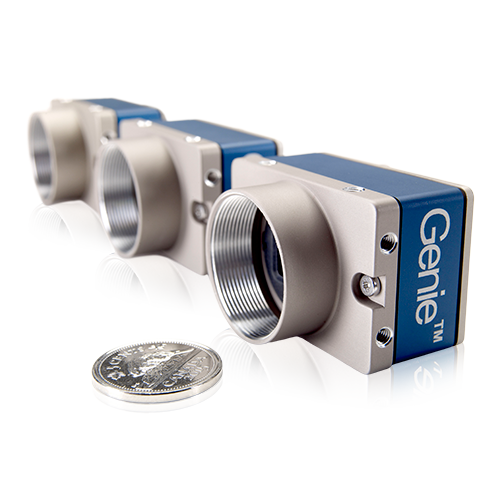

Genie Nano GigE
High Speed GigE Vision cameras with Wide temperature range
- Resolutions from 0.3 MP to 25 MP
- Up to 14 000 FPS in Partial Scan & Lossless Image Compression (TurboDrive)
- 1-Gbps GigE Vision Interface, with PoE
NIRvana
For low-light NIR and SWIR imaging and spectroscopy
- Designed for both end-user and OEM integration
- Ultra-low cooled cameras
- High sensitivity
PI-MAX 4
Ultrafast, Intensified Cameras
- Ultrashort ≤500 ps gating
- Fast 1 MHz gate opening rate
- Built-in precision timing and delay generator
ProEM
Ultralow Light Detection Camera
- Deep cooling
- ≥95% quantum efficiency
- eXcelon 3 technology
PyLoN
Extremely Low Noise Liquid Nitrogen Cooled Cameras
- -120 °C cryogenic cooling
- 1800 spectra per second
- Ultra low noise
SOPHIA
Ultra-Low-Noise CCD Cameras
- Ultra-low-noise electronics with 95% QE
- All-metal hermetically sealed vacuum design
- Engineered for dark calibration and exposure control
