PCI Express Gen3 Platform

Xtium2 Family

By enabling maximum sustained throughput and ready-to-use image data, the Xtium2 series minimizes CPU usage and improves processing times for the host applications. In addition, the Xtium2 series offers enhanced memory architecture to handle area and line scan, monochrome and color cameras. The Xtium2 series offers high performance frame grabbers for CameraLink, CameraLink HS and CoaXPress interface standards.





Introducing Xtium2 PCIe Gen3 Series

The Xtium2 series leverages the PCIe Gen3 x8 platform to deliver high- speed image transfers to host memory without CPU overhead. The Xtium2 series models are available for Camera Link HS® (AOC and SFP+), CoaXpress® (CXP12 and CXP6), and Camera Link® cameras.







Key Features

  • Long cable lengths at maximum image acquisition rates
  • Data forwarding rate for distributed image processing
  • Fully supported by Sapera Vision Software SDKs





Model Finder

Product Bits Per Pixel Camera Interface Host Interface Frame Buffer Data Link Speed Price Compare Options
Xtium2-CL MX4
Xtium2-CL-MX4
Mono: 8, 10, or 12-bit/pixel; RGB: 8, 10 or 12-bit/pixel/color; Bayer: 8, 10 and 12-bit/pixel; Bicolor(RG,BG): 8-bit/color (line scan) Camera Link PCI Express Gen3 x8 Flat-field/Flat-line Correction 20 - 85 MHz In Production Request Info Xtium2 Family

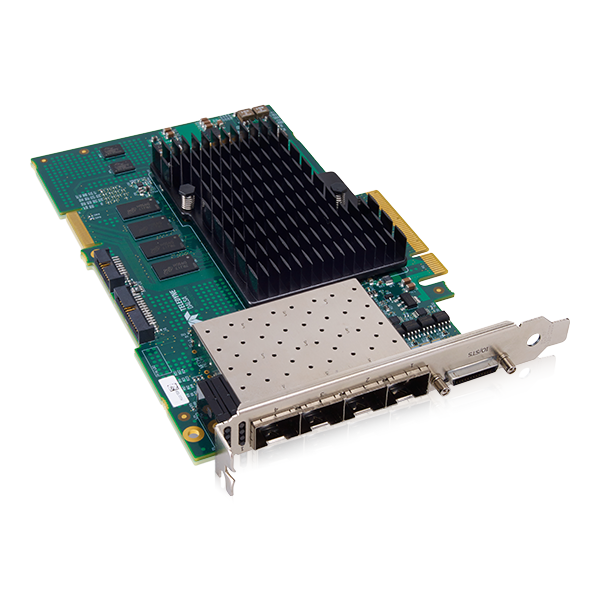

Xtium2-CLHS FX8
Xtium2-CLHS-FX8
Mono: 8, 10, 12-bit/pixel; RGB: 8-bit/pixel/color (no alignment) Camera Link HS PCI Express Gen3 x8 512 MB up to 4 x 10.315 Gbs In Production Request Info Xtium2 Family
Xtium2-CLHS FX8 LC
Xtium2-CLHS-FX8-LC
Mono: 8, 10, 12-bit/pixel; RGB: 8-bit/pixel/color (no alignment) Camera Link HS PCI Express Gen3 x8 512 MB up to 2 x 10.315 Gbs In Production Request Info Xtium2 Family
Xtium2-CLHS PX8
Xtium2-CLHS-PX8
Mono: 8, 10, 12-bit/pixel; RGB: 8 or 12-bit/pixel/color (no alignment) Camera Link HS PCI Express Gen3 x8 512 MB up to 7 x 10.315 Gbs In Production Request Info Xtium2 Family
Xtium2-CLHS PX8 HR
Xtium2-CLHS-PX8-HR
Mono: 8, 10, 12-bit/pixel; RGB: 8 or 12-bit/pixel/color (aligned) Camera Link HS PCI Express Gen3 x8 512 MB up to 7 x 10.315 Gbs In Production Request Info Xtium2 Family
Xtium2-CLHS PX8 LC
Xtium2-CLHS-PX8-LC
Mono: 8, 10, 12-bit/pixel; RGB: 8-bit/pixel/color (no alignment) Camera Link HS PCI Express Gen3 x8 512 MB up to 4 x 10.315 Gbs In Production Request Info Xtium2 Family

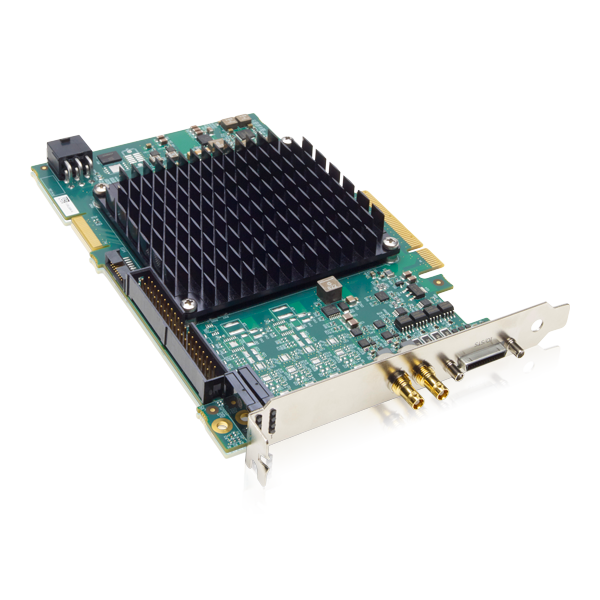

Xtium2-CXP PX8 Single/Dual/Quad
Xtium2-CXP-PX8
Mono: 8, 10, 12, 14 and 16-bit, RGB: 8, 10 or 12-bit/pixel/color, Bayer: 8, 10 and 12-bit/pixel CoaXPress PCI Express Gen3 x8 2048 MB up to 4 x 12.5 Gbs In Production Request Info Xtium2 Family
Xtium2-CXP6 PX8 Quad
Xtium2-CXP6-PX8-Quad
Mono: 8, 10, 12, 14 and 16-bit, RGB: 8, 10 or 12-bit/pixel/color, Bayer: 8, 10 and 12-bit/pixel CoaXPress PCI Express Gen3 x8 2048 MB up to 4 x 6.25 Gbs In Production Request Info Xtium2 Family
Xtium2-XGV PX8 Dual
Xtium2-XGV-PX8-Dual
Mono: 8, 10, 12, 14 and 16-bit, RGB: 8, 10 or 12-bit/pixel/color, Bayer: 8, 10 and 12-bit/pixel GigE PCIe Gen3 x 8 slot 2048 MB up to 2 x 10 Gbs In Production Request Info Xtium2 Family
Xtium2-XGV PX8 Quad
Xtium2-XGV-PX8
Mono: 8, 10, 12, 14 and 16-bit, RGB: 8, 10 or 12-bit/pixel/color, Bayer: 8, 10 and 12-bit/pixel GigE PCI Express Gen3 x8 4096 MB up to 4 x 10 Gbs In Production Request Info Xtium2 Family
