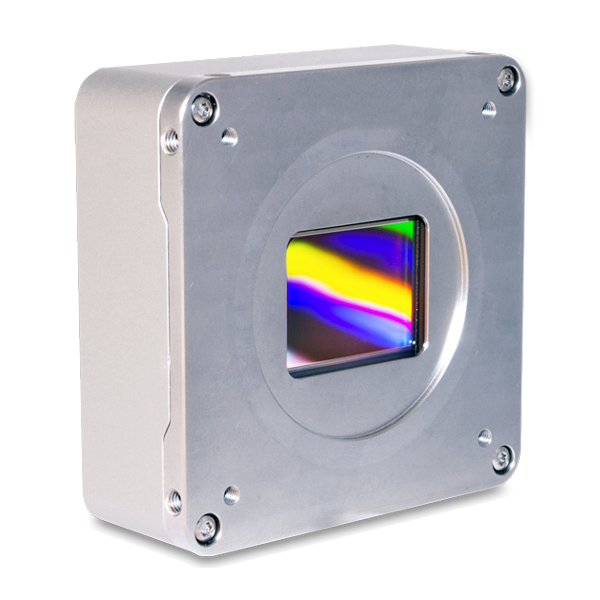

Teledyne Adimec’s DIAMOND Display camera series offer an off-the-shelf solution for the most demanding in-line display module inspection tools. Featuring ultrahigh-resolution global shutter image sensors and long-exposure DSNU correction, they enable both dark and bright inspections of LED-based displays without requiring complex mechanical or software system integrations to accommodate large variations in lighting conditions.
The DIAMOND Display series are ideal for LCD, OLED, and MicroLED display inspection applications. These cameras can be customized to meet your specific system application and architecture requirements.
Specifications
Highlighted
- Resolution
- 9344 x 7000
- Megapixels
- 65
- Max Frame Rate Standard
- 30
- Sensor Model
- Gpixel GMAX3265
- Pixel Size
- 3.2 µm x 3.2 µm
- Sensor Type
- CMOS
- Spectrum
- Mono, Color
- Data Interface
- CoaXPress – CXP 3/6 (1,2 and 4 lanes configurable)
Features
- Acquisition Modes
- Continuous or controlled
- High Dynamic Range
- No
- Removable Cover Glass
- No
- Triggering Modes
- Internal or external
Performance
- Digitization Bit depth
- 8-bit, 10-bit, 12-bit
- Dynamic Range
- > 66.4 dB
- Full Well Capacity (Qsat)
- 10.5 ke-
Physical
- Connector
- 4 x DIN1.0/2.3
- Dimensions [W x H x L]
- 80 mm x 80 mm x 29 mm
- GPIO
- Hirose 12 pin HR10A-10R-12P
- Mass
- 400 g
- Maximum Housing Temperature
- 50 °C
- Operating Humidity
- 20% - 80% non-condensing
- Operating Temperature
- +5 °C to +65°C
- Optical Format
- 37.7 mm
- Power Requirements
- 1 × 24 Vdc PoCXP
- Sensor Shutter Type
- Global Shutter
- Storage Humidity
- 5% - 95% non-condensing
- Storage Temperature
- -25°C to +65°C
Compliance & Certifications
- Compliance
- ROHS, ESD, Workmanship
- MTBF excl fan
- > 75000 h @ 30 °C
