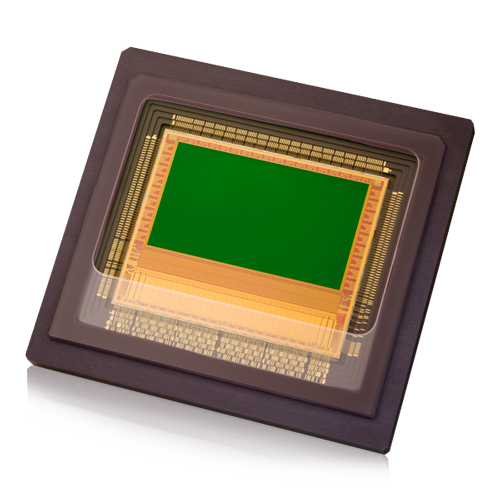

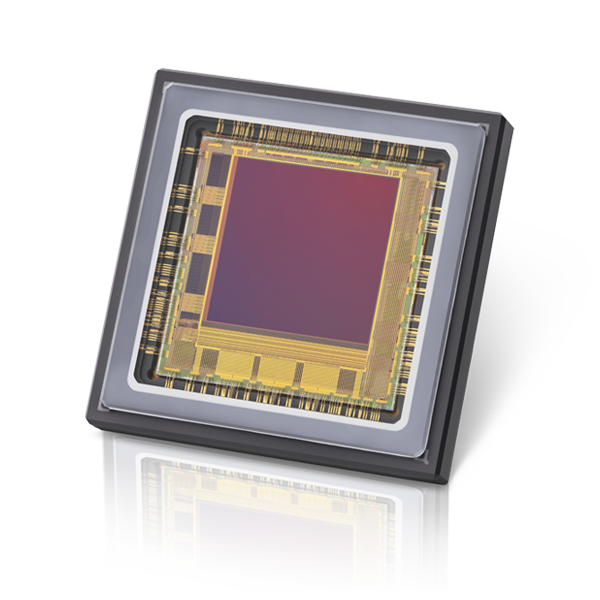

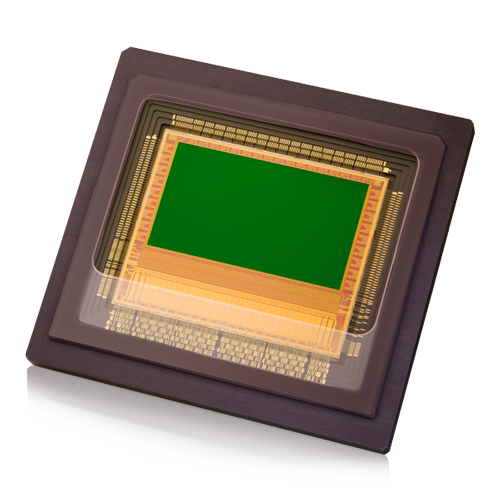

Lince
Teledyne e2v's Lince family of CMOS image sensors are designed for high-speed imaging, providing unrivaled frame rates in native resolutions from 1.3M to 11M, that can be further increased with various on-chip features. As obtaining good image quality at high-speed can be particularly challenging, Lince sensors feature large global shutter pixels providing high sensitivity and high SNR to benefit from high contrast in a very short time.
Unprecedented frame rates
Lince sensors benefit from a unique sensor architecture to provide superior frame rates that can be further increased using ROI features.
High sensitivity
Lince sensors feature large pixels (5 to 10 µm) to efficiently collect light and provide excellent contrast, even at high frame rates.
Superior SNR
Lince sensors rely on global shutter pixels, enabling high full well capacity and SNR for improved performances at high light levels.
A Broad Range of Resolutions
Available in 1.3M, 5M, 6.5M and 11M.
Recorded by Fastec using their TS5 camera with Lince5M 181 inside.
Typical Applications
High-speed, high resolution machine vision
Intelligent Transportation Systems (ITS)
Biometric & medical imaging
High speed video broadcasting
Low light surveillance
Slow motion imaging
Model Finder
| Product | Resolution | Pixel Pitch (µm) | Shutter Type | Frame/Line Rate | Status | Compare |
|---|---|---|---|---|---|---|
Lince1M3L13M1V0N |
1.3M | 10 | Global | 980 fps | Preproduction Request Info |
|
Lince5M High-SpeedL181 |
5.2M | 5 | Global | 250 fps | In Production Request Info |
|
Lince6M5L6M1V5 |
6.5M | 5 | Global, Rolling | 170 fps | Preproduction Request Info |
|
Lince11MEV2S11MB-CLV0500-T |
11.1M | 6 | Global | 609 fps | In Production Request Info |
|
Resources & Support
Below are assets shared by all models of this product family.
For model-specific assets, select an option in the Model Finder above.
Standard CMOS Image Sensor Guide
Related Products

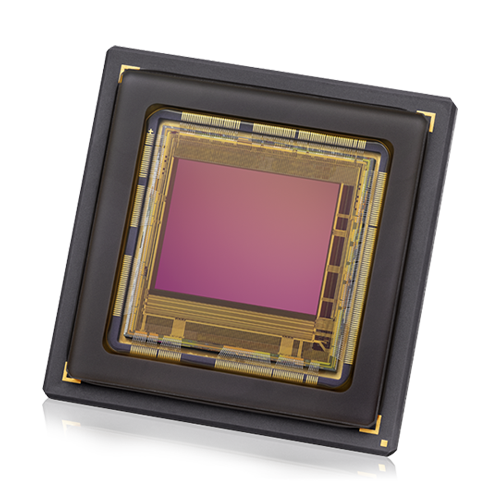

Lince5M NIR
High-Speed and NIR Sensitivity
- 5.2M resolution
- NIR enhanced (35% QE @ 850nm)
- High-speed (250 fps @ full resolution, 12-bits)
