High Performance Mono GigE

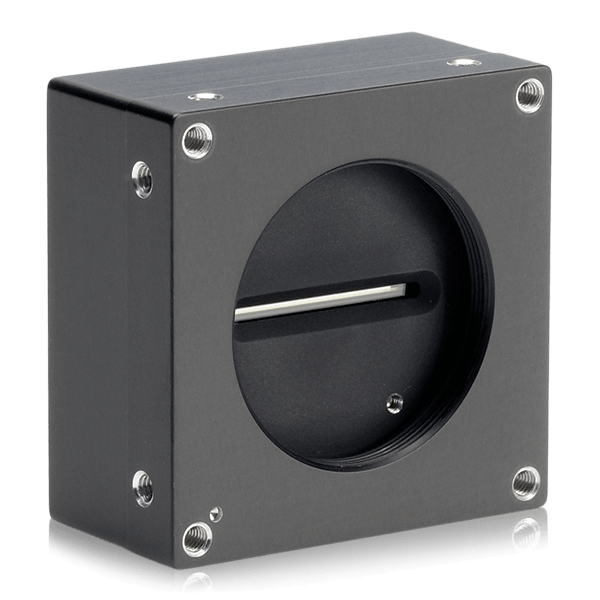

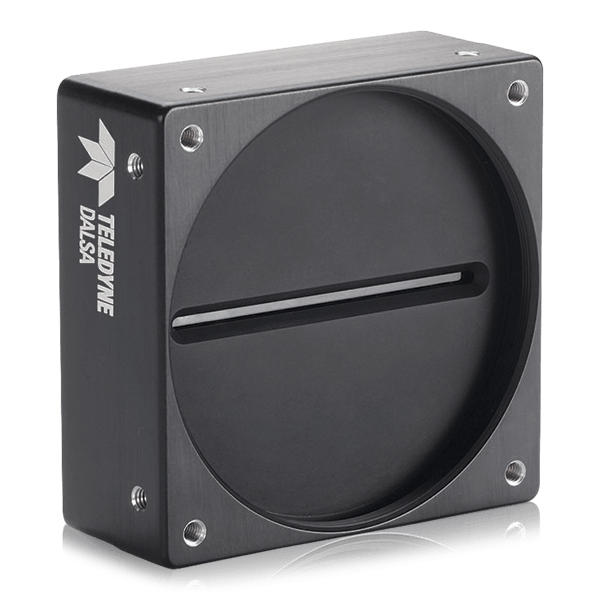

Linea

Linea line scan cameras deliver the performance and features usually found in high-end cameras at an attractive price point. Based on advanced CMOS line scan technology, Linea GigE cameras have a 2k or 4k single line 7.04 µm x 7.04 µm pixel array. With excellent sensitivity and speed, Linea surpasses the requirements of demanding applications —such as materials grading and inspection, transportation safety, and general purpose machine vision.

Watch Video




Powerful enough to use anywhere.

Affordable enough to use everywhere.

Introducing Linea, a CMOS line scan camera that can help you improve your imaging and lower your costs. Linea starts with an advanced CMOS sensor with high quantum efficiency and low noise for better images. Linea is also packed with advanced features to make your machine vision job almost effortless.





Latest generation CMOS technology.

Linea uses Teledyne DALSA's own advanced CMOS line scan sensors with high QE and low noise for better image quality. Available in resolutions from 2k to 16k, and now with color options.



Break through the GigE limit.

Teledyne DALSA's proprietary TurboDrive™ technology allows Linea GigE to deliver its full image quality at line rates up to 80 kHz—several times faster than competitors—with no changes to your GigE network.


Camera Link®

80 kHz
AT 8K RESOLUTION


GigE Vision + TurboDrive

80 kHz
With TurboDrive Enabled







Linea Features

Bilinear Color

See things in a whole new light with Linea's color option. Our bilinear color architecture maximizes color fidelity and image quality better than anything else at its price point, and still takes advantage of the incredible speed and throughput made possible with TurboDrive.

TurboDrive™

Teledyne DALSA's proprietary TurboDrive™ technology allows Linea GigE to deliver its full image quality at line rates up to 80 kHz—several times faster than competitors—with no changes to your GigE network.

Burst Mode

Linea's GigE models can take advantage of its high speed sensor by capturing and buffering high speed bursts faster than GigE allows.

Cycling Mode (GigE Versions only)

Linea GigE cameras let you change your settings every line and cycle through up to five different user-controlled configurations.

That means for every line you can use a different light source, lighting angle, exposure time, gain, and more to get more information from a single pass with a single camera.

HDR Imaging

Linea lets you combine short and long exposures to see details in bright and dark areas at the same time.

Multiple ROI

Linea gives you Multiple Regions of Interest to let you reduce your data transfer and processing load — all of which not only help boost performance but also reduce your system cost.




Typical Applications


Recycling


Postal Sorting


Railway, train, vehicle inspection


Pharmaceutical labels and Print inspection


Food Inspection


Material Inspection



Family Specifications

Camera Type Line Scan
Sensor Technology CMOS
Supported Interfaces GigE Vision, Camera Link, Camera Link HS, Gigabit Ethernet
Spectrum Capability Visible (400-700 nm), Near Infrared (700-1000 nm)
Features TurboDrive, T2IR, Power over Camera Link (PoCL)


Model Finder

Resolution

Show All

Spectrum

Show All

Data Interface

Show All

Pixel Size (μm)

Show All

Max Line Rate¹

Show All

Results:

Reset Filters
Showing 12 results
Product Resolution Spectrum Interface Pixel Size (μm) Max Line Rate¹ Price Compare Options
Linea Color 2k 26 kHz GigE
LA-GC-02K05B
2048 x 2 (Bilinear) Color Camera Link 7.04 26 kHz / 45 kHz with TurboDrive In Production Request Info Linea
Linea Color 4k 13 kHz GigE
LA-GC-04K05B
4096 x 2 (Bilinear) Color Camera Link 7.04 13 kHz / 45 kHz with TurboDrive In Production Request Info Linea
Linea Color 4k 48 kHz CL
LA-CC-04K05B
4096 x 2 (Bilinear) Color Camera Link 7.04 48 kHz In Production Request Info Linea
Linea Color 8k 48 kHz CL
LA-CC-08K05B
8192 x 2 (Bilinear) Color Camera Link 7.04 48 kHz In Production Request Info Linea
Linea Mono 16k 48 kHz CL
LA-CM-16K05A
16384 x 1 Mono Camera Link 3.5 48 kHz In Production Request Info Linea
Linea Mono 16K 71 kHz CLHS
LA-HM-16K07A
16384 x 1 Mono Camera Link HS 3.52 71 kHz In Production Request Info Linea
Linea Mono 2k 52 kHz GigE
LA-GM-02K08A
2048 x 1 Mono 1 GigE 7.04 52 kHz / 80 kHz with TurboDrive In Production Request Info Linea
Linea Mono 2k 80 kHz CL
LA-CM-02K08A
2048 x 1 Mono Camera Link 7.04 80 kHz In Production Request Info Linea
Linea Mono 4k 26 kHz GigE
LA-GM-04K08A
4096 x 1 Mono 1 GigE 7.04 26 kHz / 80 kHz with TurboDrive In Production Request Info Linea
Linea Mono 4k 80 kHz CL
LA-CM-04K08A
4096 x 1 Mono Camera Link 7.04 80 kHz In Production Request Info Linea
Linea Mono 8k 13 kHz GigE
LA-GM-08K08A
8192 x 1 Mono 1 GigE 7.04 13 kHz / 45 kHz with TurboDrive In Production Request Info Linea
Linea Mono 8k 80 kHz CL
LA-CM-08K08A
8192 x 1 Mono Camera Link 7.04 80 kHz In Production Request Info Linea
