Back-Illuminated sCMOS with Low Read Noise

Prime BSI

The Prime BSI sCMOS is a back-illuminated camera designed to provide a balance between high resolution imaging and sensitivity, with the combination of a 6.5 µm pixel and near-perfect 95% quantum efficiency making it an ideal solution for a range of applications. Also featuring CMS mode for ultra-low read noise of 1.0 electrons!



Sensitivity

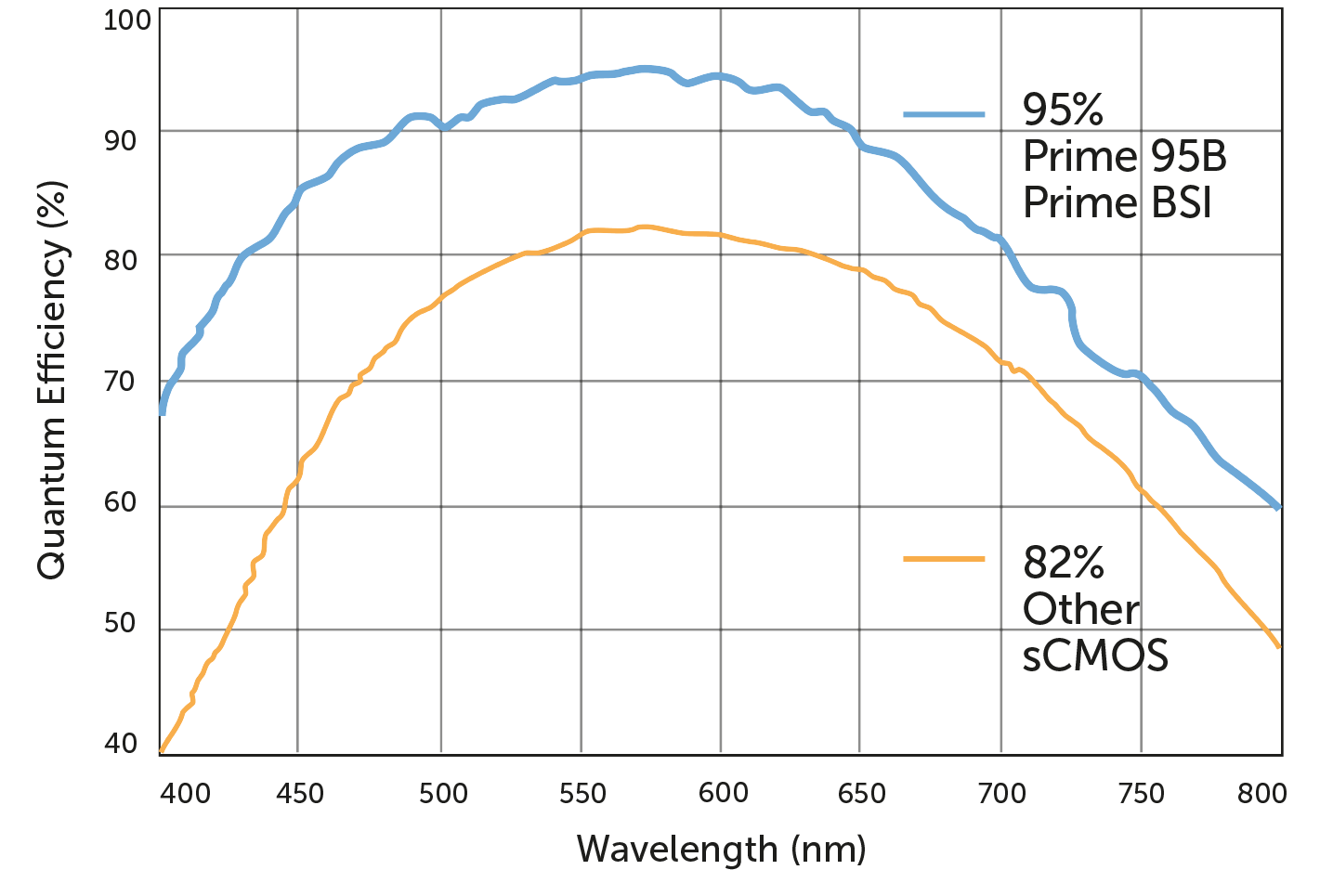

The Prime BSI back-illuminated sCMOS camera achieves a near-perfect 95% quantum efficiency. By bringing the light in from the back of the sensor, photons land directly onto the light receiving surface, maximizing light collecting capability. The Prime BSI combines 95% quantum efficiency with a low 1.0 e- read noise to deliver the most sensitive camera based on sCMOS technology at over 40 frames per second.





Resolution and Pixel Size

The Prime BSI features 6.5 μm pixels, the accepted standard for most live cell applications using 40x and 60x magnification. This pixel size provides highly detailed images across the imaging plane and is most suitable for the broadest range of microscope objectives.



Superior Background Quality

The Prime BSI features Pattern Noise Reduction Technology and Correlated Noise Reduction Technology to ensure that it delivers clean, pattern free images with minimal pixel defects, delivering improved image quality in low light conditions.





Advanced Triggering

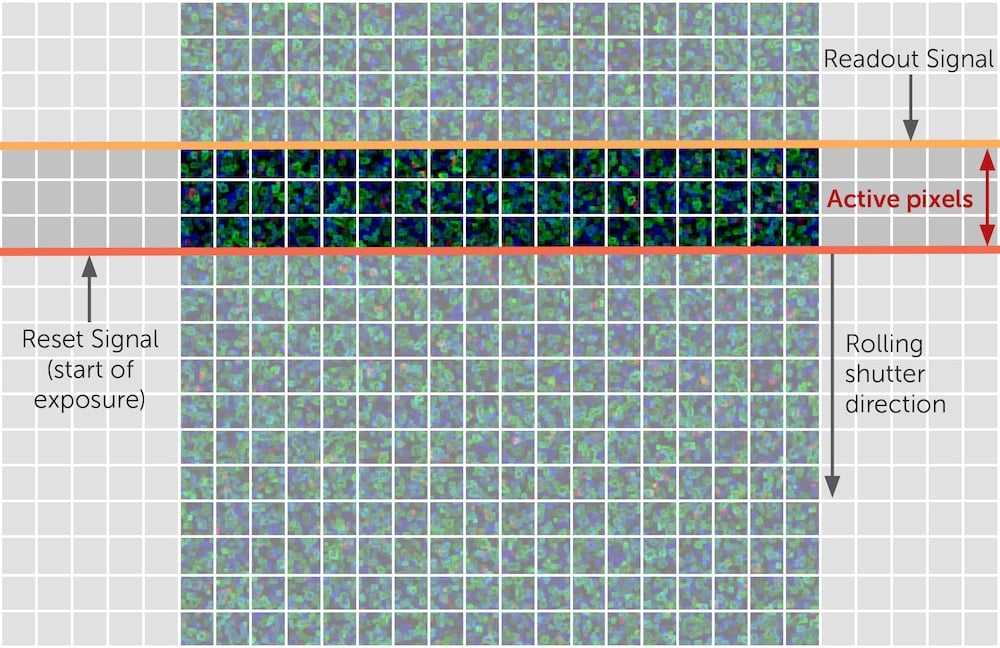

Programmable Scan Mode provides increased control over the rolling shutter exposure and read-out functionality of CMOS sensors for applications that require control over the line time.

Sequenced Multiple Acquisition Real Time Streaming (SMART) Streaming enables the Prime BSI to capture a continuous sequence of images while cycling through 16 pre-programmed exposure time values, delivering the fastest multi-channel acquisition times.



Advanced Features

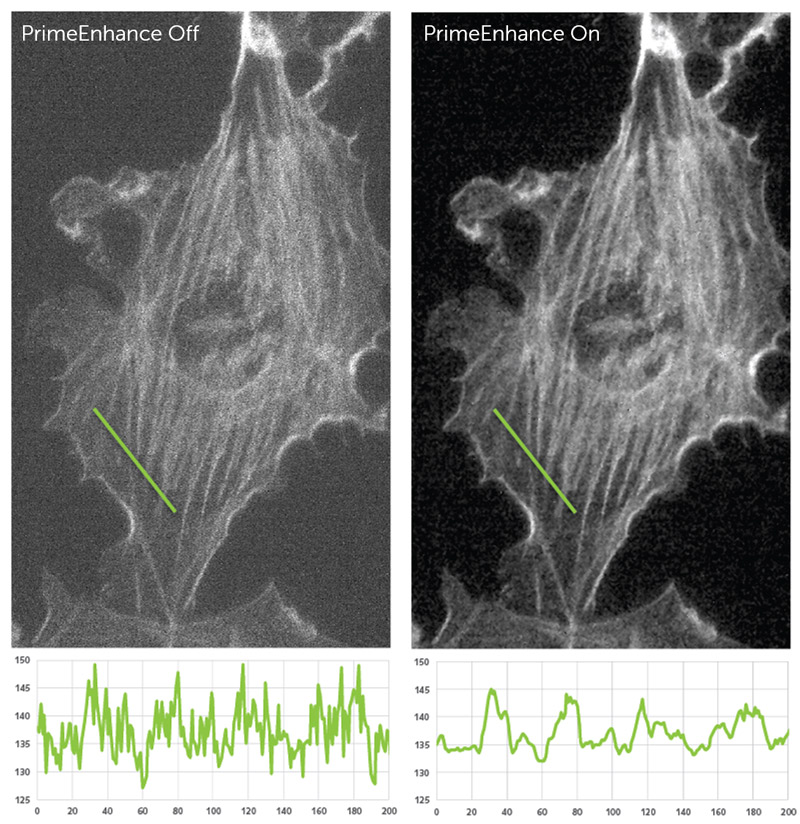

The Prime BSI offers PrimeEnhance active denoising which provides a real-time quantitative increase in the signal to noise ratio to maximize sensitivity at ultra-low light levels.




Family Specifications

Sensor Technology sCMOS
Quantum Efficiency 95%
Pixel Size 6.5 µm x 6.5 µm
Supported Interfaces PCIe and USB 3
Spectrum Capabilities UV (200-440 nm), Visible (400-700 nm), Near Infrared (700-1000 nm)
Read Noise (median) 1.0 e-


Model Finder

Product MP FPS Pixel Size (μm) QE Read Noise Sensor Price Compare Options
Prime BSI (PCIe)
01-PRIME-BSI-R-M-16-C-PCIE
4.1 63 fps 6.5 µm 95% 1.0 e⁻ GPixel Gsense 2020BSI In Production Request Info Prime BSI
Prime BSI (USB 3.0)
01-PRIME-BSI-R-M-16-C
4.1 63 fps 6.5 µm 95% 1.0 e⁻ GPixel Gsense 2020BSI In Production Request Info Prime BSI
