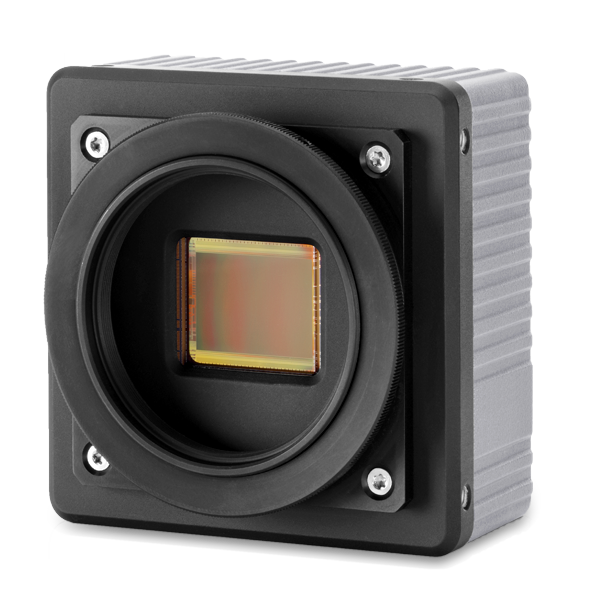

The Teledyne Adimec QUARTZ series are the most versatile line of high-performance cameras in the market, offering a wide range of capabilities for a variety of applications. Through Teledyne Adimec’s proprietary True Accurate Imaging® technology applied with state of the art global shutter CMOS image sensors, the QUARTZ series deliver an optimized combination of performance and measurement accuracy needed for specific system requirements.
The QUARTZ series are ideal for metrology and inspection equipment, and for moving from 2D to 3D inspection. QUARTZ cameras can be customized to meet your specific system application and architecture requirements.
Specifications
Highlighted
- Resolution
- 4096 x 3072
- Megapixels
- 12
- Max Frame Rate Standard
- 66
- Sensor Model
- CMV12000
- Pixel Size
- 5.5 µm x 5.5 µm
- Sensor Type
- CMOS
- Spectrum
- Mono, Color
- Data Interface
- CameraLink
Features
- Acquisition Modes
- Continuous or controlled, Burst mode
- High Dynamic Range
- Yes (90 dB)
- Removable Cover Glass
- No
Performance
- Digitization Bit depth
- 8-bit, 10-bit
- Dynamic Range
- 60 dB (>54 dB linear)
Physical
- Connector
- 2x 3M MDR 26
- Dimensions [W x H x L]
- 80 mm x 80 mm x 41.6 mm
- GPIO
- Hirose 4 pin HR10A-7R-4SB
- Mass
- 400 g
- Operating Humidity
- 20% - 80% non-condensing
- Optical Format
- APS-C (28.1 mm)
- Power Requirements
- 10.2 – 27.6 Vdc
- Sensor Shutter Type
- Global Shutter
- Sensor Temperature
- 0 °C to +40 °C
- Storage Humidity
- 5% - 95% non-condensing
- Storage Temperature
- -25°C to +65°C
Compliance & Certifications
- Compliance
- ROHS, ESD, Workmanship
- Verification
- Every camera is 100 % tested on all specifications
