Large Area CMOS X-Ray

Rad-icon

The Rad-icon product family leverages our advanced CMOS image sensing technology, which enables the delivery of low-dose x-ray images and yields higher image quality than aSi flat panels and image intensifier devices. Rad-icon cameras are capable of frame rates up to 30 fps, and communicate via CameraLink data cable or a standard Cat 6e over lengths up to 100 m.



Great Performance, Ease of Use

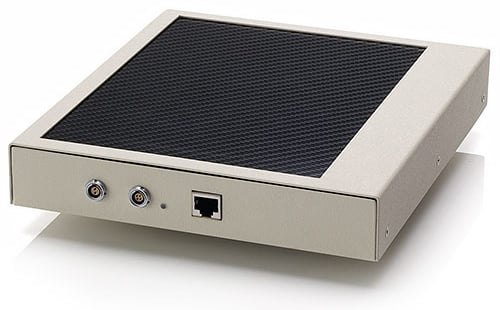

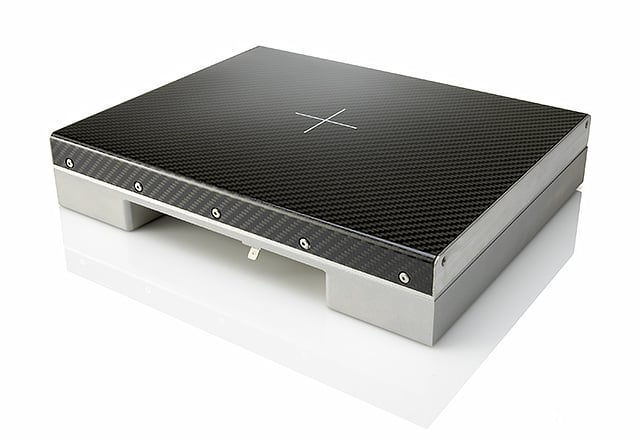

Teledyne DALSA’s Rad-icon product family of large-area digital x-ray cameras offers users a high-speed, high-performance x-ray imaging detector with a fast, reliable PC interface (either GigE or CameraLink) for easy integration.





Superior Large-Area

Non-Destructive Testing




Cutting-edge Technology Delivers Cutting-edge Results

The Rad-icon product family leverages our advanced CMOS image sensing technology, which enables the delivery of low-dose x-ray images and yields higher image quality than aSi flat panels and image intensifier devices. Rad-icon cameras are capable of frame rates up to 30 fps, and communicate via CameraLink data cable or a standard Cat 6e over lengths up to 100 m.







Flexible and Adjustable for Varied Applications

Rad-icon detectors are available with different Gd2O2S (Gadox) scintillator options to address a range of resolution and sensitivity requirements. The camera interface allows easy access to features such as adjusting the frame rate, single and multiple frame acquisitions, and control of advanced timing modes.

Intuitive, Powerful Software

Each Rad-icon ships with user-friendly software tools for stand-alone operation or easy integration with your application software.




Features

  • Large active area: up to 30 × 30 cm
  • 5 or 10 lp/mm resolution (99 or 49.5 µm pixels)
  • Gigabit Ethernet or CameraLink interface
  • Energy range from 10 to 225 kV
  • Ready-to-run software and drivers


Applications

  • Nondestructive testing
  • Automotive inspection
  • Weld inspection
  • Industrial computed tomography (CT)


Model Finder

Product Active Area Resolution Camera Interface Pixel Size Frame Rate Price Compare Options
Rad-icon 0720
SB1739
68 x 204 mm 1548 x 2064 GigE Vision 99 µm 66 fps In Production Request Info Rad-icon
Rad-icon 0723
SB1774
64 x 228 mm 1300 x 4608 GigE Vision 49.5 µm 30 fps In Production Request Info Rad-icon
Rad-icon 0723HS
SB1806
64 x 228 mm 1300 x 4608 GigE Vision 49.5 µm 50 fps In Production Request Info Rad-icon
Rad-icon 1520
SB1504
204 x 153 mm 1548 x 2064 GigE Vision 99 µm 16 fps In Production Request Info Rad-icon
Rad-icon 1523
SB1711
146 x 228 mm 2940 x 4608 GigE Vision 49.5 µm 15 fps In Production Request Info Rad-icon
Rad-icon 1523HS
SB1808
146 x 228 mm 2940 x 4608 GigE Vision 49.5 µm 20 fps In Production Request Info Rad-icon
Rad-icon 2022
SB1533
204 x 221 mm 2064 x 2236 Camera Link 99 µm 30 fps In Production Request Info Rad-icon
Rad-icon 2329
SB1593
228 x 291 mm 4608 x 5890 GigE Vision 49.5 µm 2 fps In Production Request Info Rad-icon
Rad-icon 2329HS
SB1794
228 x 291 mm 4608 x 5890 GigE Vision 49.5µm 20 fps In Production Request Info Rad-icon
Rad-icon 3030
SB1521
306 x 306 mm 3096 x 3100 Camera Link 99 µm 30 fps In Production Request Info Rad-icon
Rad-icon 3030HS
SB1785
306 x 306 mm 3096 x 3096 GigE Vision 99 µm 50 fps In Production Request Info Rad-icon
