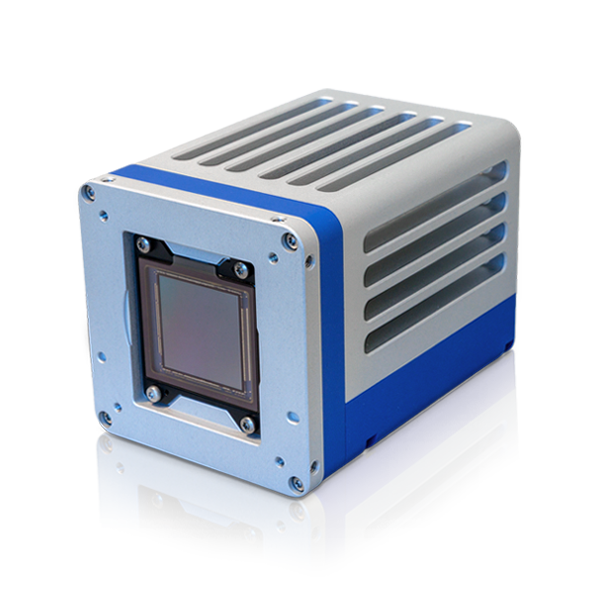

The SAPPHIRE series combines the highest resolutions at maximum frame speeds together with a superior image quality supporting your demanding inspection equipment. High image quality is guaranteed through factory calibrated camera uniformity corrections, multi-set Flat Field Corrections (FFC) for in-system non-uniformities and factory calibrated defect pixel corrections.
The SAPPHIRE series simplifies system design through optimal thermal designs and tool matching support with repeatable cameras using the CoaXPress interface. SAPPHIRE cameras can be customized to meet your specific system application and architecture requirements.
Specifications
Highlighted
- Part Number
- S-105A110
- Resolution
- 10248 x 10248
- Megapixels
- 105
- Max Frame Rate Standard
- 110
- Sensor Model
- Sony IMX927
- Pixel Size
- 2.74 μm x 2.74 μm
- Sensor Type
- CMOS
- Shutter type
- Global shutter
- Spectrum
- Mono, Color
- Data Interface
- CoaXPress-over-Fiber
Features
- Acquisition Modes
- Continuous or controlled
- High Dynamic Range
- No
- Removable Cover Glass
- No
- Triggering Modes
- Internal or external
Performance
- Dark Noise
- 4.5 e-
- Digitization Bit depth
- 8-bit, 10-bit, 12-bit
- Dynamic Range
- 66 dB
- Full Well Capacity (Qsat)
- 9 ke-
Physical
- Connector
- 1x QSFP28 port
- Dimensions [W x H x L]
- 80 mm x 80 mm x 115 mm
- GPIO
- Hirose 12 pin HR10A-10R-12P
- Mass
- 912 g
- Operating Humidity
- 20% - 80% non-condensing
- Optical Format
- 39.7 mm
- Power Consumption
- 25 W
- Power Requirements
- 12-24 Vdc
- Sensor Shutter Type
- Global Shutter
- Sensor Temperature
- +5°C to +60°C
- Storage Humidity
- 5% - 95% non-condensing
- Storage Temperature
- -25°C to +65°C
Compliance & Certifications
- Compliance
- ROHS, ESD, Workmanship
- Verification
- Every camera tested 100%
