Tiny Size, Low Power & Cost Efficient

Topaz

Topaz is a series of CMOS image sensors from Teledyne e2v that will raise your expectations of low-cost performance. In their tiny package, Topaz sensors rely on state-of-the-art low noise, global shutter technology to offer powerful solutions and enable compact mobile designs for many applications. Available at an attractive price point, Topaz sensors have a well thought-out design to minimize your overall system cost including compatibility with small optics, MIPI CSI-2 interface, and flexible PCB design.

Watch Video


Ideal for Mobile Applications

The Topaz series of industrial CMOS sensors include 2MP (1920 x 1080) and 1.5MP (1920 x 800) resolution devices. The sensors use state-of-the-art low noise, global-shutter pixel technology to offer powerful solutions and enable compact mobile designs for many applications.





Tiny Footprint

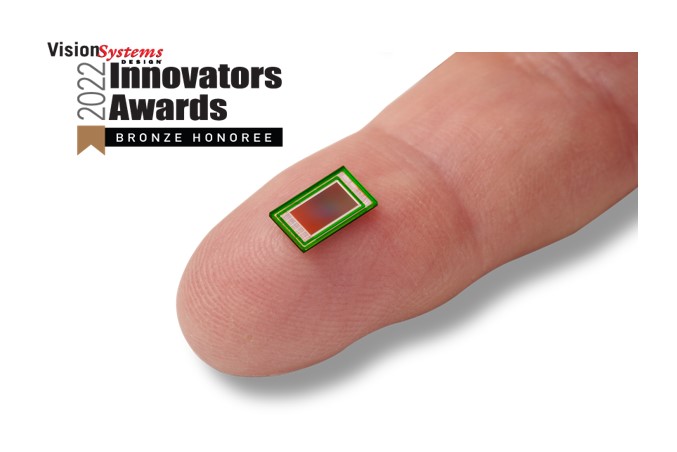

Housed in a tiny 4.45 mm wide Chip Scale Package (CSP), the Topaz sensors have an optical array centre which precisely matches the mechanical centre of the package, allowing for a slim camera design. This makes them particularly suitable for miniature OEM barcode engine designs, mobile terminals and sleds, IoT, contactless authentication systems, wearable devices, drones and robotics.



Featuring a Low-Noise Global Shutter Pixel

The Topaz sensors have a 1/3” optical format, which is made possible due to the small 2.5µm global shutter pixel that employs in-pixel CDS (correlated double sampling), and advanced dual light-guides to achieve good SNR at low-light, with low crosstalk for crisp images.




Typical Applications


Barcode scanners


Factory automation


Automated Optical Inspection (AOI)


Robotics


Logistics


Professional drones (e.g smart farming)


IoT edge devices


Augmented Reality / Virtual Reality


Wearable security (body camera)



Model Finder

Product Resolution Pixel Pitch (µm) Shutter Type Frame/Line Rate Price Compare Options
Topaz 1.5M (with foil)
EV2S1M5B-PM23001-T
1.5M 2.5 Global 130 fps In Production Request Info Topaz
Topaz 2M (with foil)
EV2S02MB-PM23001-T
2M 2.5 Global 100 fps In Production Request Info Topaz

Media gallery

Teledyne e2v's Topaz CMOS Sensor - Ideal for Scanning Applications
Teledyne e2v's Topaz CMOS Sensor - Ideal for Scanning Applications
The Topaz CMOS Sensor Family - ideal for logistics applications
The Topaz CMOS Sensor Family - ideal for logistics applications
