2,048 Measurements / profile

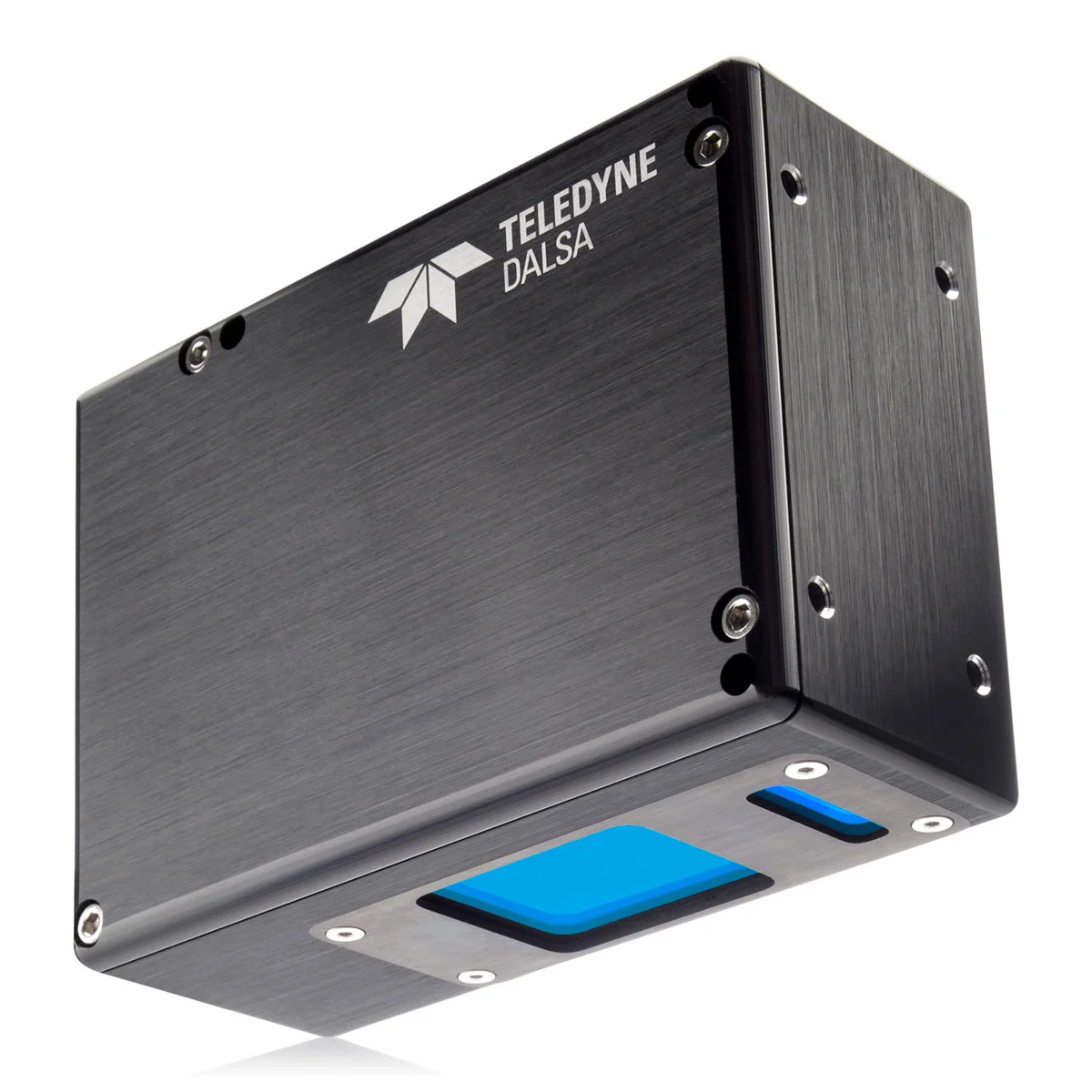

Z-Trak2

Z-Trak™2 is a new family of 3D profile sensors built on Teledyne’s 3D image sensor technology, ushering in a new era of 5GigE 3D profile sensors for high-speed, in-line 3D applications.

Watch Video




High-speed, in-line height measurement and inspection

Z-Trak™2 is a new family of 3D profile sensors built on Teledyne Imaging’s 3D image sensor technology, ushering in a new era of 5GigE 3D profile sensors for high-speed, in-line 3D applications.

Models deliver scan speeds of up to 45,000 profiles per second and features built-in HDR and reflection compensation algorithms to handle surfaces with varying degrees of reflectivity in a single scan. This delivers in-line height measurements for inspection, detection, identification, and guidance in electronics, semiconductor, automotive and factory automation markets segments.






Delivering scan speeds of up to 45,000 profiles/sec

Offering 2K points per profile, all Z-Trak2 models are factory calibrated and offered with either blue or red eye safe lasers to suit various surface properties and operating environments. All sensors are housed in IP67 enclosures for harsh environments and come bundled free with Teledyne Imaging’s Sherlock 8.1 —a point-and-click, rapid application development software package, Sapera Processing RTLs and Sapera LT SDK.

Features Include:

  • Up to 2K points/profile; scan rate up to 45K profiles/sec
  • Built-in single frame HDR
  • 360° inspection and occlusion removal
  • Handles varying surface reflectivity to deliver consistent results
  • Multi-Sensor Synchronization using single, low cost setup
  • IP67 enclosure for harsh operating conditions
  • Sherlock 8.1 for rapid application deployment
  • Red and blue models
  • Reflection compensation algorithms
  • Diffused or spurious topologies
  • 1, 2.5 and 5GigE interface



Z-Trak2 for single and multi-sensor configurations

  • Combine up to 16 sensors for 360° measurements and inspection
  • Unified measurement space
  • Single cable synchronization
  • Advanced laser sequencing using heterogeneous models to improve accuracy










Example 1 Z-Trak 3D Apps Studio microchip lead inspection

Z-Trak 3D Apps Studio

Z-Trak™ 3D Apps Studio is a suite of software tools developed for in-line 3D machine vision applications. Designed to work with Teledyne DALSA’s Z-Trak family of laser profilers, it simplifies 3D measurement and inspection tasks on production lines. Capable of handling 3D scans of objects with varied surface types, sizes and geometric features, Z-Trak 3D Apps Studio is ideal for factory automation applications across a wide range of industries including electric vehicles (EV batteries, motor stators etc.), automotive, electronics, semiconductors, packaging, logistics, metal fabrication, lumber, and many more. Z-Trak 3D Apps Studio is accessible from Sherlock 8.30.

Learn more




Key Markets & Applications

Inspection, detection, identification, and guidance in:

  • Electronics
  • Semiconductor
  • Automotive
  • Factory automation
  • Logistics
  • Robotics
  • Wood







How exactly does 3D imaging work?

There are a number of techniques available for 3D imaging. The Z-Trak series of 3D laser profilers uses a laser triangulation technique to deliver high resolution height measurements. Z-Trak emits a laser onto an object of interest; the reflection's position in the sensor's field of view allows the scanner to triangulate the point in space at which the laser hits the object.

The diagram at the left illustrates the terms we use to specify Z-Trak's performance.

Download our 3D Laser Triangulation Tech Primer




Wondering if 3D laser profile inspection can work for you? Finding out is simple.

Our Z-Trak Application Lab is here – A dedicated lab for scanning materials for inspection and learning if 3D laser profiling will provide value.

  1. Send us your samples.
  2. We scan them using our Z-Trak 3D laser profiler.
  3. You get the results.

We are now accepting your sample materials to run through our Z-Trak Lab for free testing.

Tell me more




Model Finder

Product Max Object Height Stand Off Distance [mm] Object Width [mm] Laser Wavelength Repeatability (+/-μm) Price Compare Options
Z-Trak2 S2K-0004-B3
Z-Trak2 S2K-0004-B3
4mm 33.15 15.2 405nm 0.30- 0.30 In Production Request Info Z-Trak2
Z-Trak2 S2K-0015-B3
Z-Trak2 S2K-0015-B3
15mm 32.7 32 405nm 0.50- 0.50 In Production Request Info Z-Trak2
Z-Trak2 S2K-0030-B3
Z-Trak2 S2K-0030-B3
30mm 43.7 72 405nm 0.60- 0.80 In Production Request Info Z-Trak2
Z-Trak2 S2K-0100-B3
Z-Trak2 S2K-0100-B3
100mm 64.5 185 405nm 1.00- 1.50 In Production Request Info Z-Trak2
Z-Trak2 S2K-0100-R3
Z-Trak2 S2K-0100-R3
100mm 64.5 185 660nm 1.50- 2.00 In Production Request Info Z-Trak2
Z-Trak2 S2K-0150-B3
Z-Trak2 S2K-0150-B3
150mm 135 228 405nm 2.00- 3.00 In Production Request Info Z-Trak2
Z-Trak2 S2K-0150-R3
Z-Trak2 S2K-0150-R3
150mm 135 228 660nm 2.00- 3.00 In Production Request Info Z-Trak2
Z-Trak2 S2K-0250-B3
Z-Trak2 S2K-0250-B3
250mm 175 325 405nm 3.00- 4.00 In Production Request Info Z-Trak2
Z-Trak2 S2K-0250-R3
Z-Trak2 S2K-0250-R3
250mm 175 325 660nm 3.00- 4.00 In Production Request Info Z-Trak2
Z-Trak2 S2K-0300-B3
Z-Trak2 S2K-0300-B3
300mm 195 508 405nm 4.00- 8.00 In Production Request Info Z-Trak2
Z-Trak2 S2K-0300-R3
Z-Trak2 S2K-0300-R3
300mm 195 508 660nm 4.00- 8.00 In Production Request Info Z-Trak2
Z-Trak2 S2K-0400-B3
Z-Trak2 S2K-0400-B3
400mm 463 659 405nm 6.00- 20.00 In Production Request Info Z-Trak2
Z-Trak2 S2K-0400-R3
Z-Trak2 S2K-0400-R3
400mm 463 659 660nm 6.00- 20.00 In Production Request Info Z-Trak2
Z-Trak2 S2K-0650-B3
Z-Trak2 S2K-0650-B3
650mm 558 1211 405nm 8.00- 25.00 In Production Request Info Z-Trak2
Z-Trak2 S2K-0650-R3
Z-Trak2 S2K-0650-R3
650mm 558 1211 660nm 8.00- 25.00 In Production Request Info Z-Trak2
Z-Trak2 V2K-0004-B3
Z-Trak2 V2K-0004-B3
4mm 33.15 15.2 405nm 0.30- 0.30 In Production Request Info Z-Trak2
Z-Trak2 V2K-0015-B3
Z-Trak2 V2K-0015-B3
15mm 32.7 32 405nm 0.50- 0.50 In Production Request Info Z-Trak2
Z-Trak2 V2K-0030-B3
Z-Trak2 V2K-0030-B3
30mm 43.7 72 405nm 0.60- 0.80 In Production Request Info Z-Trak2
Z-Trak2 V2K-0100-B3
Z-Trak2 V2K-0100-B3
100mm 64.5 185 405nm 1.00- 1.50 In Production Request Info Z-Trak2
Z-Trak2 V2K-0100-R3
Z-Trak2 V2K-0100-R3
100mm 64.5 185 660nm 1.50- 2.00 In Production Request Info Z-Trak2
Z-Trak2 V2K-0150-B3
Z-Trak2 V2K-0150-B3
150mm 135 228 405nm 2.00- 3.00 In Production Request Info Z-Trak2
Z-Trak2 V2K-0150-R3
Z-Trak2 V2K-0150-R3
150mm 135 228 660nm 2.00- 3.00 In Production Request Info Z-Trak2
Z-Trak2 V2K-0250-B3
Z-Trak2 V2K-0250-B3
250mm 175 325 405nm 3.00- 4.00 In Production Request Info Z-Trak2
Z-Trak2 V2K-0250-R3
Z-Trak2 V2K-0250-R3
250mm 175 325 660nm 3.00- 4.00 In Production Request Info Z-Trak2
Z-Trak2 V2K-0300-B3
Z-Trak2 V2K-0300-B3
300mm 195 508 405nm 4.00- 8.00 In Production Request Info Z-Trak2
Z-Trak2 V2K-0300-R3
Z-Trak2 V2K-0300-R3
300mm 195 508 660nm 4.00- 8.00 In Production Request Info Z-Trak2
Z-Trak2 V2K-0400-B3
Z-Trak2 V2K-0400-B3
400mm 463 659 405nm 6.00- 20.00 In Production Request Info Z-Trak2
Z-Trak2 V2K-0400-R3
Z-Trak2 V2K-0400-R3
400mm 463 659 660nm 6.00- 20.00 In Production Request Info Z-Trak2
Z-Trak2 V2K-0650-B3
Z-Trak2 V2K-0650-B3
650mm 558 1211 405nm 8.00- 25.00 In Production Request Info Z-Trak2
Z-Trak2 V2K-0650-R3
Z-Trak2 V2K-0650-R3
650mm 558 1211 660nm 8.00- 25.00 In Production Request Info Z-Trak2

Media gallery

Teledyne DALSA Z-trak2 3D レーザープロファイラー
Teledyne DALSA Z-trak2 3D Laser Profiler JP
Z-Trak Application Lab
Z-Trak Application Lab

Resources & Support

Application Overview

3D Imaging

Read the Story

Application Overview

Battery Inspection

Read the Story

Warranty & RMA

Teledyne DALSA Warranty Information

Read the Story

Below are assets shared by all models of this product family.

For model-specific assets, select an option in the Model Finder above.

You must be logged in to download software or firmware. Please sign in or create an account here.

Sapera LT SDK (full version) - Free Download

Software Download

Last Updated: November 14, 2024

Version: 9.00

Download

Sherlock 8.30 Demo

Software Download

Last Updated: November 26, 2024

Version: 8.30.00.327

Download

Z-Trak2_STD_Firmware_2CA24.122

Firmware Download

Last Updated: October 29, 2024

Version: 1.20.00.0122

Download

Below are assets shared by all models of this product family.

For model-specific assets, select an option in the Model Finder above.

Z-Trak2 LP2 Material Composition Product Declaration

Certification

Download

Z-Trak2 S-2K-Series Datasheet

Datasheet

Last Updated: October 17, 2024

Download

Z-Trak2 V-2K-Series Datasheet

Datasheet

Last Updated: October 17, 2024

Download
