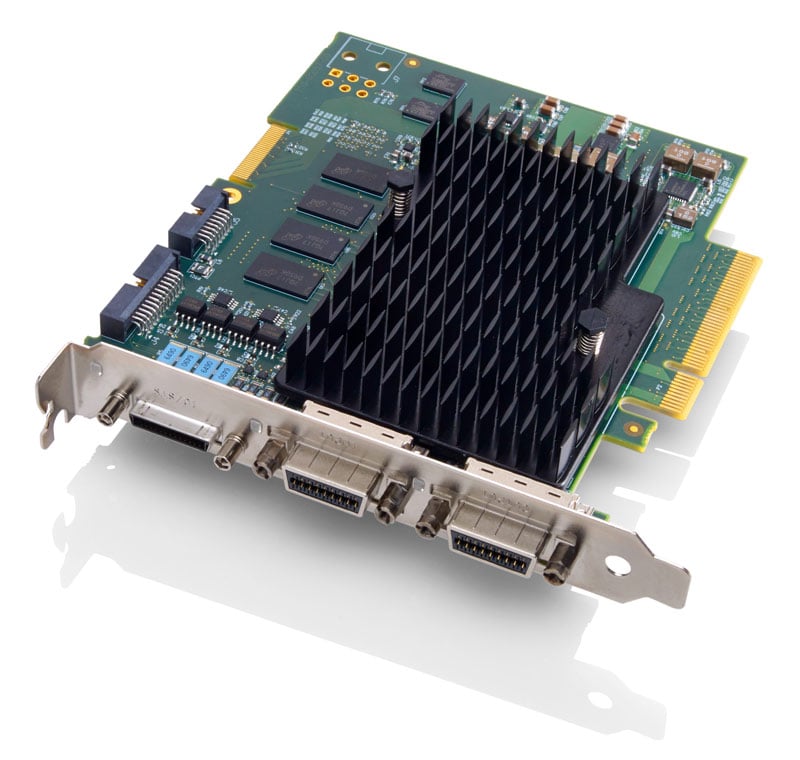

PCI Express Gen2 Platform

Xtium Family

The Xtium series delivers higher bandwidth to sustain Camera Link 80-Bit modes over longer cable distances and supports a wide variety of area and line scan color and monochrome cameras, all in a compact, single slot solution.







PCIe Gen 2 Platform Key Features

  • Supports PCI Express Rev 2.0 x4 or higher, backwards compatible with PCIe Rev 1.10 slots
  • Up to 512MB of high-speed image memory
  • Single slot solution with reconfigurable camera control and general purpose input/outputs













Free Acquisition and Control Software Libraries

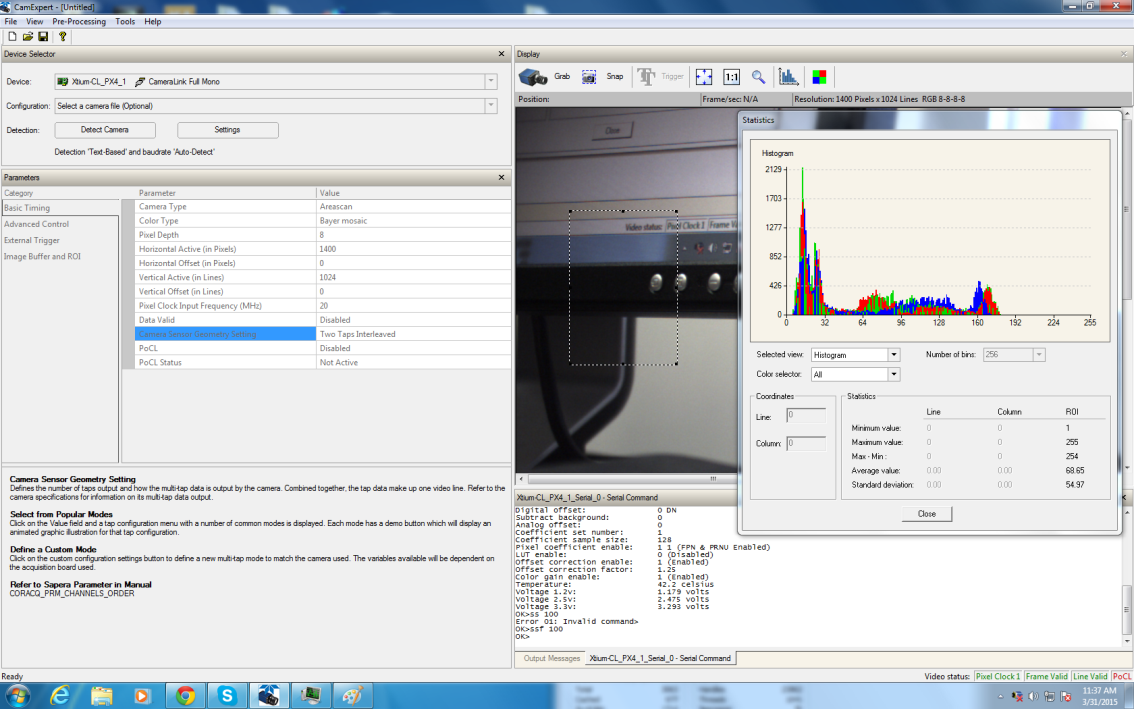

The Xtium and Xtium2 series of frame grabbers are fully supported by Sapera LT SDK. Sapera LT SDK is an image acquisition and control software development toolkit (SDK) for Teledyne DALSA'S cameras and frame grabbers. Hardware independent by nature, Sapera LT offers a rich development ecosystem for machine vision OEMs and system integrators. Sapera LT SDK supports image acquisition from cameras and frame grabbers based on standards including GigE Vision™, Camera Link®, CoaXPress®, and Camera Link HS™.

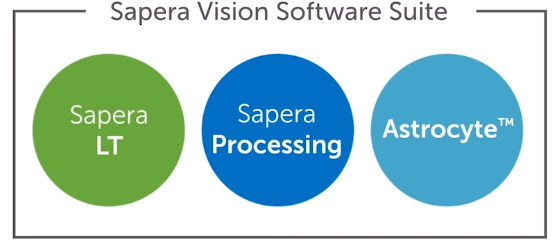

Fully supported by Sapera™ vision SDK

When combined with a compatible Teledyne DALSA frame grabber, standard Sapera Processing run-time licenses are offered at no additional charge. Sapera Processing is at the heart of Sapera Vision Software, delivering a suite of image processing and analysis functions. These functions include over 400 image processing primitives, barcode tools, pattern matching tools (both area-based and edge-based), OCR, color and blob analysis, measurement, and calibration tools for perspective and lens correction. The standard tools run-time license includes access to image processing functions, area based (normalized correlation based) template matching tools, blob analysis, and lens correction tools.








Model Finder

Product Bits Per Pixel Board Interface Frame Buffer Pixel Clock Price Compare Options
Xtium-CL MX4
Xtium-CL-MX4
8, 10, 12, 14 and 16-bit/pixel Camera Link 512 MB 20 to 85 MHz In Production Request Info Xtium Family
Xtium-CLHS PX4
Xtium-CLHS-PX4
Mono8, Mono10, Mono12, and Mono16 Camera Link HS 1024 MB up to 7 x 6.25 Gbs In Production Request Info Xtium Family
Xtium-CLHS PX8
Xtium-CLHS PX8
Mono: 8, 10, or 12-bit/pixel; RGB: 8-bit/pixel/color Camera Link HS 1024 MB up to 7 x 6.25 Gbs In Production Request Info Xtium Family

Resources & Support

Warranty & RMA

Teledyne DALSA Warranty Information

Read the Story

Below are assets shared by all models of this product family.

For model-specific assets, select an option in the Model Finder above.

You must be logged in to download software or firmware. Please sign in or create an account here.

Cognex Adapter for Teledyne DALSA Frame Grabbers & GigE Vision Cameras

Driver

Last Updated: March 03, 2020

Version: 1.20

Download

Below are assets shared by all models of this product family.

For model-specific assets, select an option in the Model Finder above.

Advanced Image Capture Acquisition and Processing Machine Vision Brochure

Brochure

Download

Application Note - Using Xtium2-CL MX4 and Xtium-CL MX4 interchangeably

Application Note

Download

Trigger-to-Image Reliability FAQ

User Manual

Download

Trigger-to-Image Reliability Framework Primer

Application Note

Download

Xtium-CL PX4 User Manual

User Manual

Download
